Eaton UPS lineinteractive

1440 VA, 1440 W, Line-interactive UPS
Ratings
Delivered between Wed, 10.12. and Wed, 4.2.
free shipping

Product details

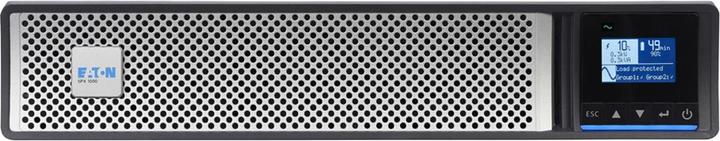

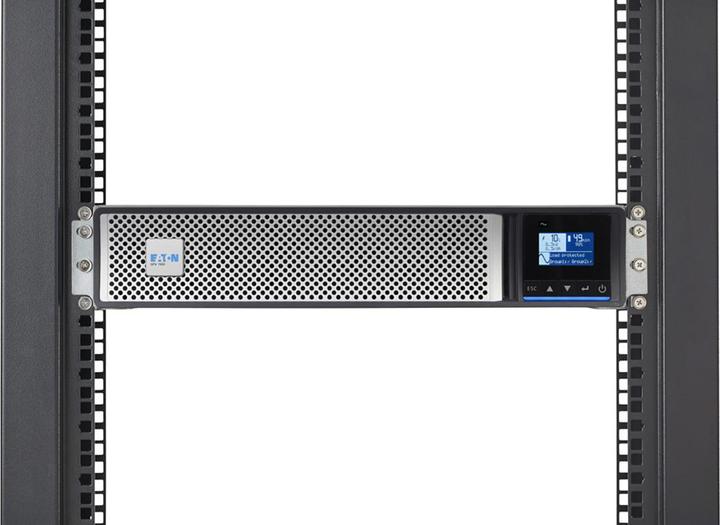

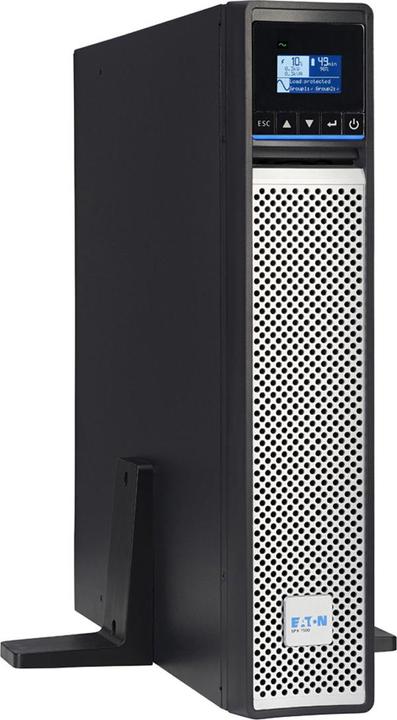

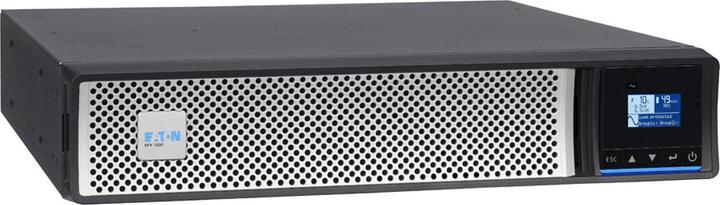

The Eaton 5PX 1500 RT2U G2 is a line-interactive uninterruptible power supply (UPS) specifically designed to protect servers, storage systems, VoIP devices, and network equipment. With a high efficiency and energy performance confirmed by the Energy Star 2.0 certification, this model delivers outstanding performance for IT managers. The UPS provides an output power of 1500 VA/1500 W, allowing for the protection of a wide range of devices. The 5PX Gen2 ensures a high-quality output signal in battery operation, suitable for sensitive devices like active PFC servers. Additionally, the UPS offers a variety of connection options, including USB and RS-232, to enable flexible integration into existing systems. Its compact design and rack-mounting capability make the 5PX Gen2 an ideal solution for server rooms and other critical applications.

  • Excellent efficiency with a 99% efficiency rating in battery operation
  • Provides 11% more real power compared to other UPS systems
  • Versatile connection options, including USB and RS-232
  • Optimal size/runtime ratio for battery configurations
  • Noise level of a maximum of 45 dB for quiet operation.

Key specifications

Operating time at full load
5.50 min
Model
19" rack
Scope of application
Network cabinet
Plug type
NEMA L5-15P
Item number
17476248

General information

Manufacturer
Eaton
Category
UPS
Manufacturer no.
5PX1500RTG2
Release date
22.9.2021
Sales rank in Category UPS
43 of 2343

UPS properties

UPS type
Line-interactive UPS
Power output
1440 W
Output power capacity
1440 VA
Model
19" rack
Rack Unit
2U

Application range

Scope of application
Network cabinet

Connector plug

Plug type
NEMA L5-15P

Connections

Connections
RS-232, USB
Data ports
RS232C in (1x)

Mains supply properties

input voltage
120 V
output voltage
120 V
Input frequency
50 Hz
Output frequency
50 Hz
Efficiency battery operation
99 %

Operating conditions

Maximum operating temperature
40 °C
Operating temperature
0 - 40 °C
Max. noise level
45 dB

Battery properties

Battery category
Device batteries
Battery
Battery
Battery type
Lead–acid battery
Operating time at full load
5.50 min
Operating time at half load
10.50 min

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Base columns, Cable set, RM Kit, Software, UPS
Items per sales unit
1 x

Product dimensions

Height
86.40 mm
Weight
40.40 kg
Width
437 mm
Length
447 mm

30-day right of return
24 Months Warranty (Bring-in)
