Eaton 9SX 1500i Rack2U

1500 VA, 1350 W, Online double converter UPS
Ratings
BrandMore from Eaton
Delivered between Thu, 10.7. and Fri, 25.7.
Only 1 item in stock at supplier
free shipping

Product details

The Eaton 9SX UPS offers high availability, flexibility, and advanced protection for infrastructure, industry, medical technology, IT, network, storage, and telecommunications applications. It provides online double-conversion protection in a versatile rack/tower format with an efficiency of up to 95%.

Key specifications

Operating time at full load
5 min
Model
19" rack
Scope of application
Server room, Workplace + home use
Plug type
C13, C14
Item number
10113066

General information

Manufacturer
Eaton
Category
UPS
Manufacturer no.
9SX1500IR
Release date
13.11.2018
Sales rank in Category UPS
60 of 2631
External links
Manufacturer's site (de)

UPS properties

UPS type
Online double converter UPS
Power output
1350 W
Output power capacity
1500 VA
Model
19" rack
Rack Unit
2U
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protection

Application range

Scope of application
Server room, Workplace + home use

Connector plug

Plug type
C13, C14

Connections

Connections
USB
Data ports
RS-232 (1x)

Mains supply properties

input voltage
190 - 276 V
output voltage
230 V
Max. input current
0.42 A
Input frequency
40 / 70 Hz
Output frequency
50 - 60 Hz

Operating conditions

Maximum operating temperature
40 °C
Operating temperature
0 - 40 °C
Max. noise level
43 dB

Battery properties

Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
4 x
Battery weight per cell
2700 g
Voltage
190 V

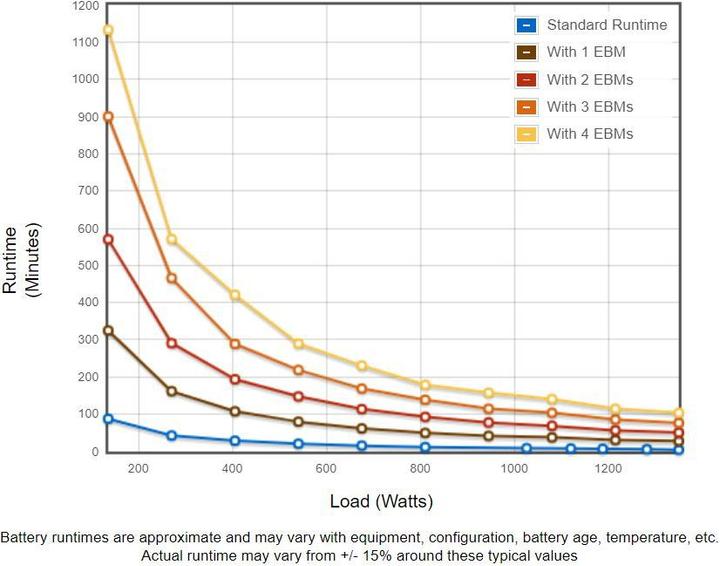

Operating time at full load
5 min
Operating time at half load
16 min

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 9SX UPS, 1x power cable, 2x consumer connectionka
Items per sales unit
1 x

Product dimensions

Height
86.50 mm
Weight
18.40 kg
Width
438 mm
Length
438 mm

Package dimensions

Length
57.50 cm
Width
55.50 cm
Height
23.50 cm
Weight
24.19 kg

30-day right of return
24 Months Warranty (Bring-in)
