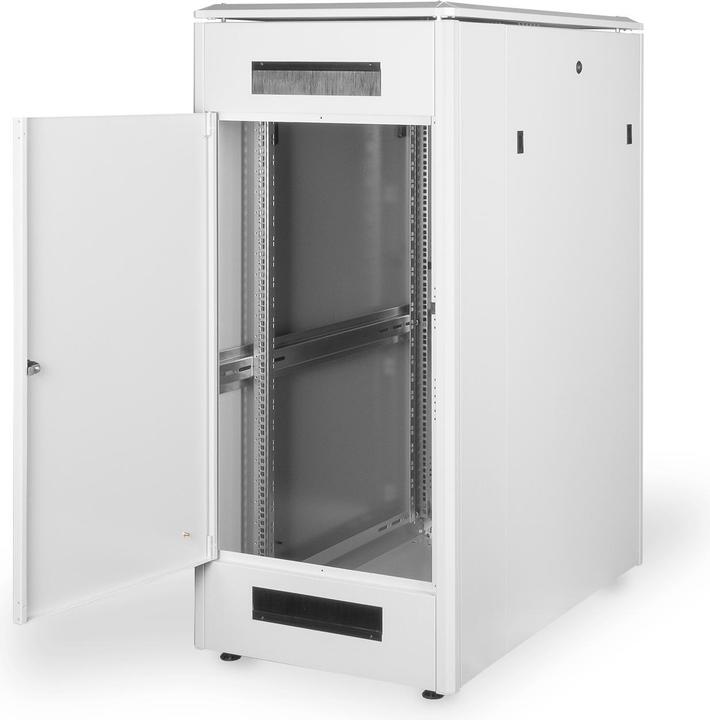

Digitus DN-19 26U-6/10-1 Network cabinet Unique Series

The DIGITUS® Unique Series is designed, conceived, and developed to meet the high demands of IT infrastructure.

The top is prepared for the installation of a fan unit and features a removable cover. The locking system includes a swivel handle on the front door (designed to accommodate a profile half-cylinder; adapter included). A sliding cable entry with a foam rubber seal is located at the bottom.

The network cabinets of the Unique Series have been developed for particularly comfortable and flexible network cabling. Brush-equipped entries in the top and bottom (from 26U and 800 mm cabinet width), a sliding entry in the bottom chassis with a foam rubber seal, and rear brush strips above and below the back door (from 26U) allow for versatile use in various application scenarios. Vertical cable management channels with a cover, installed next to the profile rails (from 800 mm cabinet width), complete the design. A recessed, removable cover with ventilation slots ensures improved air circulation. This sits above a special construction for easy installation of a fan module.

Inside, there are two pairs of galvanized 483 mm (19") profile rails labeled with height units that can be read in both directions. They are adjustable in depth and connected with additional depth braces in the cabinet. Each cabinet is a robust steel construction made of up to 1.5 mm thick steel sheet. The finish is applied as an electrostatic powder coating in standard colors Grey (RAL 7035) and Black (RAL 9005). Modular lockable and removable side panels and doors enhance accessibility. A door hinge change can be made. Furthermore, due to the disassemblable construction, the cabinets can be completely dismantled if necessary.
