Product details
Overview
Description

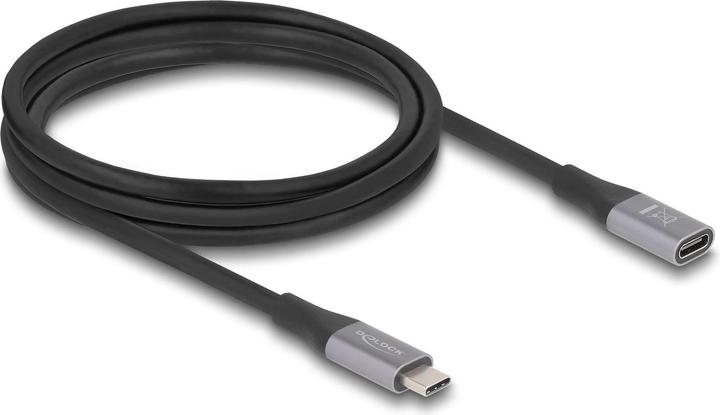

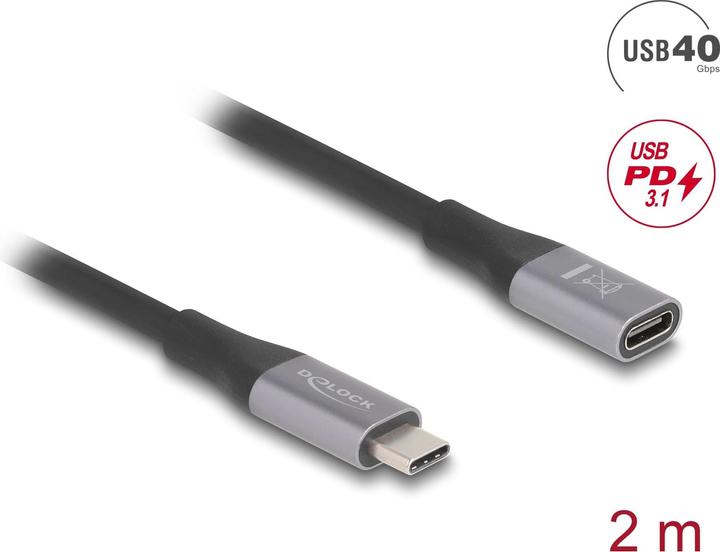

This USB cable by Delock enables the extension of a USB Type-C connection.
USB 40 Gbps
The cable enables data transfer rates of up to 40 Gbps when connecting compatible devices. USB 3.2 or USB 2.0 devices can also be connected.
USB Power Delivery (USB PD 3.1) support up to 240 watts
By supporting the Extended Power Range or USB Power Delivery 3.1 standard, connected devices can be supplied with power, with up to 240 W (48 V / 5 A) possible.
Technical data
- Connections:
1 x USB 40 Gbps USB Type-C plug
1 x USB 40 Gbps USB Type-C socket
- Backwards compatible with USB 3.2, USB 2.0, and Thunderbolt 3
- Connectors with metal housing
- Wire cross-section:
24 AWG data cable
22 AWG power cable
- Gold-plated contacts
- Cable jacket material: TPE
- Cable diameter: approximately 5 mm
- Data transfer rate up to 40 Gbps
- Monitor resolution up to 7680 x 4320 at 60 Hz (depending on system and connected hardware)
- Supports HDR10
- Supports HDCP 1.4 and 2.3
- Supports PCI Express 3.0 protocol
- Supports DisplayPort 1.4a protocol
- Supports DisplayPort Alt Mode 2.0
- Dual channel, bi-directional data transfer
- Supports Extended Power Range (EPR)
- USB Power Delivery (USB PD 3.1) support up to 240 watts (48 V / 5 A)
- Colour: black / grey
- Length including connectors: approximately 2 m
Package contents
- USB 40 Gbps cable
Packaging
- Resealable bag
Technical specifications
General
Specification
- HDCP 1.4
- DisplayPort 1.4
- HDR10
- PCI Express 3.0
- HDCP 2.3
- USB Power Delivery 3.1
- USB 40 Gbps
Interface
Port 1
- 1 x USB Type-C connector
Port 2
- 1 x USB Type-C socket
Technical features
Chipset
- E-Marker
Data transfer rate
- 40 Gbps
Maximum image resolution
- 7680 x 4320 at 60 Hz
Maximum power
- 240 W
Maximum current
- 5 A
Voltage
- 20 V
Physical properties
Contact plating
- Gold plated
Conductor cross-section
- 22 AWG power cable
- 24 AWG data cable
Length
- 2 m
Colour
- Black / grey.
