Delock HDMI splitter 1 x HDMI in to 2 x HDMI out 4K 60 Hz wi

This splitter from Delock receives an HDMI signal from a PC or notebook and distributes it to two connected screens. This allows two HDMI monitors to be operated from a single HDMI port.

Downscaler
If a monitor does not support the high resolution, the integrated downscaler can scale the image from 4K to 1080p.

USB Power Supply
The device is powered via a USB port, and a suitable USB cable is included. If no free USB-A port is available, an optional external power supply is required.

Specifications

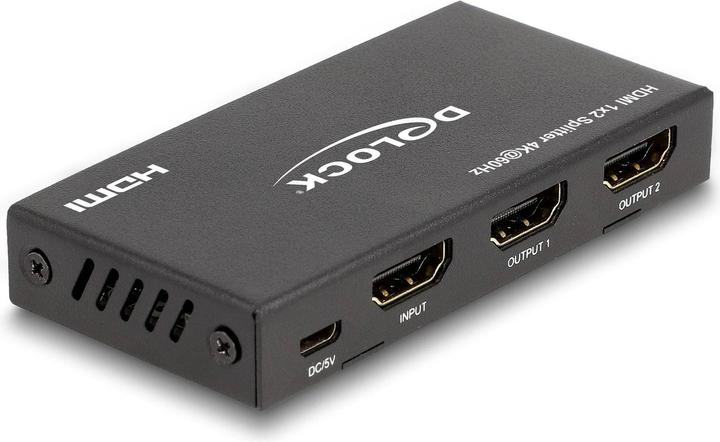

• Connections:

Input:
1 x HDMI-A socket
1 x USB Type Micro-B socket (5 V power supply)
Output:
2 x HDMI-A sockets

• Supports EDID Management
• High Speed HDMI specification
• Supports 3D displays
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Function: Mirroring
• Transmission of audio and video signals
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and connected hardware)
• Video bandwidth up to 600 MHz / 6 Gbps per channel, max. 18 Gbps
• Power consumption: max. 2.5 W
• Robust metal housing
• Color: black
• Dimensions (LxWxH): approx. 90 x 44 x 14 mm

System Requirements

• HDMI cable
• Power source with a free USB Type-A socket

Package Contents

• HDMI splitter

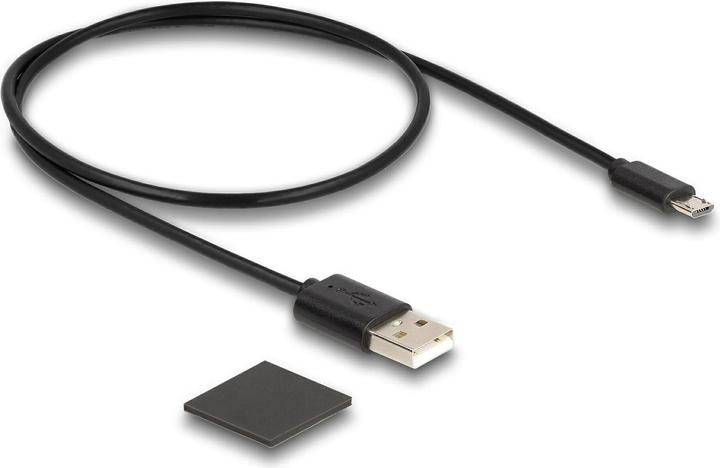

• USB power cable, length: approx. 0.75 m
• User manual.
