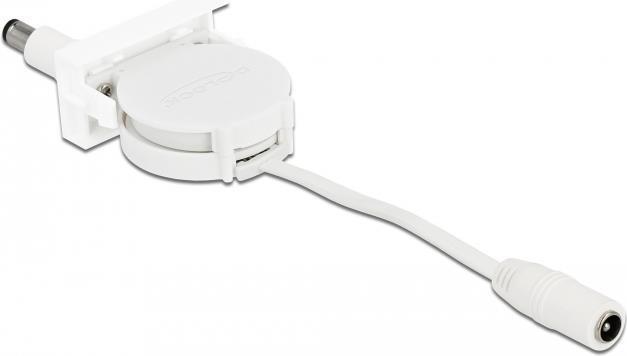

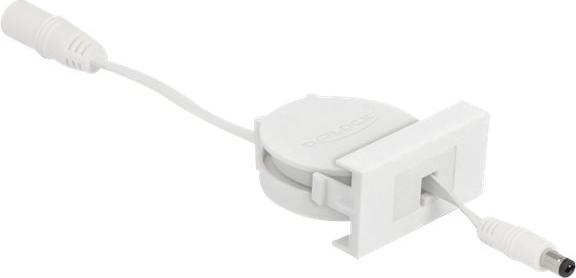

Delock Easy 45 Module Power Unwind Cable DC 5.5 x 2.1 mm Female / Male White

This power supply cable from Delock is designed to power devices with an existing DC socket. Thanks to the simple snap mechanism, the module sits securely in place and can be easily removed when needed.

Flexible

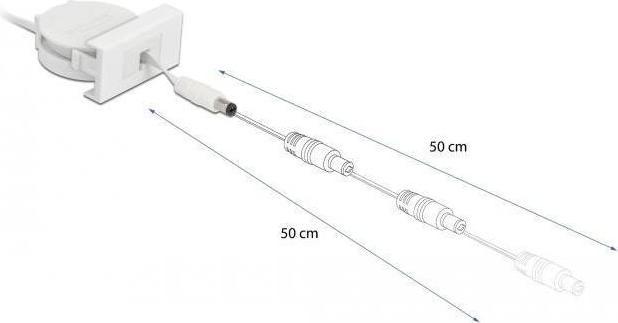

The power supply cable can be extended in six stages, offering different cable lengths based on your needs. When the cable is not in use, it can be neatly rolled up and stored.

Easy 45 connects
Easy 45 is a versatile, modular system that allows you to assemble components such as sockets, HDMI, or USB connections according to your requirements. The Easy 45 modules are standardized and can be mounted in various module carriers or floor channels. Easy 45 serves as the interface between electrical, network, and system installations and numerous peripheral devices, such as TVs, monitors, printers, laptops, and more.

Specifications

• Connections:

external: 1 x DC 5.5 x 2.1 mm plug
internal: 1 x DC 5.5 x 2.1 mm socket

• Voltage: max. 12 V
• Current: max. 1.5 A
• Wire gauge: 24 AWG
• Length including connectors:

Host cable approx. 12 cm

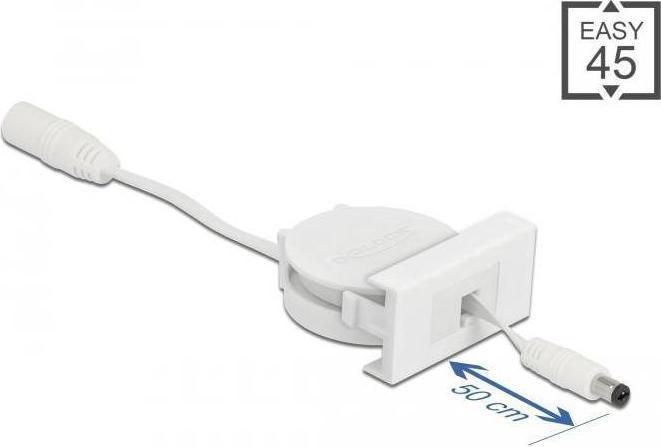

Device cable approx. 50 cm (extended)

• Suitable for Delock Easy 45 module carriers
• Suitable for 45 mm floor channels with a minimum installation depth of 45 mm
• Module size: 22.5 x 45 mm
• Dimensions (LxWxH): approx. 45.0 x 22.5 x 47.0 mm
• Color: white

System requirements

• An available module space in Delock Easy 45

Package contents

• Easy 45 module roll-out cable.
