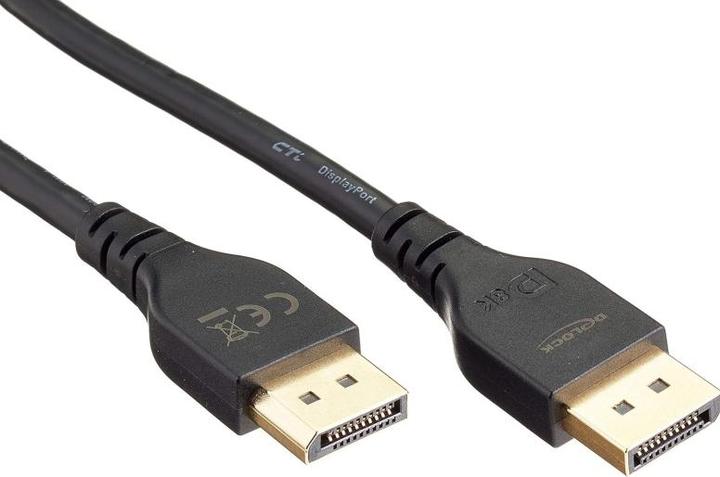

Delock DisplayPort — DisplayPort

This certified DisplayPort cable from Delock is designed to connect devices with a DisplayPort interface, such as monitors, projectors, or televisions, to a PC or laptop. With support for a maximum bandwidth of 32.4 Gbps, it can transmit content in up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution. The high-quality, triple-shielded cable also significantly enhances the quality of audio transmissions with a sampling rate of up to 1536 kHz.

Slim Connector
Thanks to the absence of a locking mechanism, the connectors are slightly slimmer than standard DisplayPort connectors, allowing multiple connections to be used simultaneously in a space-saving manner. Additionally, the connectors can be more easily removed from hard-to-reach DisplayPort sockets, such as those on the back of a monitor.

Specifications

• Connectors: 1 x DisplayPort Male > 1 x DisplayPort Male
• DisplayPort 1.4 specification
• Backward compatible with DisplayPort 1.3, 1.2, and 1.1
• DisplayPort DP 8K certified cable
• Pin 20 is not connected
• Wire gauge: 30 AWG
• Cable diameter: approx. 7.5 mm
• Copper conductor
• Triple-shielded cable
• Gold-plated contacts
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gbps
• Resolution up to (monitor with DSC support)*: 7680 x 4320 @ 60 Hz, 5120 x 2880 @ 120 Hz, 3840 x 2160 @ 240 Hz
• Resolution up to (monitor without DSC support)*: 7680 x 4320 @ 30 Hz, 5120 x 2880 @ 60 Hz, 3840 x 2160 @ 120 Hz
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Supports HBR3 (8.1 Gbps) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports color sampling in formats 4:4:4, 4:2:2, and 4:2:0
• Color: black
• Length including connectors: approx. 1 m

*dependent on the system and connected hardware

System Requirements

• A free DisplayPort...
