Delock Adapter USB 2.0 type-A to 1 x serial RS-422/485 plug with 6 pin terminal block adapter 5 V 1.8 m

This USB 2.0 to serial adapter from Delock provides a standardized RS-422 and RS-485 connection for measuring devices, POS systems, printers, modems, IoT devices, and more.

The terminal block is suitable for mounting in PC cases and for any solder-free cable connection with RS-422 or RS-485 interface.

Optionally, external devices can be powered through the terminal block with 5V voltage.

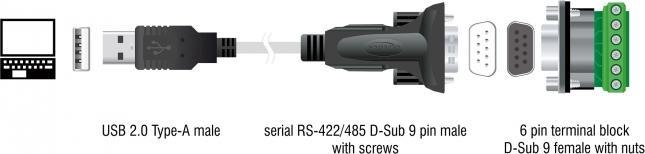

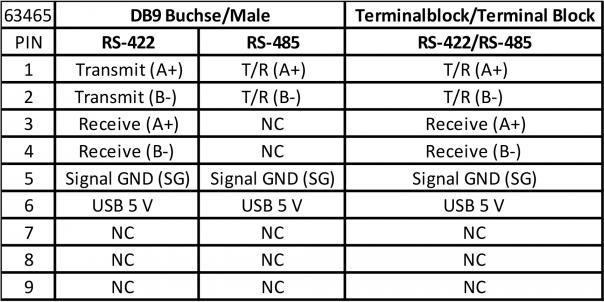

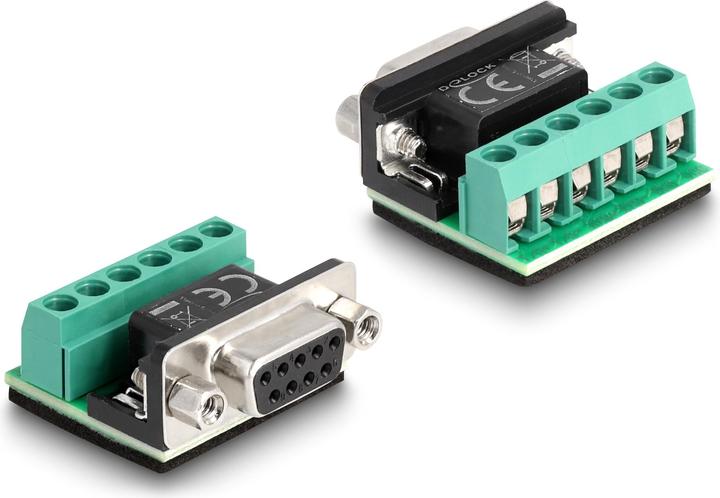

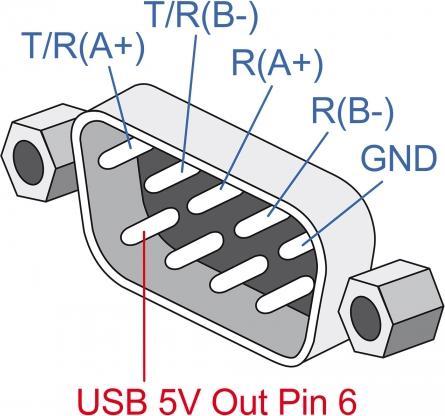

The connections include: an adapter with 1x USB 2.0 Type-A plug and 1x serial RS-422/485 D-Sub 9-pin plug with screws; a terminal block with 1x serial RS-422/485 D-Sub 9-pin socket with screws and 1x 6-pin terminal block. The terminal block contains T/R+, T/R-, RXD+, RXD-, GND, and VCC.

Chipset: FTDI FT232R
Data transfer rate up to 921.6 Kbps
RS-422/485 termination resistance: 120 Ω
Cable length including connectors: approx. 1.8 m

System requirements:

• Linux Kernel 5.11 or higher
• Mac OS 11.6 or higher
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC or notebook with a free USB Type-A port

Delivery includes:

• USB 2.0 to 1x serial RS-422/485 adapter
• Terminal block adapter
• Driver CD
• User manual.
