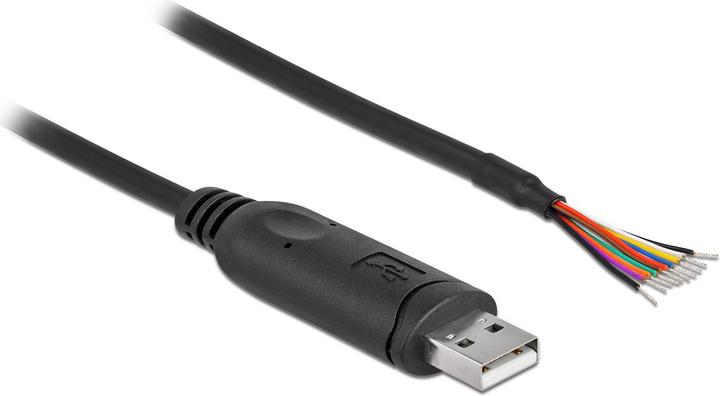

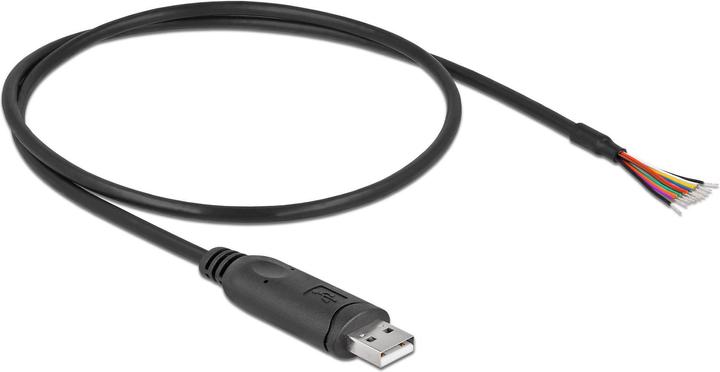

Delock Adapter cable USB 2.0 Type-A to serial RS-232 with 9 open cable ends + shield 0.5 m

This Delock USB 2.0 Type-A to serial RS-232 adapter cable is suitable as a connection cable between a device with USB 2.0 and a device with an RS-232 connection. With the tinned open cable ends, the connection can be made directly to an RS-232 device port or flexibly with various terminal blocks. Additionally, it allows for the creation of custom adapters and cable assemblies.

Specification

Connections: 1x USB Type-A plug > 1x Serial RS-232 9 x open cable ends + shielding (tinned)
Chipset: FTDI FT232R
Compatible with UHCI / OHCI / EHCI controllers
Data bits: 7 or 8
Stop bits: 1 or 2
Parity: None, Space, Even, Odd, Mark
Flow control: None, Hardware RTS / CTS, Software XON / XOFF
Data transfer rate up to 230.4 Kbps
Pin assignment: TxD (red), RxD (brown), RTS (blue), CTS (violet), DTR (orange), DSR (green), DCD (black), RI (white), GND (yellow), Shielding (matte black)
ESD overvoltage protection IEC 61000-4-2
HCP and VCP: ±4 kV
Air discharge: ±8 kV
Contact discharge: ±4 kV
Cable diameter: approx. 5 mm
Wire cross-section: 26 AWG
Conductor: Copper stranded
Insulation: PVC
Cable length including connectors: approx. 0.5 m
Color: black
Operating temperature: -10 °C to 80 °C

System Requirements

Mac OS 10.13 or higher
Linux Kernel 2.6 or higher
Windows 8.1/8.1-64/10/10-64/11
Windows Server 2012 / Server 2012R2 / Server 2016
PC or notebook with a free USB Type-A port

Package Contents

USB Type-A to 1 x serial adapter.
