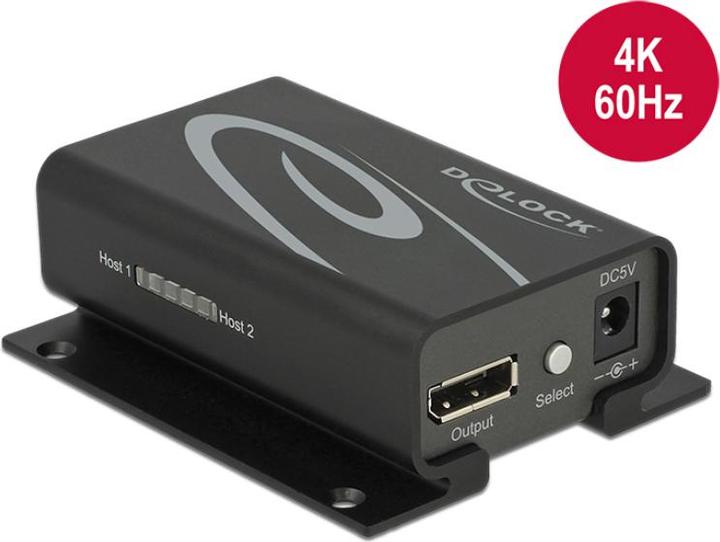

Delock 2Port Displayport Switchbox

With this Delock DisplayPort Switch, you can connect up to two DisplayPort devices to a single DisplayPort monitor. You can switch between the DisplayPort devices using the button on the device or the remote control. The output is Dual Mode capable (DP++), allowing you to connect an HDMI or DVI monitor using a suitable adapter.

Note: The distance between the source and the DisplayPort Switch should not exceed 5 m for a resolution of up to 2560 x 1600 or 1 m for a resolution of 4K @ 60 Hz. The distance between the DisplayPort Switch and the monitor should not exceed 15 m for a resolution of up to 2560 x 1600 or 3 m for a resolution of 4K @ 60 Hz.

Specifications:

• Connections:
• Input:
• 2 x DisplayPort 20 Pin socket
• 1 x DC 5 V power connection
• Output:
• 1 x DisplayPort 20 Pin socket
• Switching via button or infrared remote control
• LED display for active connection
• DisplayPort 1.2 specification
• DisplayPort output supports Dual Mode DP++
• Audio input formats: 7.1-channel with a sampling rate of up to 192 kHz
• Supports a resolution of up to 3840 x 2160 @ 60 Hz (depending on the system and connected hardware)
• Metal housing
• Color: black
• Dimensions (LxWxH): approx. 90 x 73 x 31 mm

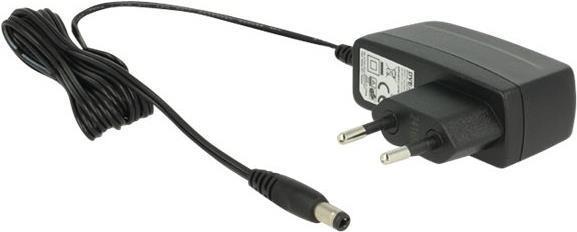

Power supply specifications:

• Plug-in power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A
• Output: 5 V / 1.0 A
• Outer diameter: approx. 2.1 mm
• Inner diameter: approx. 5.5 mm
• Length: approx. 9 mm

System requirements:

• An available DisplayPort socket
• DisplayPort cable

Package contents:

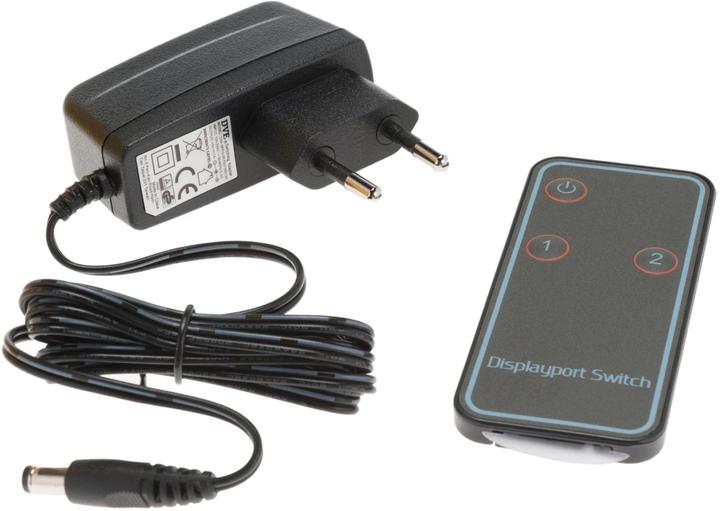

• DisplayPort Switch

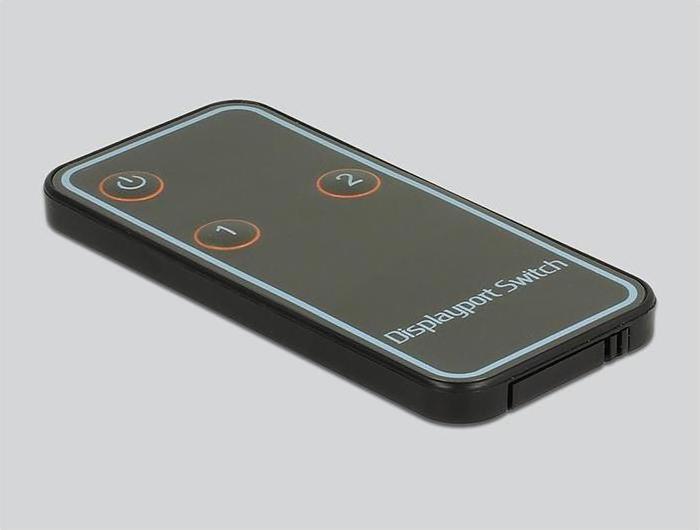

• Remote control
• External power supply
• User manual.
