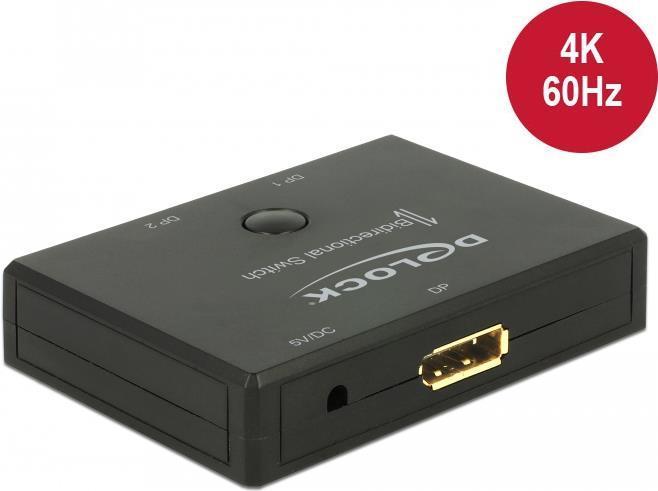

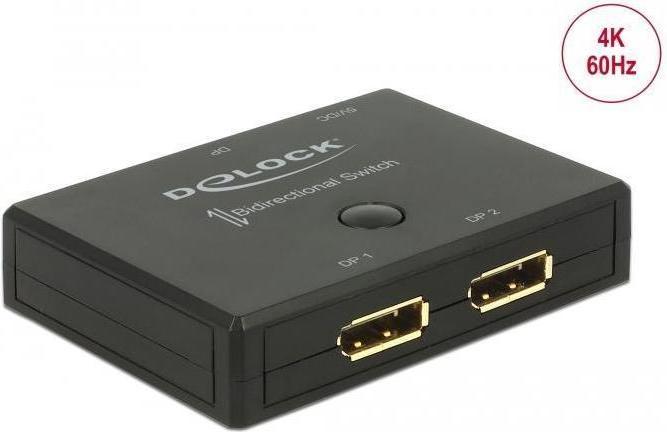

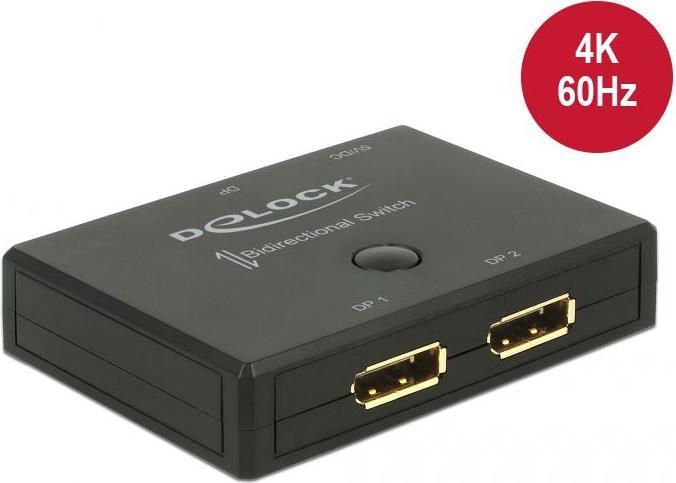

Delock 2 Port DP Switch&Distributor

This DisplayPort switch from Delock is a manual bidirectional switch for connecting various devices with a DisplayPort connection, offering two different usage options.

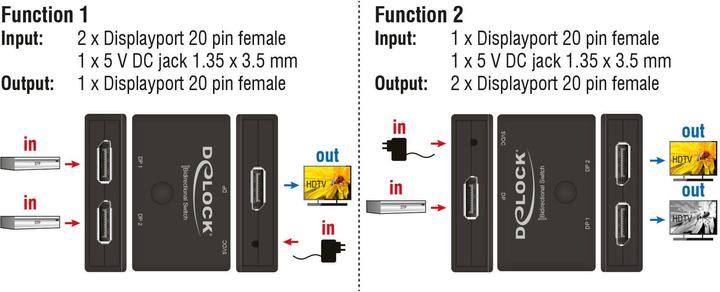

1. Up to 2 devices can be connected to a monitor, TV, or projector. By pressing a button, the device to be displayed on the screen can be selected.
2. One DisplayPort device can be connected to up to 2 screens. By pressing a button, the screen on which the signal is displayed can be selected. Simultaneous output on multiple screens is not possible.

Note: When using a 20-pin DisplayPort cable at the video source, the switch can be powered.

Specifications:

• Connections:
• Function 1
• Input: 2 x DisplayPort 20-pin socket, 1 x 5 V DC power socket 1.35 x 3.5 mm
• Output: 1 x DisplayPort 20-pin socket
• Function 2
• Input: 1 x DisplayPort 20-pin socket, 1 x 5 V DC power socket 1.35 x 3.5 mm
• Output: 2 x DisplayPort 20-pin socket
• DisplayPort port switching via switch
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and connected hardware)
• Plastic housing
• Color: black
• Dimensions (LxWxH): approx. 82 x 62 x 17 mm

System requirements:

• An available DisplayPort socket
• DisplayPort cable
• Power source with an available USB Type-A port

Package contents:

• Bidirectional switch

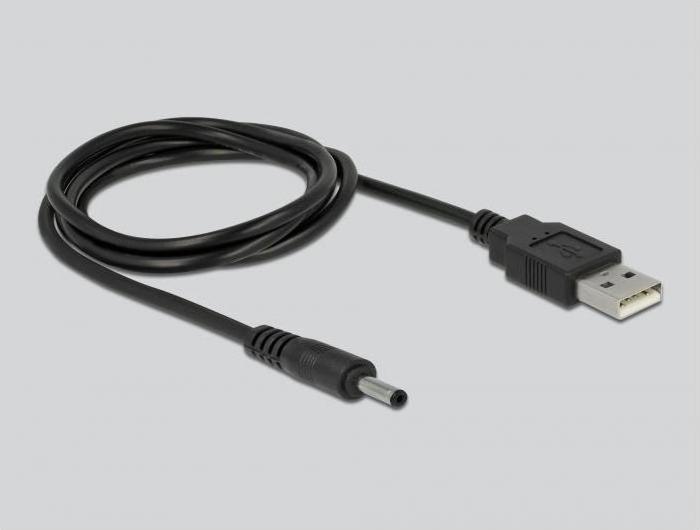

• USB power cable, length: approx. 1 m
• User manual.
