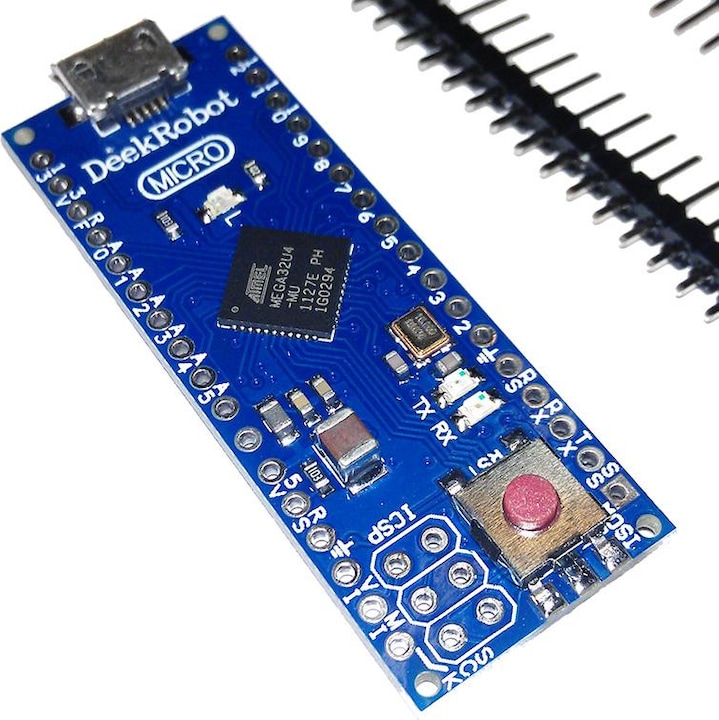

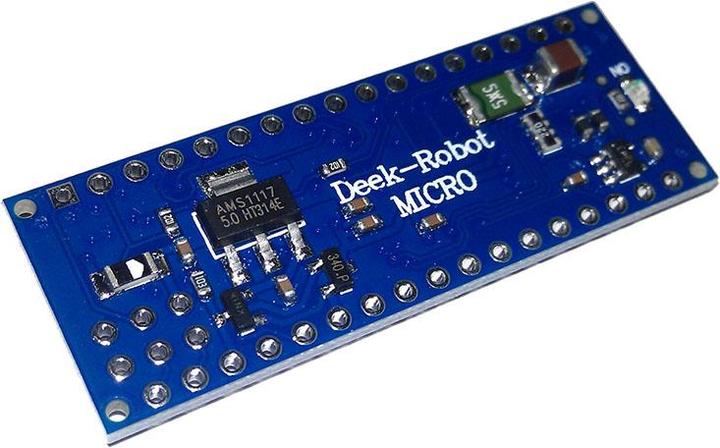

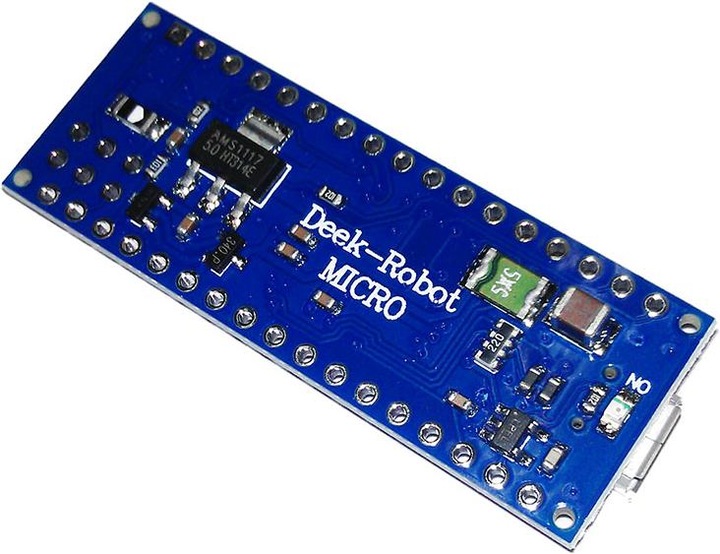

Deek-Robot DK Micro 5V/16Mhz

The DK Micro is a 100% compatible clone of the Arduino Micro.

In contrast to the original, the board is delivered without pre-soldered headers
which makes it suitable for use where space is limited
possible

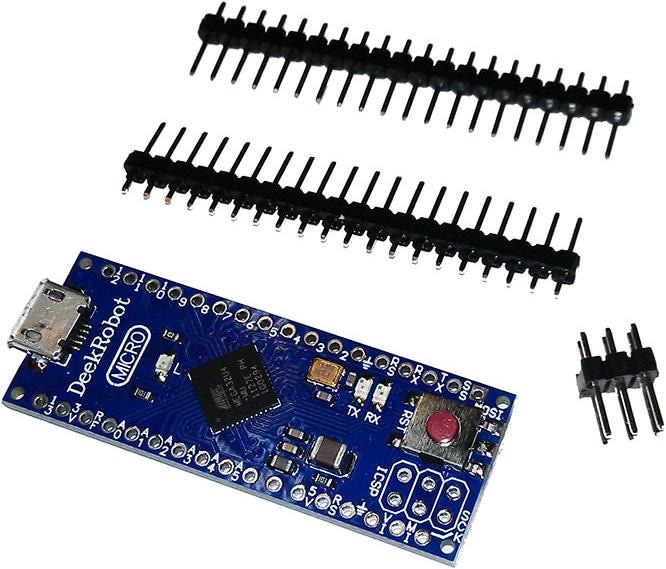

The scope of delivery includes the headers for the self
solder on anyway.

As processor an ATmega32U4 is used. The integrated USB
Transceiver allows the Pro Micro to be used as a keyboard, for example
(like Arduino Leonardo)

Of course the small board has all other features as well,
which we are used to from Arduino: 4 ADC channels, 5 PWM pins, 12
digital I/Os and a hardware serial connection.

The board is fed with 5V and is clocked with 16Mhz.
The micro is programmed directly via USB with a USB micro cable.

Technical data

* ATMega 32U4, clocked with 16Mhz
* Operating voltage 5V
* Input voltage 7-12V (Limits 6-20V)
* Full support from Arduino IDE v1.0
* Micro-USB connector for programming and power supply
* DC current per I/O: 40 mA
* 12 x 10-bit ADC
* Total 20 x digital I/Os (7 of them with PWM)
* Reset button
* Rx and Tx Hardware Serial Connections
* Flash: 32KB
* SRAM: 2.5KB
* EEPROM: 1KB
* The smallest Arduino compatible board from DK!

PLAY-ZONE is the official distributor for DK / Deek-Robot products
in Switzerland.

Key specifications

Item number
5999160

General information

Manufacturer
Category
Electronics modules
Manufacturer no.
P00000727
Release date
11/22/2016

Package dimensions

Length
7 cm
Width
6 cm
Height
0.30 cm
Weight
10 g
