Banana PI BPI-R1 Open-source smart router

Art-Nr 5998944
 Currently unavailable. Delivery date unknown.

Availability

Mail delivery

  • Currently unavailable. Delivery date unknown.

Collection

  • Basel: Currently unavailable. Delivery date unknown.
  • Bern: Currently unavailable. Delivery date unknown.
  • Dietikon: Currently unavailable. Delivery date unknown.
  • Geneva: Delivery date unknown
  • Kriens: Currently unavailable. Delivery date unknown.
  • Lausanne: Currently unavailable. Delivery date unknown.
  • St Gallen: Currently unavailable. Delivery date unknown.
  • Winterthur: Currently unavailable. Delivery date unknown.
  • Wohlen: Delivery date unknown
  • Zurich: Currently unavailable. Delivery date unknown.

Information subject to change.

View details

Description

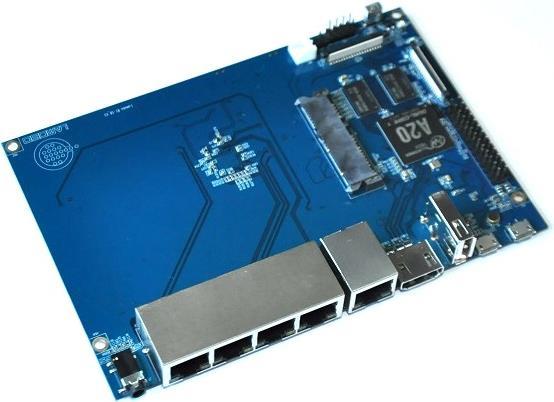

The BPI-R1 is a 300Mbps Wireless N Router with both wired and wireless
network connections designed specifically for smart home networking
use.

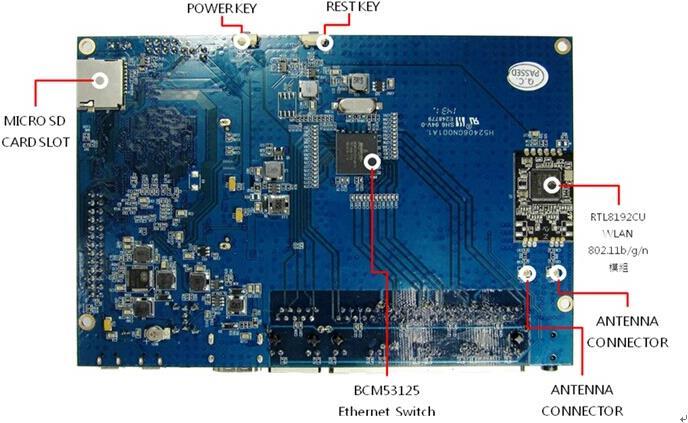

With 2T2R MIMO Technology and two detachable antennas, the R1 dual
core run can run with Android 4.2.2 smoothly and with a Gigabit
ethernet port and a SATA Socket, it can easily run with the game and
supports 1080P high definition video output.

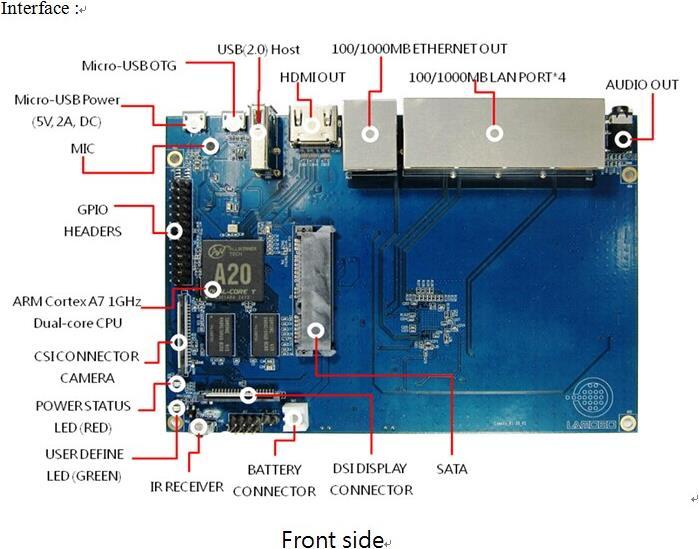

Details:

* CPU: A20 ARM Cortex A7 Dual Core
* GPU: ARM Mali400 MP2 (Complies with OpenGL ES 2.0/1.1
* Memory (SDRAM): 1GBDDR (shared with GPU)
* Onboard Storage: MicroSD (Max. 64GB), Upto 2TB on SATA
* Onboard Network: 10/100/1000 Ethernet RJ45, WLAN @802.11b/g/n
* Video Input: CSI Input
* Video Output: HDMI, LVDS/RGB
* Audio Input: Microphone
* Audio Output: 3.5mm Jack and HDMI
* Power Source: 5V via MicroUSB (DC)
* USB 2.0 Ports: USB Host and Micro USB (OTG)
* Buttons: Reset, Power

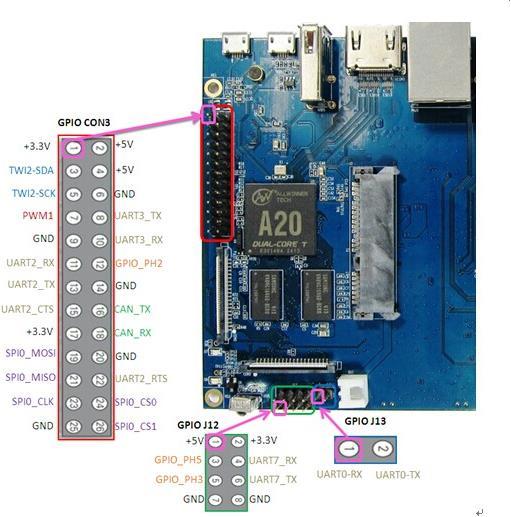

* GPIO(2x13 Pin): GPIO, UART, I2C-Bus, SPI-Bus, CAN-Bus, ADC, PWM,
3.3V, 5.5V, GND
* LED: Power, RJ45
* Remote: IR
* OS: Android 4.2, Linux
* Size: 148mm x 100mm
* Weight 83g
more

Specifications

Click 'show more' to display specifications.

General information

Manufacturer Banana PI
Product type Electronics modules
Item number5998944
Manufacturer no.P00001063
