Autosolar Plug & Play solar system
375 WProduct details

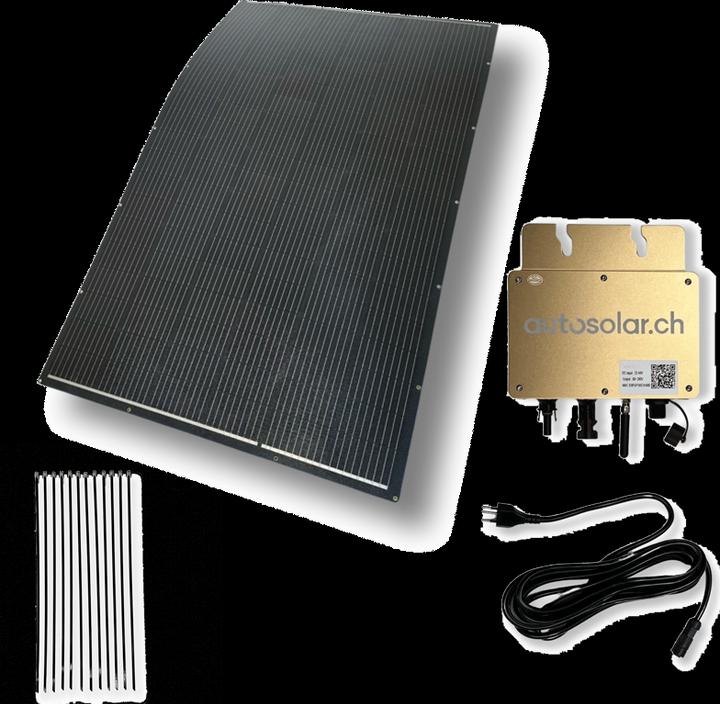

Solar System 375W Flex - Plug & Play
The 375-watt solar power plant makes you partially independent from grid electricity. You can produce your own solar power and thereby reduce your electricity costs. This Plug & Play solar system is easy to install. You simply need to connect the individual parts and plug them into your outdoor socket. Thanks to the 5-meter cable with a Swiss plug, this is very straightforward.
Starter Set for Off-Grid Power Supply

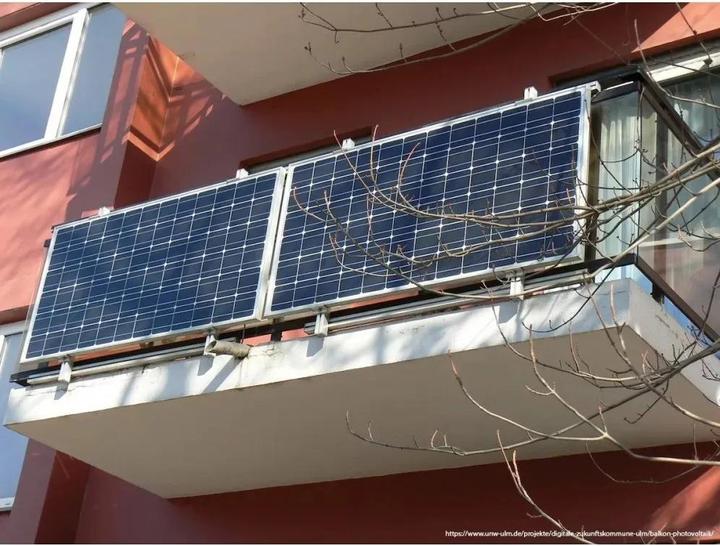

These solar power plant sets for balconies are a great starter set for off-grid power supply. The solar panels in the sets are designed to fit any standard balcony railing.

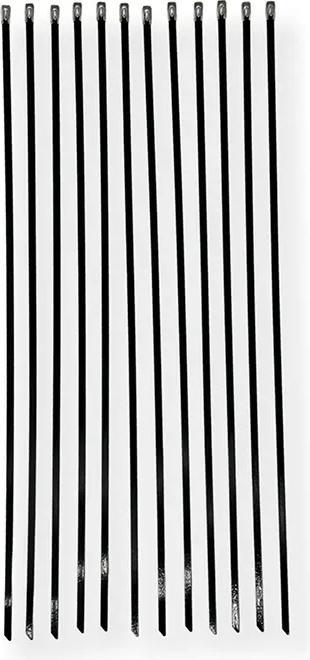

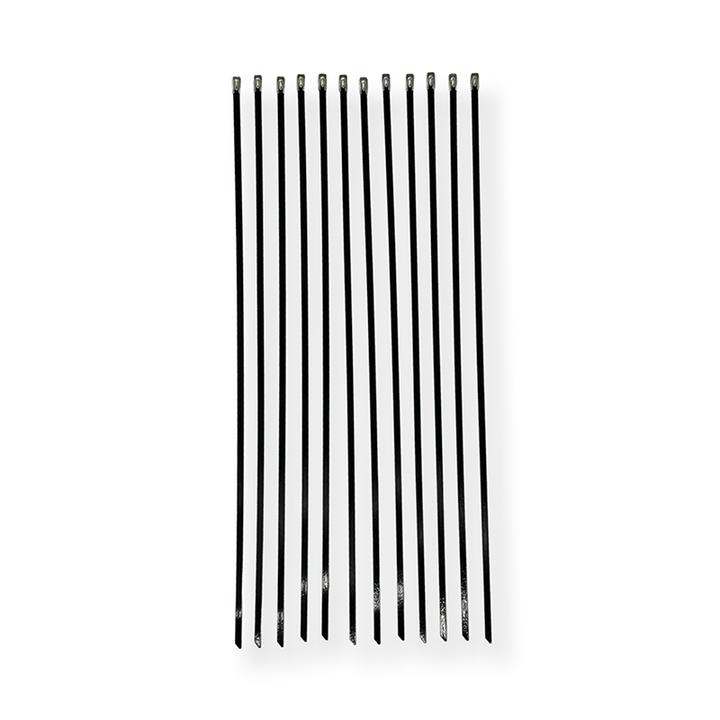

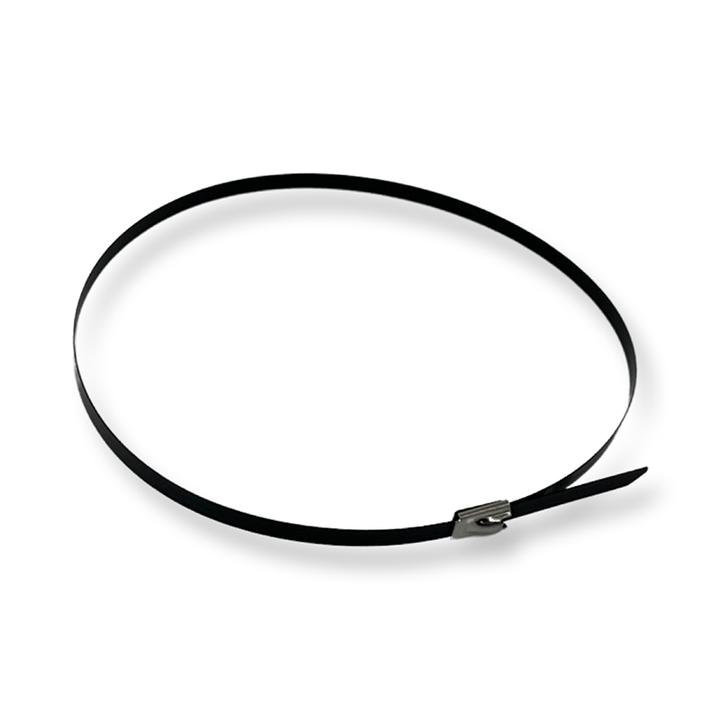

Stainless Steel Cable Ties for Flex Modules
For every Plug-In solar set, we provide the appropriate installation kit so that the module can be mounted directly to the balcony railing.
Module Inverter with App - Feed-In via Socket

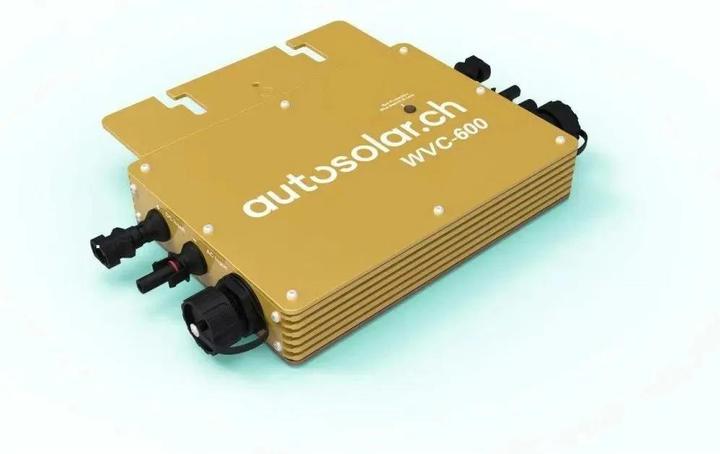

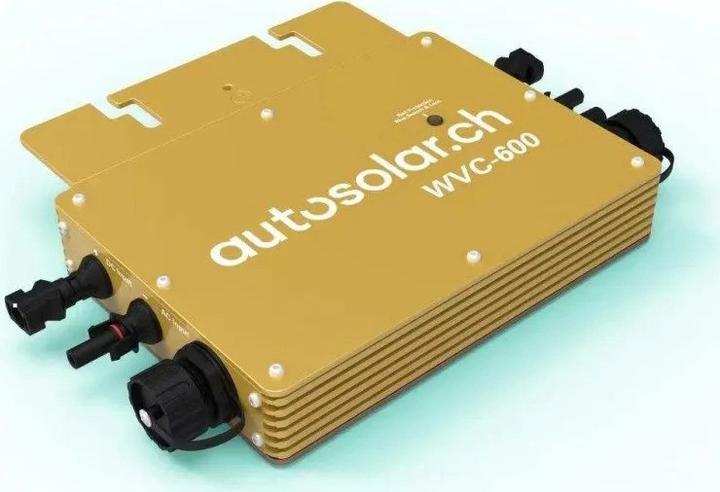

The 300-watt module inverter included in the set is designed according to Swiss standards from ESTI and feeds a maximum of 300W power into the existing socket. The microinverter can be directly connected to the outdoor socket via the AC connection and the appropriate cable.
Can be Installed Without a Permit
In Switzerland, it is currently allowed to install smaller Plug & Play systems with a maximum output of 600W without a permit. The condition is that the grid operator is informed about the operation of the solar system. A larger system must be installed by a professional.
Please Note
When installing the system, it is important to ensure that only one Plug & Play system can be connected per outdoor socket. Outdoor sockets are usually protected by a residual current device (RCD).
Installation instructions for Plug & Play systems
In Switzerland, small plug & play systems up to a maximum nominal output of 600W may be installed without authorisation. The prerequisite is that the grid operator is informed about the operation of the solar system. A template for registering the system can be found in the documents section.Protective device Plug & Play systems
For proper operation of the system, it must either be protected by an RCD (PRCD, type B, 30 mA) at the external socket or a residual current monitoring unit (RCMU) sensitive to all currents must be verifiably installed in the inverter/grid interface.Solar system type | Balcony power plant |
Output power (total) | 375 W |
Voltage transformer type | Solar voltage transformer |
Documents |
Item number | 23945239 |
Manufacturer | Autosolar |
Category | Solar generators |
Manufacturer No. | set375flex-mi300 |
Release date | 25.1.2023 |
Colour | Black, Grey, White |
Exact colour description | Black, Grey, White |
Material group | Glass, Metal, Plastic |
Material | Flexible, Monocrystalline |
Solar system type | Balcony power plant |
Protection type (IP code) | IP55 |
Cell type | Monocrystalline |
Number of solar panels | 1x |
Output power (per panel) | 375 W |
Output power (total) | 375 W |
Voltage (MPP) | 24 V |
Open circuit voltage (UMPP) | 33 V |
Short circuit current | 12.05 A |
Voltage transformer type | Solar voltage transformer |
Electric current output | 11.37 A |
Additional properties | WLAN module |
Power output | 300 W |
Scope of delivery | 1x 5m connection cable (incl. Swiss IP55 plug), 1x connection cable, 1x Declaration of Conformity, 1x Instructions for use, 1x inverter, 1x metal cable tie, 1x module inverter 300 W, 1x mounting material, 1x solar panel, 1x solar panel 375W |
Length | 105 cm |
Width | 177 cm |
Length | 182 cm |
Width | 110 cm |
Height | 36 cm |
Weight | 28 kg |
