Aten CS1768: DVI KVM Switch, 8Port

Ratings
BrandMore from Aten
Delivered between Wed, 15.4. and Sat, 18.4.
Only 4 pieces in stock at supplier
free shipping

Product details

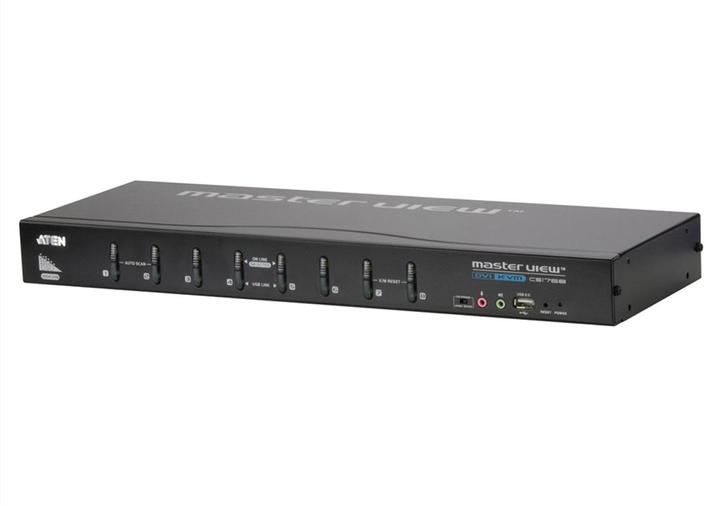

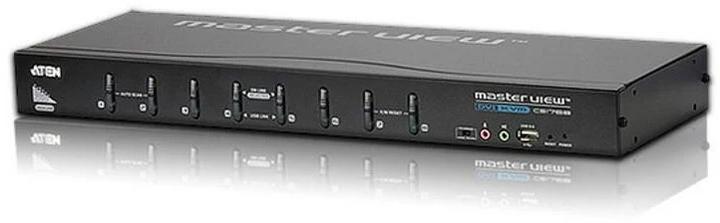

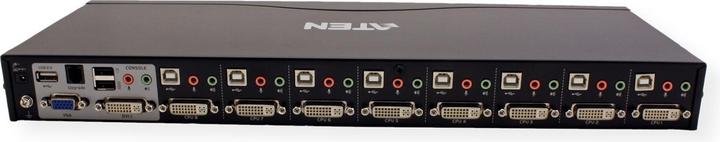

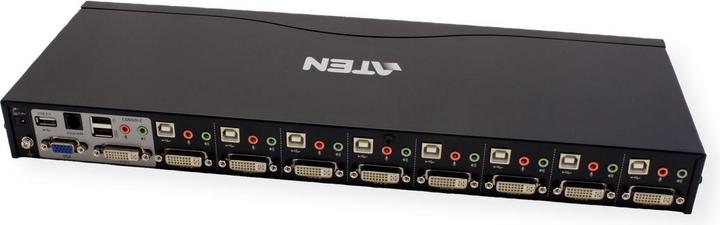

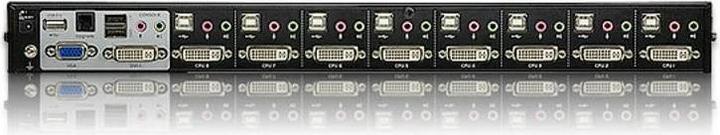

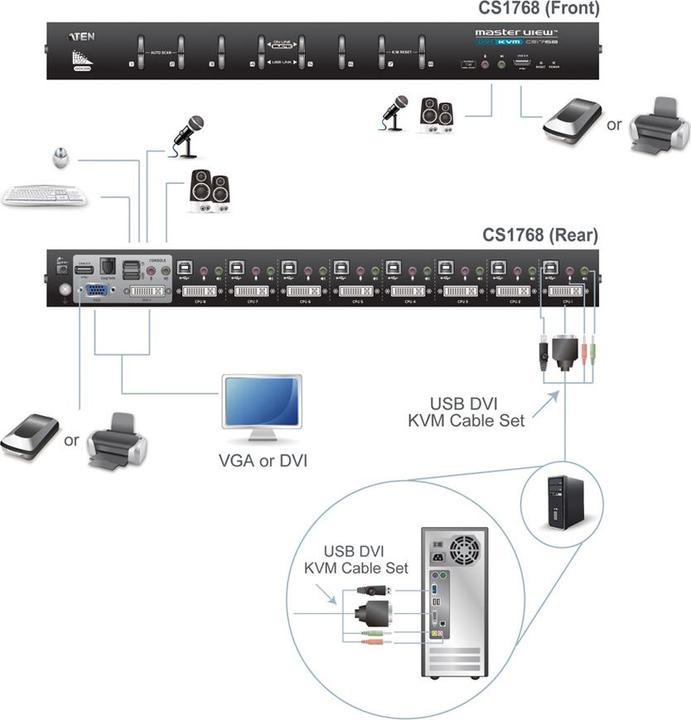

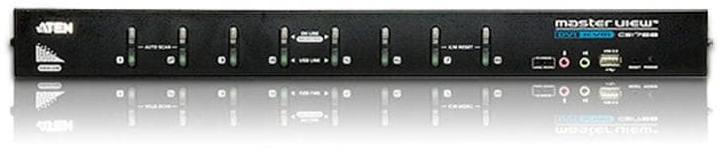

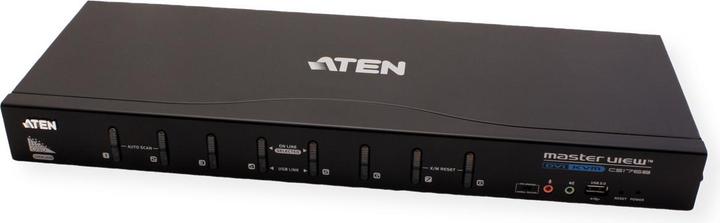

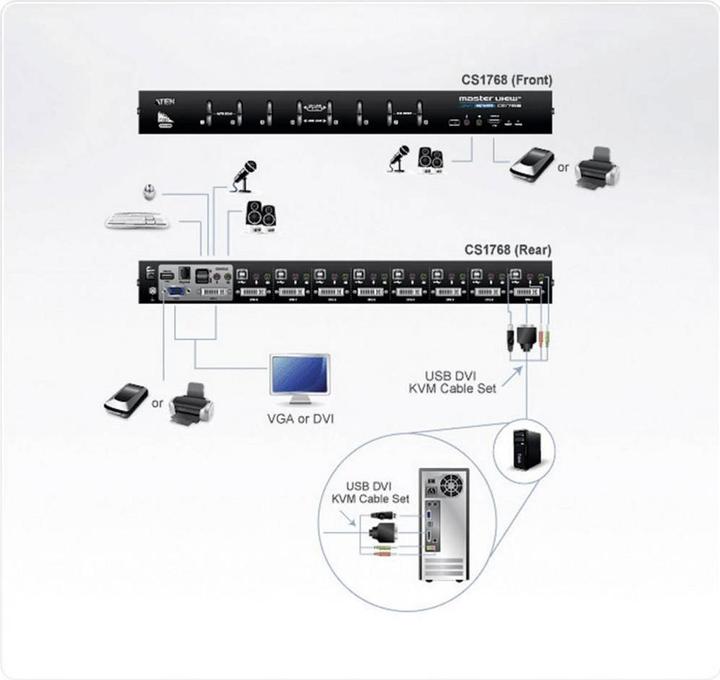

The USB KVM switch with 8 ports for DVI graphics CS1768 is a multifunctional device that allows you to control 8 computers from a single USB keyboard, monitor (DVI-I and VGA), and USB mouse. It can be cascaded up to three levels, enabling a cascading setup of up to 73 CS1768 units. This results in the ability to manage up to 512 computers from a single console, making it ideal for managing IT applications on an industrial scale.

Additionally, the CS1768 supports a multiview configuration, allowing up to four switches to be connected via standard USB cables for a comprehensive overview of the entire setup on multi-screen computers. This enables you to conveniently compare, analyze, and monitor the video output, simplifying the overall workflow.

Furthermore, the CS1768 features ATEN's well-known OSD menu control, which provides access to each connected computer. The OSD menu also allows you to save the device configuration and restore it if needed. The CS1768 supports multimedia keyboards and audio transmission. Audio input can be provided through two microphones, one for each computer. You can listen to the audio output from each computer on two sets of speakers, with one playback signal at a time.

Key specifications

Number of controllable PC's
8x
Main device port
3.5mm, DVI, USB Type-A
Exact USB ports
USB-A 2.0 (4x), USB-B 2.0 (8x)
Video connections
DVI-I (1x)
Audio Connections
Headphones
Network connections
RJ45 (1x)

General information

Item number
5815570
Manufacturer
Aten
Category
KVM switches
Manufacturer no.
CS1768-AT-G
Release date
22.2.2016
Sales rank in Category KVM switches
55 of 1703

Colour

Colour
Black
Exact colour description
Black

KVM switch properties

Product type
KVM switch
Connectable devices (input)
10
Connectable devices (output)
8
Number of controllable PC's
8x
Max. picture resolution
2048 x 1536 pixels
remote control type
Cable

Connection main unit

Main device port
3.5mm, DVI, USB Type-A

Connection to external devices

USB ports
USB-A, USB-B
Exact USB ports
USB-A 2.0 (4x), USB-B 2.0 (8x)
Video connections
DVI-I (1x)
Audio Connections
Headphones
Network connections
RJ45 (1x)
Data ports
PS/2 (2x)

Scope of delivery

Scope of delivery
1x CS1768 8-port KVM switch with USB for DVI graphics

Power supply

Power supply
Electrical connection

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
465.9 kg
Climate contribution
CHF 11.08

Product dimensions

Length
4.40 cm
Width
43.70 cm
Height
4.40 cm
Weight
2800 g

Package dimensions

Length
55 cm
Width
12 cm
Height
24 cm
Weight
4 kg

30-day right of return
24 Months Warranty (Bring-in)
