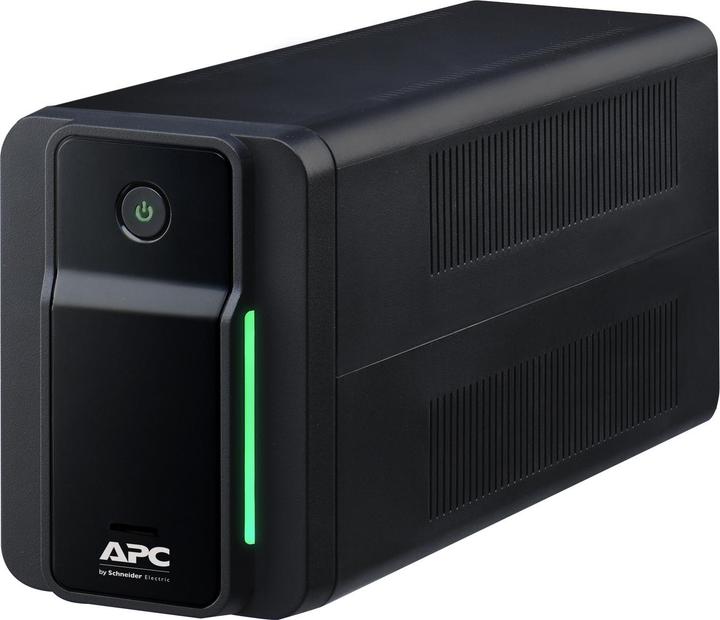

500VA / 300W line-interactive UPS controls LED brightness, quick mute, and generator settings with the press of a single power button. Our new BX series offers data security protection for data transmission over the network at 1 Gigabit speed. Ideal for home and office users, the USB communication cable is ready to use.
Operating time at full load | 1.20 min |
Model | Desktop |
Scope of application | Workplace + home use |
Plug type | C13 |
Item number | 20988306 |
Manufacturer | APC |
Category | UPS |
Manufacturer no. | BX500MI |
Release date | 29.4.2022 |
Sales rank in Category UPS | 3 of 2810 |
External links | |
May include power adapter | Yes |
UPS type | Line-interactive UPS |
Power output | 300 W |
Output power capacity | 500 VA |
Model | Desktop |
shaft type | Sine wave |
UPS protection functions | Overvoltage protection, Undervoltage protection |
Scope of application | Workplace + home use |
Plug type | C13 |
USB ports | USB-B |
Network connections | RJ45 (2x) |
input voltage | 140 - 300 V |
output voltage | 230 V |
Input frequency | 50 - 60 Hz |
Output frequency | 50 - 60 Hz |
overvoltage protection | 273 J |
Efficiency full load | 96.10 % |
Efficiency battery operation | 96.10 % |
Maximum operating temperature | 40 °C |
Operating temperature | 0 - 40 °C |
Operating humidity | 0 - 95% |
Max. noise level | 40 dB |
Protection type (IP code) | IP20 |
Battery category | Industry battery |
Battery | Battery |
Battery type | Lead–acid battery |
Battery size | Device specific |
Number of cells | 1 x |
Battery weight per cell | 2330 g |
Voltage | 12 V |
Capacity | 7 Ah |
Charging time | 8 h |

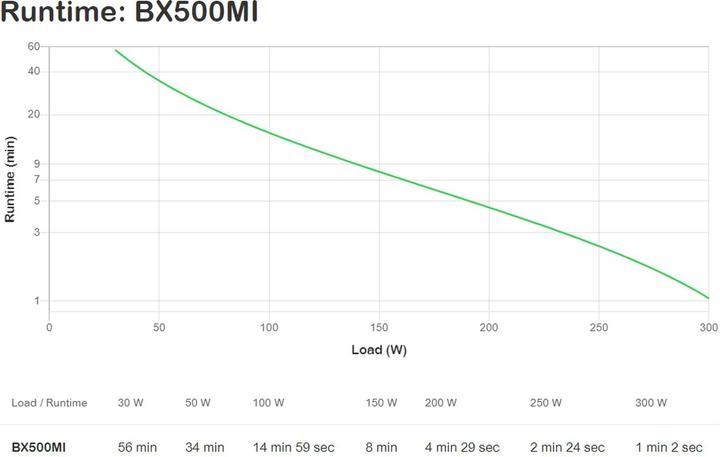

Operating time at full load | 1.20 min |
Operating time at half load | 8.50 min |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | UPS equipment and accessories |
Items per sales unit | 1 x |
Height | 138 mm |
Weight | 4.20 kg |
Width | 120 mm |
Length | 310 mm |
Length | 38 cm |
Width | 23 cm |
Height | 19.10 cm |
Weight | 5.55 kg |
