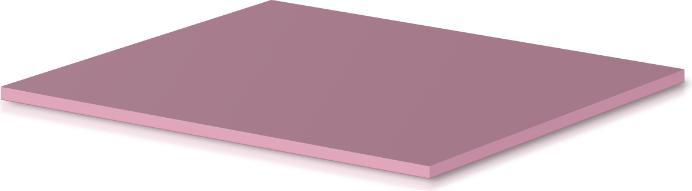

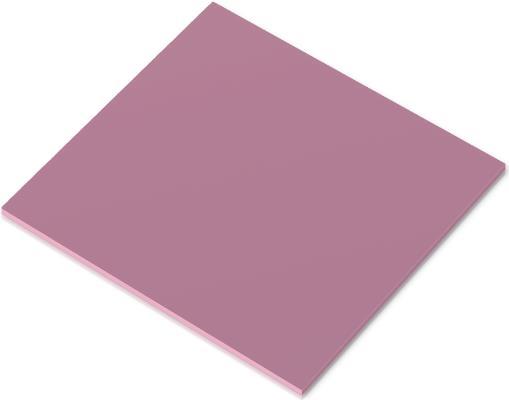

Alphacool Core Thermal Pad Soft 9W/mk 40x40x1mm
1 mm, 9 W/m KFree shipping starting at 50.–
Alphacool's performance thermal pad can be used to cool electronic components of all kinds where it is important to effectively dissipate waste heat. In addition to voltage converters and VRAMs on graphics cards, electronic components of PlayStation and Xbox game consoles can also be cooled, thus significantly improving their performance and durability.
Better than standard thermal pads? The silicone-based soft heat transfer pad is characterized by optimum compressibility. Due to its low hardness and natural stickiness, the Core heat transfer pad adapts perfectly to surfaces, compensates for unevenness between components, and thus ensures a significant improvement in heat transfer.
Increased service life! The special material composition of the Core heat-conducting pad reduces the risk of silicone bleeding. It can be used for a significantly longer period of time than conventional heat transfer pads without any significant loss of performance.
Versatile use! Due to its excellent electrical insulation (electrically non-conductive), Alphacool's thermal pad can also be used to cool electronic components in electric vehicles, autopilot systems, mobile phones, servers, motherboards, power supplies, LCD TVs, notebooks, telecommunication devices, access points, memory modules, etc.
Technical Data:
Thermal pad dimensions (L x W x H): 40 x 40 x 1mm
Thermal conductivity (ASTM D5470): 9.0 W/mK (±10%)
Hardness (ASTM D2240): 50 (Shore 00) (±15)
Operating temperature: -50 to ~180°C
Volume resistivity (ASTM D257): 1×10^12 Ohm-m
Dielectric constant (ASTM D149): 8 KV/mm
Density (ASTM D792): 3.2 g/cm³ (±10%)
Elongation (ASTM D412): 40%
Weight loss (ASTM E595): less than 1%
Flame class (UL 94): V-0
Colour: pink.
Length | 40 mm |
Width | 40 mm |
Thickness | 1 mm |
Density | 3.20 g/cm³ |
Shore hardness | Shore 00-50 |
Electrical conductivity | Non-conductive (0 S/m) |
Max. temperature | 180 °C |
Item number | 32537983 |
Manufacturer | Alphacool |
Category | Thermal pads |
Manufacturer no. | 13421 |
Release date | 2.2.2023 |
Colour | Pink |
Material | Silicone |
Thermal paste type | Heat conducting pad |
Thermal conductivity | 9 W/m K |
Max. temperature | 180 °C |
Density | 3.20 g/cm³ |
Shore hardness | Shore 00-50 |
Electrical conductivity | Non-conductive (0 S/m) |
Items per sales unit | 1 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 40 mm |
Width | 40 mm |
Thickness | 1 mm |
Weight | 19 g |
Length | 13.30 cm |
Width | 13.30 cm |
Height | 0.80 cm |
Weight | 6 g |
