Top-rated products in the Robotics module category

Here's a ranking of the top rated products in this category. To give you a quick overview, we've also added some key information about the products.

1. Purecrea Stepper motor Nema 17 17HS4401S 1.68Nm with planetary gearbox

This bipolar stepper motor with planetary gear ratio of 5 + 2/11 (approx. 5.18:1) uses a type D output shaft with a standard diameter of 8mm and has a step angle of 1.8° (200 steps/rev).For controlling the stepper / stepper motor with Arduino, I recommend using a stepper motor driver like the DRV8825 or even better TB6600.

Application examples:
Printer
3D printer
CNC
Robotics
Linear drives

Technical Details
Model: 17HS4401S-PG518
Phase resistance: 1.65Ω
Current consumption: 1.7A / phase
Transmission ratio: 5.18:1 (5 + 2/11)
Shaft length: 17mm
Shaft diameter: 8mm
Step angle: 1.8°
Maximum torque: 2Nm
Dimension: 42 x 42 x 45 mm
Weight: 440g

Scope of delivery:
1x stepper motor Nema 17 17HS4401S 1.68Nm with planetary gear.


Purecrea Stepper motor Nema 17 17HS4401S 1.68Nm with planetary gearbox (Motor)
Robotics module
CHF52.90

Purecrea Stepper motor Nema 17 17HS4401S 1.68Nm with planetary gearbox

Motor

2. Joy-it Nema 14 - 02

High product quality. Connection: 4 pin female (JST - male). Ideal for robotics, CNC, 3D printing. Temperature range: - 10 bid +50 degrees. Insulation class: B (up to 130 degrees). Steps/revolution: 200.

3. Purecrea 42x42x60mm Stepper Motor Nema 17 42HS60-1704A 1.7A 0.7Nm

The stepper motor is perfect for 3D printers, CNC machines or simply for mechanical Arduino projects. If you want to operate the stepper motor with the Arduino, we recommend buying an A4988, DRV8825 or TMC2208 driver.

Recommended accessories:
Driver:A4988 Stepper Motor Driver Stepper Driver Module
DRV8825 Stepper Motor Driver Stepper Driver Module
SilentStepStick TMC2208
SilentStepStick TMC2209 V2
Single Stepper Motor Stepper Control Board A4988
CNC Shield A4988 Arduino for 3D Printers and Milling Machines (GRBL)
GRBL CNC Shield V4 Nano for 3D Printers and Milling Machines

Technical details:
Model: 42HS60-1704A
shaft length: 20mm
Shaft diameter: 5mm
Step angle: 1.8°
Current consumption: 1.7A / phase
Maximum torque: 0.7Nm
Size: 42 x 42 x 60mm
Weight: 482g

Scope of delivery:
1x 42x42x60mm stepper motor Nema 17 42HS60-1704A 1.7A 0.7Nm (connection cable must be purchased separately).


Purecrea 42x42x60mm Stepper Motor Nema 17 42HS60-1704A 1.7A 0.7Nm (Motor)
Robotics module
CHF38.90

Purecrea 42x42x60mm Stepper Motor Nema 17 42HS60-1704A 1.7A 0.7Nm

Motor

4. Joy-it Nema 23 - 01

With the Nema 23 - 01 you get a robust, powerful stepper motor. It is equipped with a double shaft and has a holding torque of 3NM.

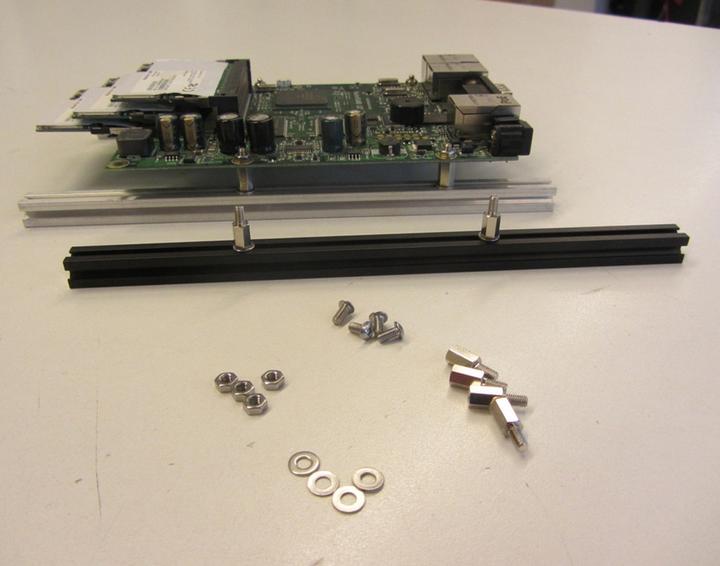

5. MakerBeam Standoffs or spacers

Electronics and makerbeams work good together. It is possible to slide
the PCB into the beams. Unfortunately this not always works well. The
boards are filled to
the edge with electronics and the beams are
conductive. Mounting a printed circuit board on PCB standoffs (or
spacers) could be an easy solution.
Our pack contains 4 spacers, 4 nuts, 4 bolts (6mm) and 4 washers. They
are all M3 size to complement MakerBeam well.
This size (M3) means this product is also a good match for OpenBeam.
You can use the same hex nut driver to fasten the spacers. You do not
need another tool.


MakerBeam Standoffs or spacers (Various, Makerbeam Projects, Construction kit)
Robotics module
Quantity discount
CHF11.40 per piece for 2 units

MakerBeam Standoffs or spacers

Various, Makerbeam Projects, Construction kit

6. Joy-it Nema 23 - 02

High product quality. Connection: 4-pin socket (JST - plug). Ideal for robotics, CNC, automation, milling. Temperature range: - 10 to +50 degrees. Insulation class: B (up to 130 degrees). Steps per revolution : 200.

7. Joy-it NEMA17-04 Stepper motor NEMA 17, 1.8°, 1.5 A, 3.3 V

NEMA17-04 - Stepper motor NEMA 17, 1.8°, 1.5 A, 3.3 V (NEMA17-04).

Joy-it NEMA17-04 Stepper motor NEMA 17, 1.8°, 1.5 A, 3.3 V (Motor)
Robotics module
CHF17.70

Joy-it NEMA17-04 Stepper motor NEMA 17, 1.8°, 1.5 A, 3.3 V

Motor

8. SparkFun EasyDriver

The EasyDriver is compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). The EasyDriver requires a 6V to 30V supply to power the motor and can power any voltage of stepper motor. The EasyDriver has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and you've got precision motor control! EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4, 6, or 8 wire stepper motors.

This EasyDriver V4.5 has been co-designed with Brian Schmalz. It provides much more flexibility and control over your stepper motor, when compared to older versions. The microstep select (MS1 and MS2) pins of the A3967 are broken out allowing adjustments to the microstepping resolution. The sleep and enable pins are also broken out for further control.

Note: Do not connect or disconnect a motor while the driver is energized. This will cause permanent damage to the A3967 IC.


9. Makeblock Me Bluetooth Module (Dual Mode)

Me Bluetooth Module is designed to communicate with devices with
buletooth function through specific software.We provide an Android App
to use it.

It is compatible
with bluetooth 2.0 and 4.0. This module should be
connected to PORT_5 on Makeblock Orion. If your device needs a
passcode, please try 0000 or 1234.

Features:

* Support mobile device (Android/IOS device) to control electronic
modules;
* Support Scratch For Robot programming control the modules via
Bluetooth;
* Support Arduino IDE programming control, we also provide Makeblock
Library for Arduino, easy programming;
* Using RJ25 cable connect the Makeblock main board, super easy to
wiring;
* Modular installation, and compatible with LEGO Bricks;
* Come with header, compatible with most of main boards in the
market based on Arduino;

Specification:

* Operating Voltage: 5V DC power;
* Version: Bluetooth 2.0 and 4.0 compatible;
* Level Output Voltage: 5V/high, 0V/low;
* Dimension: 52 x 24 x 16 mm (Length x Width x Height);

User Guide:

* Me bluetooth module: http://learn.makeblock.cc/bluetooth-module/
[1]
* Arduino IDE: http://learn.makeblock.cc/learning-Arduino [2]
* Scratch For Robot: http://learn.makeblock.cc/learning-scratch [3]
* Makeblock HD App: http://learn.makeblock.cc/learning-APP [4]

Links:
------
[1] http://learn.makeblock.cc/bluetooth-module/
[2] http://learn.makeblock.cc/learning-Arduino
[3] http://learn.makeblock.cc/learning-scratch
[4] http://learn.makeblock.cc/learning-APP


10. Makeblock MegaPi

MegaPi is a microcontroller board based on ATmega2560. With abundant
motor driver interfaces, it can control and combine different kinds of
motors rapidly, drive
10 servos and 8 DC motors/ 4 stepper motors
simultaneously and have a maximum output current of 10A.
MegaPi can be programmed with Arduino software (IDE) or graphical
programming language. It is even better that MegaPi works perfectly
with Raspberry Pi, by which makers will be able to drive motors and
sensors with Python!
With strong motor-driving ability and ease of use, MegaPi is an ideal
option for 3D printer, CNC, robotic project etc.


Makeblock MegaPi (Raspberry Pi, Steering, Microprocessor extension)
Robotics module
CHF52.90

Makeblock MegaPi

Raspberry Pi, Steering, Microprocessor extension
