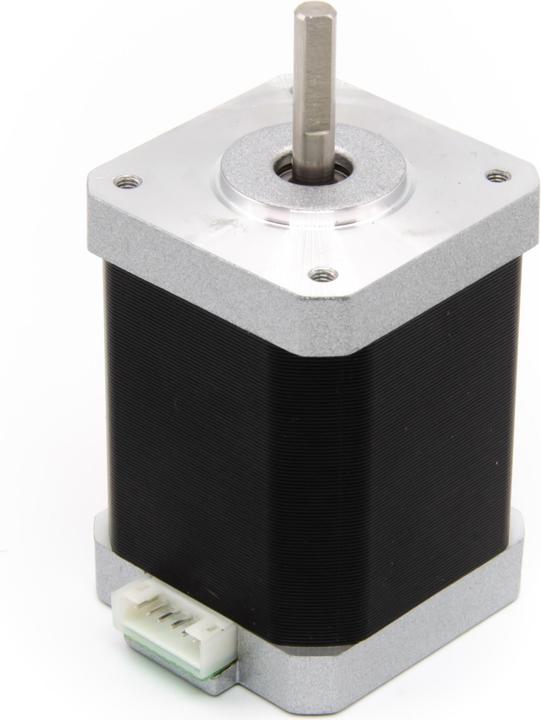

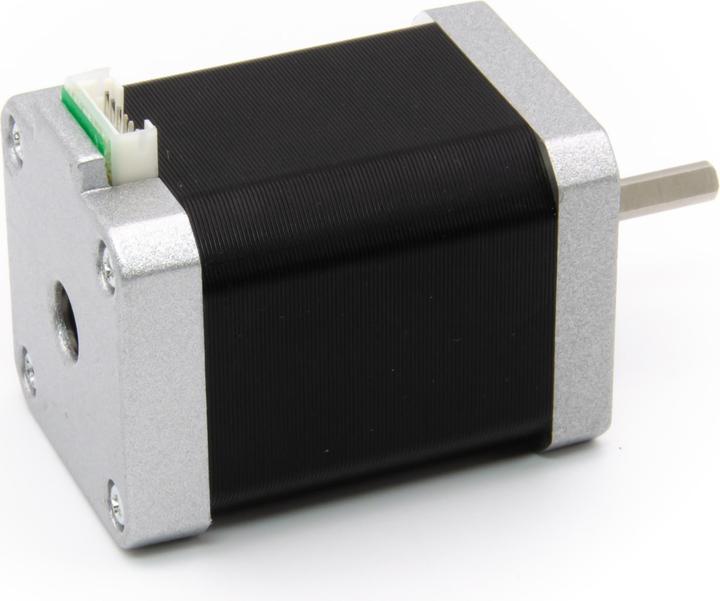

Purecrea 42x42x60mm Stepper Motor Nema 17 42HS60-1704A 1.7A 0.7Nm

Motor
1Ratings
BrandMore from Purecrea
Delivered between Tue, 10.6. and Wed, 11.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

The stepper motor is perfect for 3D printers, CNC machines, or mechanical Arduino projects. If you want to operate the stepper motor with Arduino, we recommend purchasing an A4988, DRV8825, or TMC2208 driver.

Recommended accessories:

  • A4988 stepper motor driver module
  • DRV8825 stepper motor driver module
  • SilentStepStick TMC2208
  • SilentStepStick TMC2209 V2
  • Single stepper motor control board A4988
  • CNC shield A4988 for 3D printers and milling machines (GRBL)
  • GRBL CNC shield V4 Nano for 3D printers and milling machines

Technical details:

  • Model: 42HS60-1704A
  • Shaft length: 20mm
  • Shaft diameter: 5mm
  • Step angle: 1.8°
  • Current consumption: 1.7A per phase
  • Maximum torque: 0.7Nm
  • Size: 42 x 42 x 60mm
  • Weight: 482g

Scope of delivery:
1x 42x42x60mm stepper motor Nema 17 42HS60-1704A 1.7A 0.7Nm (connection cable must be purchased separately).

Key specifications

Engine type
Step motor
Item number
36195794

General information

Manufacturer
Purecrea
Category
Robotics module
Release date
19.6.2023

Robotic Module Features

Module type
Motor
Engine type
Step motor

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 42x42x60mm stepper motor Nema 17 42HS60-1704A 1.7A 0.7Nm

Product dimensions

Length
42 mm
Width
42 mm
Height
60 mm
Weight
482 g

30-day right of return
24 Months Warranty (Bring-in)
