Top rated RC motors
Here's a ranking of the top rated products in this category. To give you a quick overview, we've also added some key information about the products.
1. Hobbywing Speed controller Quicrun 1060
Hobbywing QuicRun WP 1060 60A brush regulator
The regulator is specially designed for beginner and intermediate modelers. It is easy to use but at the same time very robust. It is equipped with automatic throttle calibration. The waterproof and dustproof housing will find use in all weather conditions. Drive in water, snow, dust, or mud without worry!
Reliable hardware combined with advanced software not only ensures high power output but also protects the system from overloads. The QuickRun WP 1060 regulator will find application in many RC vehicles with brush motors. It is dedicated for 1:10 scale models.
Manufacturer: Hobbywing
Model: HW30120201
Scale: 1:10
Continuous / instantaneous current: 60A / 360A
Power supply: 2-3S LiPo / 6-9 Cell NiMH
BEC output: Pulse: 6V / 3A
Input cables: Red - 16AWG - 100mm / Black - 16AWG - 100mm
Output cables: Blue - 16AWG - 100mm *1 / Yellow - 16AWG - 100mm
Input Connector: Large Tamiya connectors
Output connector: Connector 4.0 bullet
Set button on ESC: Inactive
Led Program Box: Inactive
LCD Program box: Inactive
Wifi module: Inactive
Programming port: Jumper Cap
Software update: Inactive
Size: 36.5 x 32 x 18mm
Weight: 39 grams
Dedicated: 1/10th Touring Cars / Buggies / Trucks / Rock Crawlers.
2. Hobbywing Programming box
This LED programming box is suitable for programming HobbyWing brushless controllers. Programming the controllers is simple and quick with this LED programming box. It is small enough to always have it ready for use.
Compatible with the following HobbyWing products:
- Platinum V1/V2 series and FlyFun V5 series of brushless flight controllers
- XeRun series (most), EzRun, and QuicRun series of brushless car controllers
- SeaKing series of brushless boat controllers
Technical specifications:
Note: If the controller does not have a BEC, an external BEC or battery is required for operation.
Dimensions: 88 x 58 x 14 mm
Weight: 40 g
Input voltage: 4.8 V - 8.4 V.
3. Tamiya RS-540 Sport
Thus, it is equally suitable for use in both on-road and off-road environments. It is designed for high RPMs while maintaining low power consumption.

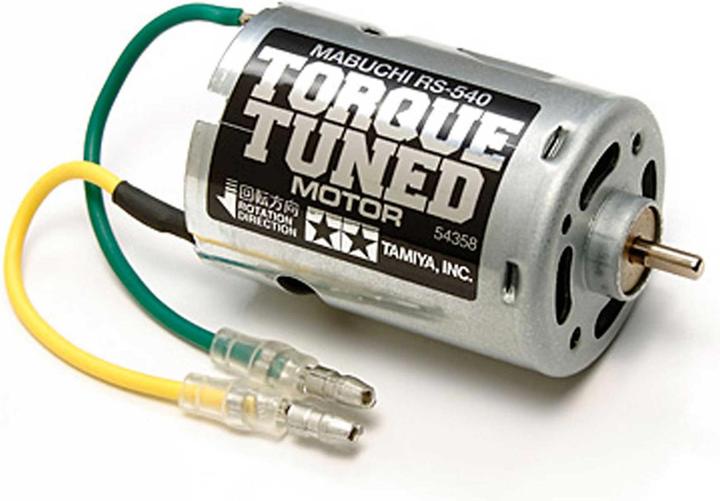

4. Tamiya RS-540
The RS-540 Torque-Tuned Electric Motor from Tamiya is a powerful option for RC vehicles that want to offer improved acceleration and higher top speed. With an optimized design that sits between a standard Type 540 motor and the Sport-Tuned motor, this motor delivers outstanding performance when used with standard gear ratios. The RS-540 features a no-load speed of 2250 kV and a maximum current draw of 10 A, making it ideal for operation with 6-cell NiMH or 2S LiPo batteries. The motor's construction includes a shaft diameter of 3.17 mm and a compact design, making it suitable for various RC applications. Therefore, the RS-540 is an excellent choice for hobbyists who value performance and reliability.
- Optimized performance between Standard Type 540 and Sport-Tuned motor
- No-load speed of 2250 kV for improved efficiency
- Maximum current draw of 10 A for reliable operation
- Suitable for 6-cell NiMH or 2S LiPo batteries
- Compact design with a shaft diameter of 3.17 mm.
5. Hobbywing Quicrun Fusion
The QuicRun Fusion Pro is the evolution and improvement of Hobbywing's first 2-in-1 combo, the standard QuicRun Fusion. It provides a space-saving and lightweight motor and controller in one unit for 1/10 crawlers. Now even stronger and better. Often, space in the vehicle is limited, and there is little room to neatly organize the various cables. But that is finally a thing of the past. With a length of just 58 mm, it is only as large as a typical motor and weighs only 209 g, making it hard to believe that a motor and controller are combined here. Thanks to the intelligent torque and speed control, a crawler with this combo can easily adapt to any situation. Of course, the Fusion Pro is equipped with an excellent waterproof and dustproof casing. This means that the fun truly knows no bounds. Even the electronic switch is appropriately protected. The technology used is called FOC (Field-Oriented Control) and is responsible for this superb driving feel. The performance of this drive has increased by a remarkable 8% compared to its predecessor, and power consumption has even been reduced by 30%. This results in less battery capacity being used and extended driving time.
Features:
- 2-in-1: Motor and controller combined in one
- Compact design ideal for saving space and reducing weight
- Noticeable performance improvement
- FOC drive, ideal for crawlers
- 3 operating modes: Normal (Forward, Reverse with brake), Normal (Forward, Reverse).
6. Hobbywing Quicrun Fusion Combo
The future is here, as Hobbywing introduces the QuicRun Fusion, the first motor for 1/10 rock crawlers that features an integrated controller. Often, space in the vehicle is limited, leaving little room to neatly arrange the various cables. But that is finally a thing of the past. Just about the size of a typical 550 motor and weighing 210 g, you won't even notice that the motor and controller are combined. Thanks to the intelligent torque and speed control, a crawler can easily adapt to any situation. This combination is supported by an excellent waterproof and dustproof casing, ensuring that the fun knows no bounds. Even the electronic switch is appropriately protected. The technology used is called FOC (Field-Oriented Control) and is responsible for this superb control feel. With sinusoidal motor control, both the controller and motor stay cooler, resulting in a silky smooth and quiet motor operation.
7. Hobbywing Brushless drive set Quicrun Fusion SE 1200 kV, Crawler
The integrated design of the ESC and the motor greatly reduces the overall volume and weight, making the layout and wiring of the car frame simpler and more convenient.
The FOC driving mode provides strong low-speed torque, allowing for smooth running at extremely low speeds, which is far superior to common sensored brushless power systems and even better than brushed power.
Thanks to the sine wave driving mode, the entire system achieves high efficiency with minimal heat generation, effectively extending endurance time. Additionally, the motor operates more quietly and smoothly.
The protection grade of the entire system is IP67, offering excellent waterproof and dustproof performance. Under various weather conditions, the system can easily handle complex road surfaces containing silt, ice, snow, and water.
With intelligent torque output and speed closed-loop control, users can fully experience cruise control and steep slope slow descent functions, making control more manageable.
Active drag brake force adjustment provides exceptional parking capacity on slopes.
The system includes multiple protection functions: battery low voltage protection, overheat protection, throttle lost protection, and lock-up protection.
It supports an LED program box to set ESC parameters and features an independent parameter setting interface, which is integrated into the electronic switch for more convenient parameter adjustments.
8. Hobbywing Brushless drive set Quicrun Fusion SE 1800 kV, Crawler
2in1 Brushless Motor with ESC for Rockcrawler. The 2in1 motor and controller combine strong performance with high torque, even at low speeds. It is waterproof and dustproof. The idle speed is 1800 kV, and the maximum current is 40 A. The operating voltage ranges from 7.2 to 12.6 V (2-3S LiPo or 6-9 cells NiMH). The BEC has a power output of 4 A at 6 V / 7.4 V (adjustable).
The SE edition of the regular Quicrun Fusion offers numerous improvements and optimizations made to this special motor/controller combo to maximize the driving experience. Visually, it features an appealing design that is atypical for a Fusion combo.
The Quicrun Fusion SE is compact and has the size of a typical 550 motor, weighing only 201 g, making the combination of motor and controller almost unnoticeable. Thanks to the intelligent torque and speed control, a crawler can easily adapt to any situation. This combo is supported by an excellent waterproof and dustproof casing, ensuring unlimited fun. Even the electronic switch is appropriately protected.
The technology used is called FOC (Field-Oriented Control), which provides an excellent driving feel. The sinusoidal motor control keeps the controller and motor cooler, resulting in a silky smooth and quiet motor operation.
9. Hobbywing Quicrun Fusion 8IGHT for Rock Crawler 2300kV
The HOBBYWING Quicrun Fusion 8IGHT is an innovative 2-in-1 combo specifically designed for 1/8 rock crawlers. This combination of motor and controller offers outstanding performance and efficiency, supported by the FOC (Field-Oriented-Control) system. With a total weight of only 338 g, the compact design not only saves space but also ensures a smooth and consistent driving experience. The ability to adjust the "Drag Brake" force in real-time, along with three operating modes and customizable parameters, makes this product particularly versatile. Additionally, the Quicrun Fusion 8IGHT is waterproof and dustproof, making it ideal for use in demanding environments. The combination of advanced technology and thoughtful design makes this motor and controller an excellent choice for RC enthusiasts.
- 2-in-1: Motor and controller combined in one
- Real-time adjustment of "Drag Brake" force
- Three operating modes with customizable parameters
- Waterproof and dustproof
- Powerful built-in BEC with a maximum output current of 13A.
10. Hobbywing Platinum Pro 180A HV regulator V5 6-14s, 10 A BEC
The Hobbywing Platinum Pro 180A HV Controller V5 is a highly advanced brushless controller specifically designed for use in airplanes and helicopters. With an operating voltage range of 22.2 V to 60 V and the ability to work with 6-14S LiPo batteries, this controller offers impressive performance and flexibility. The integrated 10A BEC allows for an adjustable voltage of 5 to 12 V, making it a versatile choice for various applications. The controller is equipped with a powerful 32-bit processor, which, combined with a specially developed algorithm, ensures precise speed regulation. This sets the Platinum V5 apart from other controllers and guarantees consistent and reliable operation. Additionally, the controller supports multiple data protocols, including the Mikado VBar system and Futaba S.BUS2, enabling easy data transmission and analysis. The ability to log data and access it via Bluetooth on a smartphone provides additional convenience for the user.
- 32-bit processor for precise speed regulation
- 16 adjustable parameters with 4 flight modes
- Supports multiple data protocols for easy data transmission
- Integrated 10A S-BEC with adjustable voltage
- Data logging and Bluetooth access for smartphone.
