Top rated Lab power supplies
Here's a ranking of the top rated products in this category. To give you a quick overview, we've also added some key information about the products.
1. Peaktech P 6225 A Switched-mode power supply unit
This laboratory power supply offers a variable DC voltage output of 0 - 30 V or 0 - 5 A. The current and voltage settings are made using digital potentiometers, allowing both values to be adjusted even when the output sockets are turned off. By pressing the respective rotary knob for current or voltage, the setting resolution can be switched from 10 mA to 100 mA or from 10 mV to 1 V. To ensure safe measurement, there is a button on the front of the PeakTech 6225 A that is used to control the output voltage on and off. The display also indicates when the output is active. Another notable feature is the CV (Constant Voltage) and CC (Constant Current) function of the power supply. With this function, the voltages and currents can be set to constant values that do not change when a load is connected. These features make the PeakTech 6225 A an outstanding companion for any hobbyist in electronics, as well as for any specialist.
2. Peaktech P 6226 Switched-mode power supply unit
This laboratory power supply offers an adjustable DC voltage output of 0 - 30 V or 0 - 10 A. The current and voltage settings are made via digital potentiometers, allowing both values to be adjusted even when the output sockets are turned off. By pressing the respective rotary knob for current or voltage, the setting resolution can be switched from 10 mA to 100 mA or from 10 mV to 1 V. To ensure safe measurements, there is a button on the front of the PeakTech 6226 that is used to control the output of the voltage. The display also indicates when the output is active. With the CV and CC functions, the voltages and currents can be set to constant values that do not change when a load is connected. These features make the PeakTech 6226 a remarkable companion for any hobbyist electronics enthusiast as well as for any specialist.
3. Peaktech P 6227 Switched-mode power supply unit
This newly developed laboratory power supply offers an adjustable 0...60V or 0...6A DC main output with a maximum continuous power of 150W. For developers, this lab power supply offers two switchable USB outputs with their own LCD display with voltage and current values. If you use a load up to 2.5A, you can regulate the output voltage up to 60V. If you want to use a higher current up to 6A, regulate the load to a maximum of 25V. Of course, all levels in between are also adjustable, such as 30V/5A, 40V/3.7A or 50V/3A. The current and voltage setting is also done when the output is switched off. By pressing the rotary knob for current or voltage, the setting resolution can be switched fine/coarse from 1mA to 100mA or 10mV to 1V. Due to the high range of functions and the simple operation with the best price/performance ratio, this laboratory power supply is ideal for the training, hobby, developer and service area.
4. Peaktech P 6160 Schaltnetzgerät
This laboratory power supply features a voltage output of 1 - 30 V and can deliver a current of up to 30 A. The LCD display, equipped with a backlight, ensures that all set values are optimally displayed and easily visible at all times. Only currents of up to 5 Amperes can be drawn from the front sockets. At the terminal blocks located at the back, it is possible to allow currents of up to 30 Amperes to flow. Thanks to this capability of delivering such high currents, this laboratory power supply is almost indispensable in both professional and advanced hobby sectors.
5. Peaktech P 6155 Schaltnetzgerät
This laboratory power supply features a voltage output of 1 - 30 V and can deliver a current of up to 20 A. The rotary knobs allow for quick and easy adjustment of the output voltage. The LCD display, which has a backlight, optimally presents all set values and makes them clearly visible at all times. Only currents of up to 5 amperes can be drawn from the front sockets. At the terminal blocks located at the back, it is possible to allow currents of up to 20 amperes to flow.

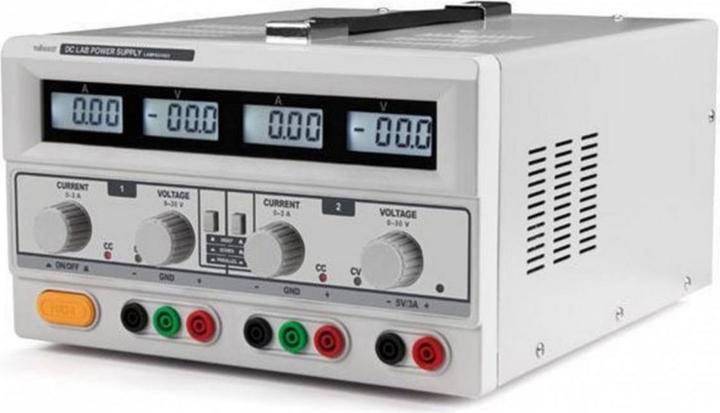

6. Velleman Dc Dual Laboratory Power Supply Unit
Qualities
- LCD display for voltage and current
- Protection mode: current limitation
- Colour: white-grey
- Safety sockets
- Output sockets: IEC1010
- Only suitable for indoor use
- Pollution degree II
- Fused
Technical Specifications
- Input voltage: 230 VAC 50 Hz 2.0 A 300 W pf: 0.78
- Output voltage: 2 x 0-30 VDC max. adjustable + 5 VDC fixed
- Output current: 2 x 0-3 A max. adjustable + 1 x 3 A fixed
- Residual ripple: =/< 1 mV
- Fuse: T4 / 250 V
- Max. relative humidity: < 90
- Height: max. 2000 m
- Operating temperature: 5°C - 40°C
- Dimensions: 360 × 265 × 165 mm
- Weight: 7.139 kg.
7. Joy-it Joy it Lab Power Supply, Adjustable DPS5005 Lab Power Supply Complete Set
The device features internal memory and a color 3.6 cm (1.44") OLED display to show you all relevant data. All necessary settings are adjusted via three buttons and a rotary knob. The high precision and compact design allow for a wide range of applications. This set includes a metal housing, a BT radio and USB module, as well as a sturdy case.
Lab power supply
CHF85.95
Joy-it Joy it Lab Power Supply, Adjustable DPS5005 Lab Power Supply Complete Set
8. Joy-it DPS5005
This programmable voltage control module with constant voltage and constant current combines analog integration and digital control functions in one device. It features internal memory and a color OLED display measuring 3.6 cm (1.44 inches) for displaying important data. All necessary settings are made using three buttons and a rotary knob.
This high-precision and compact design allows for a wide range of applications. High-quality components and the possibility of communication interfaces distinguish this power supply. Additionally, you can enhance the laboratory power supply with optional housing, Bluetooth, and USB modules. This way, your laboratory power supply gets a suitable enclosure, and you can communicate with the power supply via USB or Bluetooth, retrieve data, and make adjustments.
9. Joy-it Joy it laboratory power supply, Step Up/ Down 0 50 V 5 A 250 W USB, screw terminal, Bluetooth®
The device features internal storage and a color 3.6 cm (1.44") OLED display to show you all relevant data. All necessary settings are adjusted using three buttons and a rotary knob. The high precision and compact design allow for a wide range of applications. This set also includes a USB module, a BT radio module, and a housing. The delivery comes in a sturdy plastic case.
Lab power supply
CHF101.95
Joy-it Joy it laboratory power supply, Step Up/ Down 0 50 V 5 A 250 W USB, screw terminal, Bluetooth®
10. Joy-it Joy it Lab Power Supply, Step Up/ Down iT UP /
The device features internal storage and a color 3.6 cm (1.44") OLED display to show you all relevant data. All necessary settings are adjusted via three buttons and a rotary knob. Its high precision and compact design allow for a wide range of applications. High-quality components and the ability to integrate optional communication interfaces distinguish this laboratory power supply. An optional USB or Bluetooth wireless module, as well as a suitable housing, are available.
