Best selling Video monitors from Portkeys
On this page you’ll find a ranking of the best Video monitors from Portkeys. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

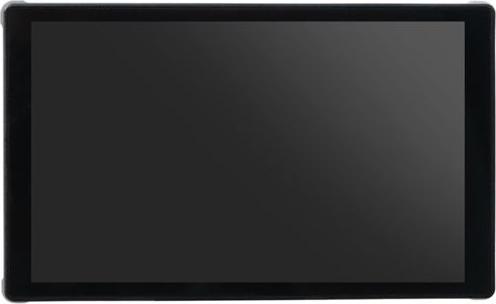

1. Portkeys PT5 II
Portkeys PT5 II with 5" and 4K and HDMI touchscreen monitorThe Portkeys PT5 II is a 5-inch touchscreen monitor with a wide colour gamut for entry-level camera technology. This HDMI-only monitor has a maximum brightness of 500 nits and can run for hours on Sony NP-F or Canon LP-E6 batteries. The compact and robust design is ready for your next creative adventures and houses a complete set of professional monitoring toolsFeatures: -DSLR monitor -Screen diagonal: 5" / 12.7 cm -Resolution: 1920 x 1080 -Brightness: 500 cd/m2 -Contrast ratio: 1000:1 -Viewing angle horizontal / vertical: 178° / 178° -Aspect ratio: 16:9 -Connections: 1x HDMI input / 1x HDMI output / headphone connection -Dimensions: 72 x 136 x 18.3 mm -Weight: 150 g.
2. Portkeys LS7P
The Portkeys LS7P is a robust and durable 7-inch touchscreen camera monitor made entirely of aluminum. The tempered glass protects against scratches. The LS7P features wireless camera control functions and customizable function buttons. With dimensions of 176.2 x 103.8 x 39.3 mm, the LS7P is very compact and meets professional standards.
It impresses with precise and true-to-life color reproduction with high detail richness without color casts, as well as professional monitor functions. Outdoor recordings are possible.
Main features:
- 7-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a contrast ratio of 1000:1
- Maximum brightness of 1000 Nits, 100% Rec.709 and 85% DCI-P3 coverage, viewing angle of 80 degrees from all sides
- Input: 1x 4K HDMI (max 4K DCI at 30 fps), 1x 3G-SDI (max FullHD 1080 at 60 fps)
- Output: 1x HDMI (max FullHD 1080 at 60 fps), 1x 3G-SDI (max FullHD 1080 at 60 fps)
- Cross-conversion possible
- Professional tools: Log Stops, Waveform, Histogram, Zebra, Peaking, ARRI False Color, and custom mode
- 3D LUT. Monitoring tools can be set before or after the 3D LUT. Loading LUTs via USB is possible
- Image capture and overlay, anamorphic image de-squeeze
- Frame guides, grids, cropping, aspect ratios, and automatic image flipping
- Wireless camera control for ARRI, RED, Sony, Nikon, Canon, Panasonic, and Blackmagic cameras
- Touchscreen autofocus (wireless) is available for selected cameras from Sony, Nikon, RED, Canon, Panasonic, and Blackmagic Design
- Battery plate for Sony NP-F batteries
- 7.4 - 24 V power input and output (DC 5.5 mm connector), 5 V USB-A power input, 1x 3.5 mm audio output
- Low power consumption of only 13 W
- Lightweight and robust aluminum housing weighing only 409 g
Included in delivery:
1x LS7P
1x Safety Box
1x 2.4G Mini Antenna
1x Mini USB Stick
1x Screen Wipes
1x D-Tap to Scre DC Power Cable
1x Screen Protector.
3. Portkeys LH5C
The Portkeys LH5C is a lightweight 5.4-inch touchscreen camera monitor, ideal for content creators and filmmakers. Weighing only 178 grams, it features a polycarbonate and ABS housing. The tempered glass protects against scratches. With dimensions of 135.1 x 82.5 x 22 mm, the LH5C is very compact. It is packed with professional tools, customizable function buttons, and offers wired camera control functions.
It impresses with precise and true-to-life color reproduction with high detail richness without color casts, as well as professional monitoring features.
Key Features:
- 5.4-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1152 and a contrast ratio of 1000:1
- Maximum brightness of 800 Nits, coverage: 100% of Rec.709 and 85% of the DCI-P3 color space, viewing angle of 178 degrees
- 1x 4K HDMI input (4K DCI at 30 fps, 4K UHD at 30 fps, Full HD 1080 at 60 fps, 4K oversampling to 1080p)
- 1x HDMI output (Full HD 1080 at 60 fps)
- Professional tools: Waveform, histogram, zebra, peaking, ARRI false color, and custom mode
- 3D LUT monitoring and 3D LUT HDMI output. Loading LUTs via USB is possible
- Image capture and overlay, anamorphic image de-squeeze
- Frame guides, grids, cropping, aspect ratios, and automatic image inversion
- Battery plate for Sony NP-F batteries
- 7.4 - 24 V power supply, 5 V USB-C power input, 1x USB-A, 1x 3.5 mm audio output
- Low power consumption of only 7.5 W
- Lightweight and robust ABS plastic housing weighing just 178 g
Included in the package:
1x LH5C Monitor
1x Safety Box
1x Sunshade
1x Micro USB Flash Drive
1x MH-2 Mount
1x Protective Rubber Cover
1x USB-C Control Cable
1x LANC Control Cable.

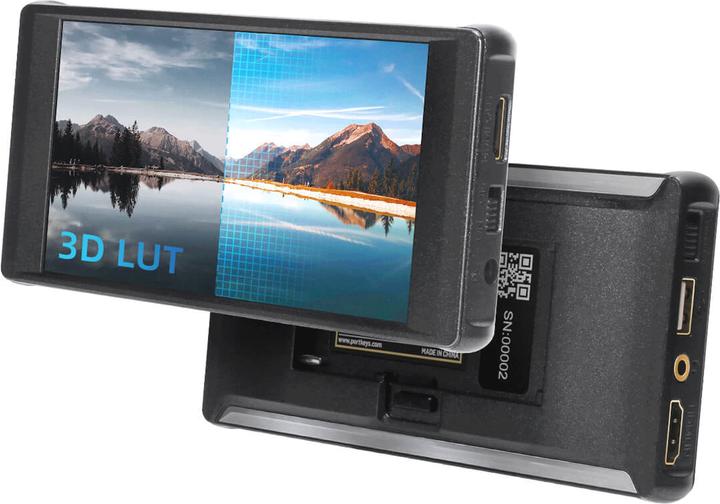

4. Portkeys PT6
The Portkeys PT6 is a lightweight 5.2-inch touchscreen camera monitor, ideal for content creators and filmmakers. Weighing only 170 grams thanks to its polycarbonate housing, the hardened glass protects against scratches. With dimensions of 150.7 x 77.8 x 18.5 mm, the PT6 is very compact yet packed with professional tools.
It impresses with its precise and true-to-life color reproduction, offering a high degree of color detail without color casts, making it perfect for indoor shoots or in a controlled studio environment.
Key features:
- 5.2-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a contrast ratio of 1500:1
- Maximum brightness of 600 Nits, 100% DCI-P3 coverage, 178-degree viewing angle
- 1x 4K HDMI input (4K DCI at 24 fps, 4K UHD at 30 fps)
- 1x HDMI output (Full HD 1080 at 60 fps)
- Professional tools: Waveform (RGB, Luma), histogram, peaking, false color and ARRI false color, zebra
- 3D LUT monitoring and 3D LUT HDMI output. Loading LUTs via USB is possible
- Anamorphic image de-squeeze
- Frame guides, grids, aspect ratios, and automatic image flipping
- Battery plate for Sony NP-F or Canon LP-E6 batteries
- 7.4 - 24 V power input (DC 5.5 mm socket), 5 V USB-A power input, 1x 3.5 mm audio output
- Low power consumption of only 6 W
- Lightweight and robust ABS plastic housing weighing just 170 g
Included in the package:
1x PT6 Monitor
1x PT6 Sunshade
1x HDMI to HDMI Cable
1x Micro HDMI to HDMI Cable
2x Pairs of Rubber Covers
1x MH-2 Mount
1x Safety Box.
5. Portkeys NP-F zu V-Mount Adapter
The Portkeys NP-F to V-Mount Adapter is an innovative solution for powering devices with an NP-F battery compartment using V-Mount batteries. This compact adapter is made from a durable combination of aluminum and ABS, making it lightweight yet resilient. It is perfect for mobile shooting or streamlined rig setups. With a stabilized output of 8 volts and a current of up to 2 amps, the adapter is ideal for monitors, camera accessories, and other devices that rely on NP-F power. The flexible mounting concept allows for easy attachment in both vertical and horizontal orientations, enabling seamless integration into existing rigs. This functionality makes the adapter a practical choice for anyone looking to power their equipment more efficiently and for longer periods.
- Compact design for easy handling
- Robust housing made of aluminum and ABS
- Stable 8-volt output with up to 2 amps
- Flexible mounting options for various rig setups.

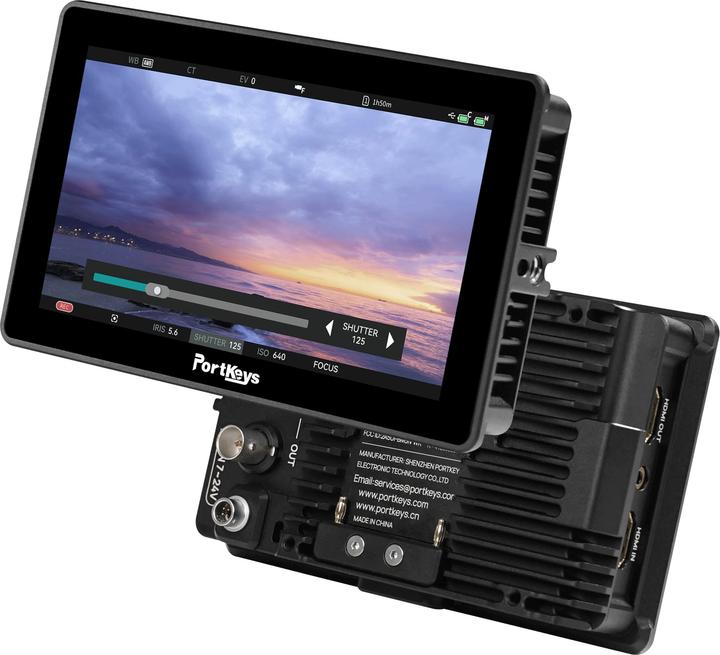

6. Portkeys BM5IV
The Portkeys BM5IV is a robust and durable 5.5" touchscreen camera monitor made entirely of aluminium. At the same time, the tempered glass protects it from scratches. The BM5IV has wired camera control functions. With dimensions of 145.4 x 91.4 x 39.6 mm, the BM5IV II is very compact. This monitor fulfils professional requirements. It impresses with its precise and true-to-life colour reproduction with a high level of detail without colour casts and its professional monitor functions with freely assignable function keys. Outdoor recordings in direct sunlight are possible without any problems. Key features: - 5.5 inch, 10-bit (8+2 FRC) panel with a resolution of 1920x1080 and a contrast ratio of 1000:1 - Maximum brightness of 2000nits, 100% Rec.709, 85% P3-D65 and 85% DCI-P3 coverage, viewing angle of 178 degrees - Input: 1x 4K HDMI (max 4K DCI at 60fps), 1x 3G-SDI (max FullHD 1080 at 60fps) - Output: 1x 4K HDMI (max 4K DCI at 60fps), 1x 3G-SDI (max FullHD 1080 at 60fps) - Cross-conversion possible - Professional tools: Waveform, Histogram, Zebra, Peaking, Vectorscope, False Colour (ARRI, LOG and user-defined mode) - 3D LUT monitoring and 3D LUT SDI output. Loading of LUTs via USB possible - Anamorphic image de-squeeze - Framing tools: Crosshair, control panel, guides, grid, cropping, rectangle cropping, audiometer - Cinerom OS with up to 7 user-defined pages - Split-screen options with multiple display modes (up to 7 pages)Split screen options with multiple display modes (PBP, PIP and H2V) - Wired camera control for RED, Sony, Canon, Panasonic, BMD and ZCAM E2 - Tilta Nucleus N/M wireless follow focus control with cable - Battery plate for Sony NP-F batteries - 7.4 - 24 V power input (4 pin Lemo), 5 V USB-A power input, 1x 3.5 mm audio output - Low power consumption of only 16 W - Lightweight and robust aluminium housing weighing only 358 g.

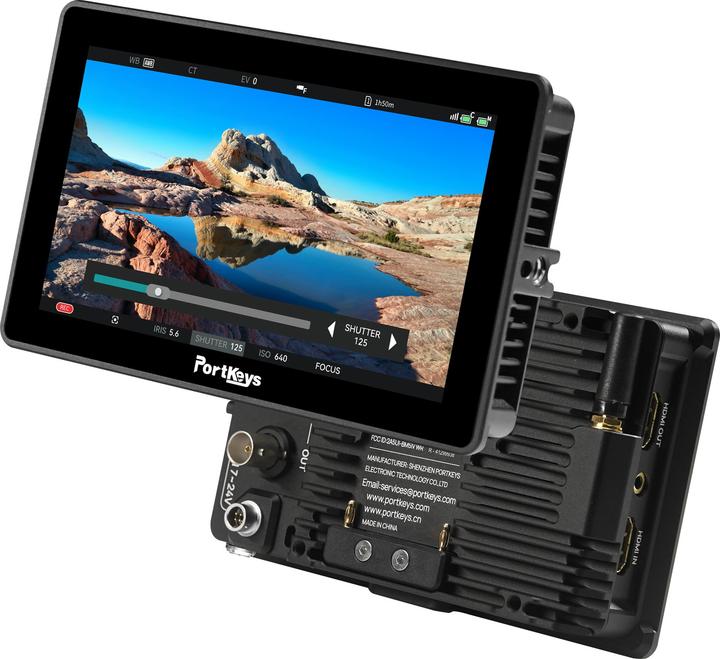

7. Portkeys Bm5iv Wr
The Portkeys BM5IV WR is a robust and durable 5.5" touchscreen camera monitor made entirely of aluminium. At the same time, the tempered glass protects it from scratches. The BM5IV WR has wired/wireless camera control functions. With dimensions of 145.4 x 91.4 x 39.6 mm, the BM5IV WR is very compact. This monitor fulfils professional requirements. It impresses with its precise and true-to-life colour reproduction with a high level of detail without colour casts and its professional monitor functions with freely assignable function keys. Outdoor recordings in direct sunlight are possible without any problems. Key features: - 5.5 inch, 10-bit (8+2 FRC) panel with a resolution of 1920x1080 and a contrast ratio of 1000:1 - Maximum brightness of 2000nits, 100% Rec.709, 85% P3-D65 and 85% DCI-P3 coverage, viewing angle of 178 degrees - Input: 1x 4K HDMI (max 4K DCI at 60fps), 1x 3G-SDI (max FullHD 1080 at 60fps) - Output: 1x 4K HDMI (max 4K DCI at 60fps), 1x 3G-SDI (max FullHD 1080 at 60fps) - Cross-conversion possible - Professional tools: Waveform, Histogram, Zebra, Peaking, Vectorscope, False Colour (ARRI, LOG and user-defined mode) - 3D LUT monitoring and 3D LUT SDI output. Loading of LUTs via USB possible - Anamorphic image de-squeeze - Framing tools: Crosshair, control panel, guides, grid, cropping, rectangle cropping, audiometer - Cinerom OS with up to 7 user-defined pages - Split-screen capabilities with multiple display modes (PBP, PIP and H2V) - Wireless camera control forARRI, RED, Sony, Nikon, Canon, Panasonic and Blackmagic Design cameras - Wired camera control for RED, Sony, Canon, Panasonic, BMD and ZCAM E2 - Tilta Nucleus N/M wireless follow focus control with cable - Battery plate for Sony NP-F batteries - 7.4 - 24 V power input (4 pin and 2 pin Lemo), 5 V USB-A power input, 1x 3.5 mm audio output - Low power consumption of only 17 W - Lightweight and robust aluminium housing weighing only 362 g.
8. Portkeys Bm7 Ii Ds
The Portkeys BM7 II DS is a robust 7-inch touchscreen monitor and an advancement of the BM5 III WR. The monitor features a maximum brightness of 2,200 Nits, HDMI input and output ports, two SDI inputs, and one SDI output with HDMI cross-conversion, as well as wired and wireless camera control functions. You can monitor two video inputs simultaneously. Professional monitoring tools include Waveform, Vectorscope, Anamorphic, Peaking, and ARRI False Color. It also supports 3D LUT monitoring and 3D LUT SDI output functions.
9. Portkeys LH5C Monitor
The Portkeys LH5C Monitor is a highly advanced control tool specifically designed for professional video productions. With a 5.4-inch display and 10-bit color processing, this monitor allows for precise assessment of image content by making subtle color nuances visible. The high brightness ensures clear representation even in outdoor shoots. Thanks to its compact design, the monitor is ideal for mobile filming and provides reliable image control that is often lost on small camera displays. The HDMI integration allows for flexible use, while the built-in support for Rec.709 promotes consistent color representation in typical production pipelines. With extensive analysis tools, including 3D LUT functionality and DeSqueeze options, evaluating exposure and sharpness is significantly easier.
- 5.4-inch display for precise image control
- 10-bit color processing for fine nuances
- High brightness for outdoor shooting
- Extensive analysis tools for professional assessment.
10. Portkeys PL5 5.4 Zoll Live Stream Monitor
Portkeys PL5: The Compact and Versatile Monitor
The Portkeys PL5 is a compact and lightweight 5.4-inch touchscreen monitor, ideal for use in various environments. With its professional monitoring tools and the ability to be powered by a single Sony NP-F battery, it offers a range of features that are useful for both professional and personal use.
Outstanding Image Quality
The monitor features a 10-bit panel (8+2 FRC) with a resolution of 1920 x 1152 and a contrast ratio of 1000:1. With a maximum brightness of 500 Nits and a wide viewing angle of 178 degrees, the PL5 delivers impressive image quality that performs well even in challenging lighting conditions.
Versatile Connectivity Options
The PL5 is equipped with an HDMI input and output, a USB 3.0 Type-C video output, as well as a 3.5mm audio input and output. These connectivity options allow for easy integration into various setups and provide flexibility in usage.
Features:
- 5.4-inch 10-bit panel (8+2 FRC) with a resolution of 1920×1152 and a contrast ratio of 1000:1
- Maximum brightness of 500 Nits for clear visibility
- HDMI input and output for versatile connectivity options
- USB 3.0 Type-C video output for live streaming
- 3.5mm audio input and output for audio monitoring
- Maximum input resolution of 4K DCI at 30p
- Maximum output resolution of 1080P60
- Low power consumption of only 7W
- Lightweight and durable ABS plastic housing weighing just 154.4g
- Dimensions (W x H x D): 135.1 × 82.5 × 22mm
- Weight: 154.4g.
