Portkeys Bm5iv Wr

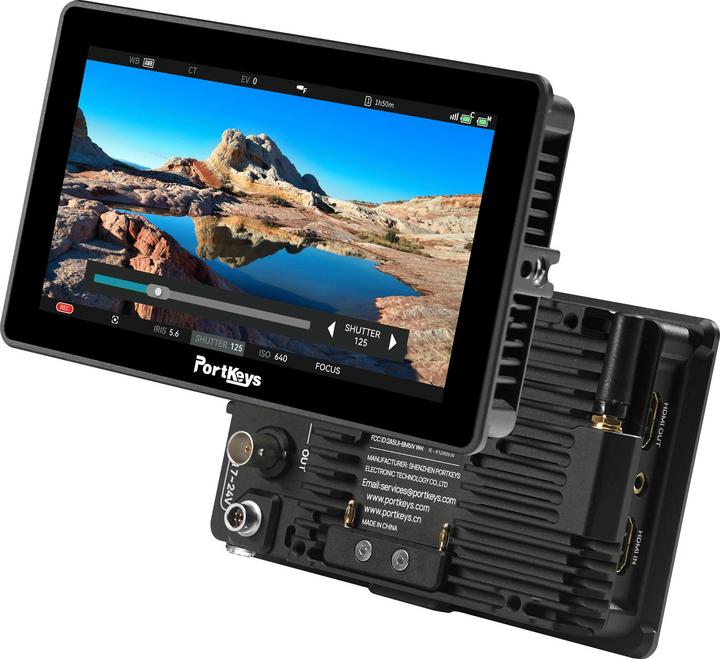

The Portkeys BM5IV WR is a robust and durable 5.5" touchscreen camera monitor made entirely of aluminium. At the same time, the tempered glass protects it from scratches. The BM5IV WR has wired/wireless camera control functions. With dimensions of 145.4 x 91.4 x 39.6 mm, the BM5IV WR is very compact. This monitor fulfils professional requirements. It impresses with its precise and true-to-life colour reproduction with a high level of detail without colour casts and its professional monitor functions with freely assignable function keys. Outdoor recordings in direct sunlight are possible without any problems. Key features: - 5.5 inch, 10-bit (8+2 FRC) panel with a resolution of 1920x1080 and a contrast ratio of 1000:1 - Maximum brightness of 2000nits, 100% Rec.709, 85% P3-D65 and 85% DCI-P3 coverage, viewing angle of 178 degrees - Input: 1x 4K HDMI (max 4K DCI at 60fps), 1x 3G-SDI (max FullHD 1080 at 60fps) - Output: 1x 4K HDMI (max 4K DCI at 60fps), 1x 3G-SDI (max FullHD 1080 at 60fps) - Cross-conversion possible - Professional tools: Waveform, Histogram, Zebra, Peaking, Vectorscope, False Colour (ARRI, LOG and user-defined mode) - 3D LUT monitoring and 3D LUT SDI output. Loading of LUTs via USB possible - Anamorphic image de-squeeze - Framing tools: Crosshair, control panel, guides, grid, cropping, rectangle cropping, audiometer - Cinerom OS with up to 7 user-defined pages - Split-screen capabilities with multiple display modes (PBP, PIP and H2V) - Wireless camera control forARRI, RED, Sony, Nikon, Canon, Panasonic and Blackmagic Design cameras - Wired camera control for RED, Sony, Canon, Panasonic, BMD and ZCAM E2 - Tilta Nucleus N/M wireless follow focus control with cable - Battery plate for Sony NP-F batteries - 7.4 - 24 V power input (4 pin and 2 pin Lemo), 5 V USB-A power input, 1x 3.5 mm audio output - Low power consumption of only 17 W - Lightweight and robust aluminium housing weighing only 362 g.
