Best Eaton products in the Timers category
On this page you'll find a ranking of the best Eaton products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

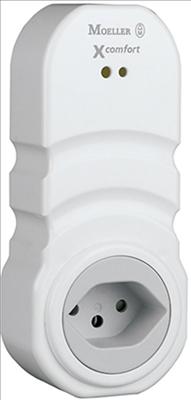

1. Eaton Dimmer plug ph. section T13 250W
The Eaton dimmer plug is a remote-controlled intermediate plug that allows for easy and flexible control of electrical devices. With a maximum power consumption of 250 watts, this dimmer plug is ideal for use with various lights and electrical devices in your home. The plug is designed for a mains voltage of 230 volts and offers a user-friendly solution for adjusting brightness and remotely controlling connected devices. The 868 MHz radio transmission ensures reliable communication with other smart home devices, facilitating integration into existing systems. Its compact design and neutral white color blend harmoniously into any environment.
- Remote-controlled via 868 MHz radio
- Compatible with smart home systems
- Maximum power consumption of 250 watts
- Easy integration into existing electrical systems.

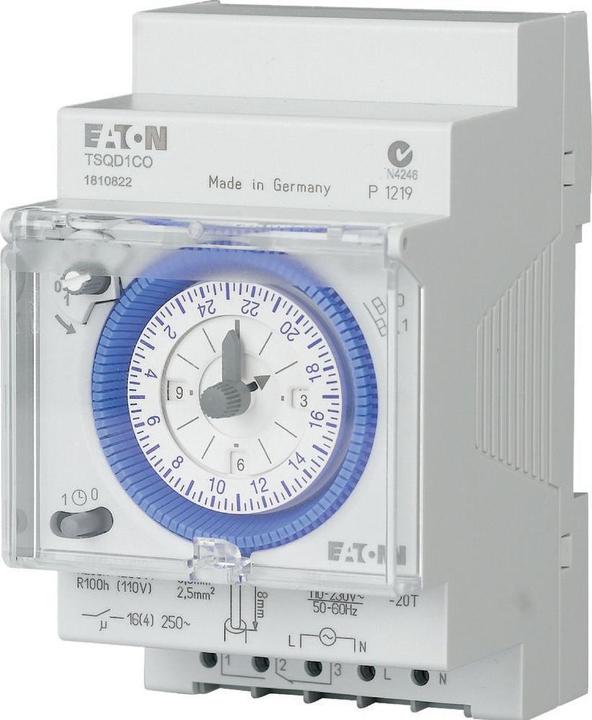

2. Eaton Analogue timer, synchronous, day, 1 167391
Eaton analogue time switch TSSD1CO
Manufacturer: Eaton
Designation: Analogue time switch
Type: TSSD1CO
Mounting type: DIN rail
Number of channels: 1
Supply voltage: 230 V
Supply voltage type: AC
Frequency of supply voltage: 50 Hz
Rate accuracy per day: 0 s
60 min programme: No
24 h programme: Yes
Weekly programme: No
Annual programme: No
Mains-synchronous: Yes
Quartz-controlled: Yes
Shortest switching time channel 1: 15 min
Shortest switching time channel 2: 0 min
Programme segment division 1: 15 min
Programme segment division 2: 0 min
Automatic summer/winter time changeover: No
Suitable for manual operation: Yes
Circuit preselection: Yes
Rated switching current at 250 V AC: 16 A
Max. switching capacity LED: 600 W
Potential-free switching capacity: 600 W
Floating switch contact: Yes
Protection class (IP): IP20
Width in graduation units: 3
Width: 54 mm
Height: 90 mm
Depth: 65.6 mm
Eaton TSSD1CO analogue time switch:
Time switch for in-line installation without power reserve, width 52.5 mm, 24-hour programme, shortest switching time 15 min, clock hand for time display and 12h/24h recognition, clockwise and counterclockwise time correction possible, switching preselection, manual switch with 3 positions: Permanent ON/AUTO/Permanent OFF, switching status display, DuoFix spring-loaded terminals for 2 conductors each, 1 changeover contact 16 A/250 V~, 230 V / 50 Hz, transparent cover can be sealed.
3. Eaton EATO timer
The EATO timer from Eaton is a mechanical rail-mounted timer designed for reliable control of electrical devices. With a reserve time of approximately 200 hours and a 24-hour program, it allows for precise time management. The shortest switching time is 15 minutes, enabling flexible adaptation to various applications. The timer features a clear time display with hands and supports both 12-hour and 24-hour formats. The time can be adjusted both clockwise and counterclockwise, making it user-friendly. The pre-selection of switching and the ability to manually toggle between the positions ON, AUTO, and OFF provide additional flexibility. The DuoFix spring-loaded terminals allow for easy and secure connection of up to two conductors. This timer is ideal for use in various electrical applications and offers a robust and user-friendly solution.
- Mechanical timer with 200 hours reserve time
- 24-hour program with a shortest switching time of 15 minutes
- Time adjustment possible in both clockwise and counterclockwise directions
- Manual switching between ON, AUTO, and OFF
- DuoFix spring-loaded terminals for easy wiring.
4. Eaton Timer module, 200-240 V AC, 0.5-10 s, 104945
The Eaton time module is a mechanical timer designed for a variety of applications. With a time range of 0.5 to 10 seconds, this device allows for precise control of electrical loads. The timer features a delayed reset function and is auxiliary voltage-free, meaning it can operate without additional power supply. It is not compatible with mounting auxiliary switches and offers protective circuits that enhance operational safety. The installation position is flexible, but it is not suitable for suspended installations. With an IP20 protection rating, the time module is suitable for use in dry indoor environments. The product is lightweight and compact, making installation easier and allowing it to be used in various applications.
- Delayed reset function for precise control
- Auxiliary voltage-free, no additional power supply required
- Protective circuits for increased operational safety
- Flexible installation position, but not suitable for suspended installations.

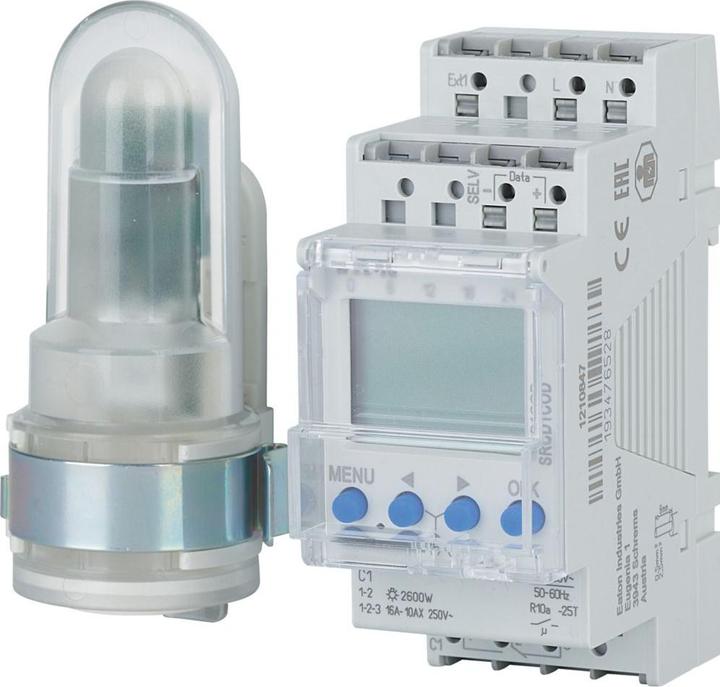

5. Eaton 196847
The digital twilight switch from Eaton, model 196847, is an advanced solution for automated control of outdoor lighting. With an integrated weekly timer, this device allows for precise programming of lighting based on ambient light conditions. The external light sensor detects the surrounding brightness and adjusts the switching times accordingly. Installation is straightforward on a DIN rail, and the included 1.5-meter connection cable simplifies setup. The switch is designed for outdoor use and offers an IP55 protection rating, safeguarding it against weather influences. The programming is flexible, allowing different lux values to be set for each day of the week, enabling customization to various requirements. Additionally, the switch features an adjustable on and off delay to prevent misoperations caused by external factors.
- Integrated weekly timer with programmable lux values for each day of the week
- External light sensor for precise lighting control
- Adjustable on and off delay to prevent misoperations
- IP55 protection rating for outdoor use
- Easy installation on DIN rail with included connection cable.

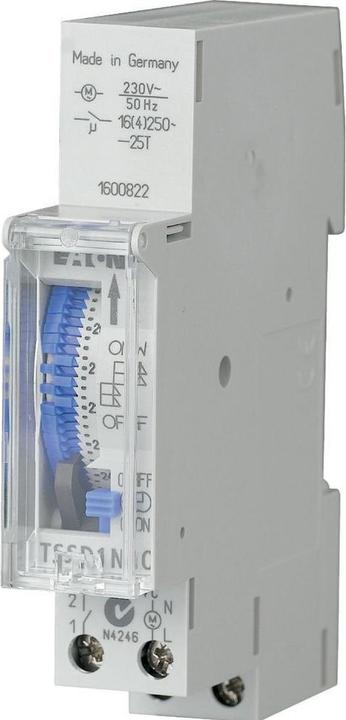

6. Eaton Tssd1no
The mechanical timer Tssd1no from Eaton is a reliable solution for the time-controlled operation of electrical devices. With a width of 17.5 mm, it is designed for rail mounting and can be easily installed on a DIN rail. This timer features a 24-hour segment program that allows for flexible adjustment of switching times. The shortest switching time is 15 minutes, ensuring precise control of connected devices. The transparent cover is sealable, providing additional security and protection against unauthorized access. The Tssd1no is designed for mains operation and has a rated voltage of 230 volts, making it a practical choice for various applications.
- Mechanical timer with 24-hour segment program
- Shortest switching time of 15 minutes
- Permanent switch function for ON/OFF
- Sealable transparent cover for additional protection.

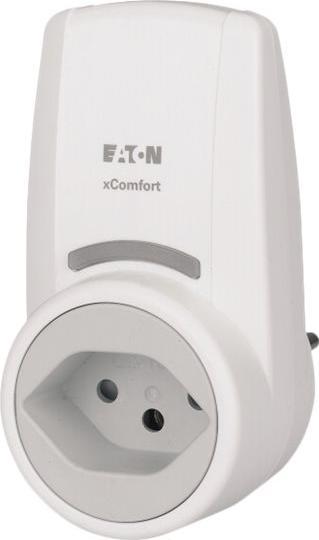

7. Eaton xComfort Dimming Plug R/L/C/LED EMS S13
There is someone who is always there for you: who closes the shutters in the evening and retracts the awning when a storm warning is issued. Who adjusts the heating to a comfortable temperature before you come home. Who skillfully sets the lighting, prevents electromagnetic pollution, and cuts off power to standby devices. The intelligent xComfort building automation system turns your home into a comfortable energy-saving building.
8. Eaton Digital Astro Timer, DIN- 196850
The digital Astro timer from Eaton is a state-of-the-art device specifically designed for the precise control of electrical devices. It features a user-friendly, text-oriented interface and a backlight that makes it easy to use even in low light conditions. With a factory-set time and an extensive database of city names, this timer allows for automatic adjustment to sunrise and sunset times. The integrated summer/winter time adjustment ensures that the timer always functions correctly. The ability to create a weekly program and deactivate the astro function provides additional flexibility. With 54 memory slots and an interface for memory card/PC, the timer is ideal for custom programming. Its robust construction and tamper-proof transparent cover ensure high security and durability.
- Astronomical program with automatic adjustment to sunrise and sunset times
- 54 memory slots for custom programming
- PIN encryption for enhanced security
- Operating hour counter for monitoring light sources
- DuoFix terminal blocks for easy installation.

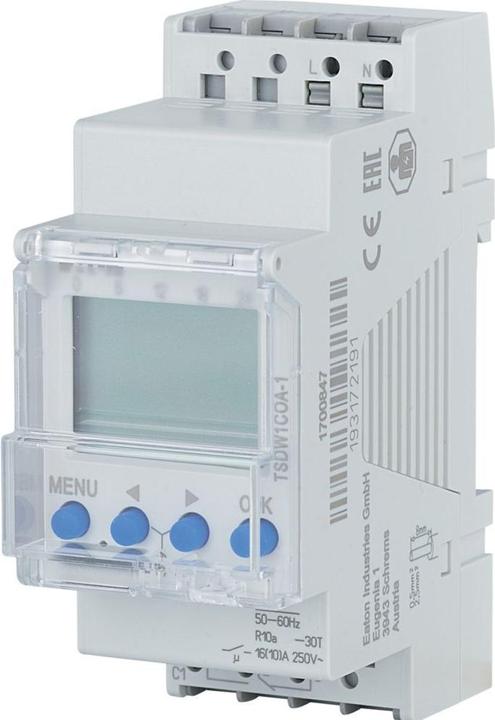

9. Eaton TSDW1CO-1
The Eaton TSDW1CO-1 digital timer is a versatile and reliable device designed for mounting on a DIN rail. It features a user-friendly, text-oriented display that allows for precise programming of switching times. With 56 memory slots and the capability for PC programming via a memory card, it is ideal for complex applications. The timer includes a zero-cross switching function, enabling gentle switching of relays and supporting high lamp loads. Additionally, it offers a 10-year backup thanks to a lithium battery and is equipped with features such as an integrated operating hour counter and a holiday program. The automatic summer/winter time change adds extra convenience, while the PIN coding enhances security. The transparent cover is sealable, making it suitable for use in various environments.
- Weekly program with 56 memory slots
- Zero-cross switching for relay-friendly operation
- Integrated operating hour counter
- Automatic summer/winter time change
- PIN coding for security.

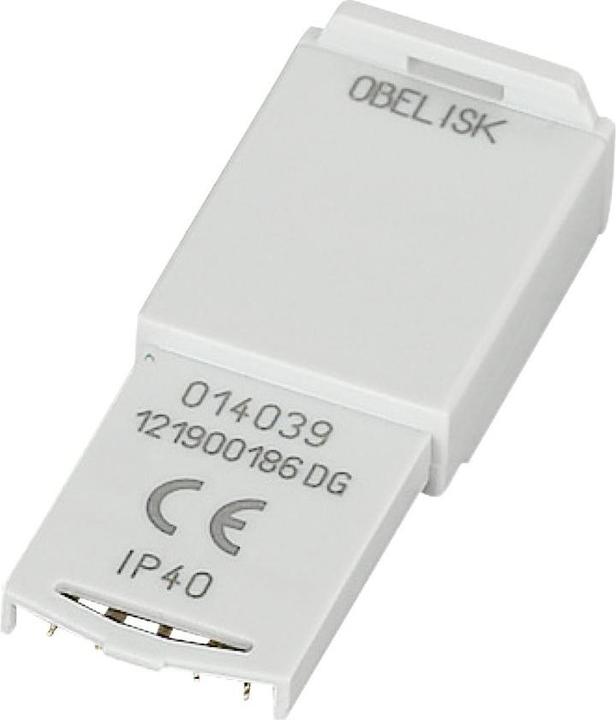

10. Eaton MOE TSAMEM Memory Card
EATON TSAMEM memory card 167387.
