Best selling Timers from Busch-Jaeger
Here you’ll find the best Timers from Busch-Jaeger. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular Busch-Jaeger options. This page always stays fresh and updates automatically.
1. Busch-Jaeger EIB application module ABL/S2.1 ** Logic
The EIB application module ABL/S2.1 from Busch-Jaeger is a highly advanced timer that enables a variety of logic functions. With a graphical user interface that can be used as a plug-in from ETS3, this device offers a user-friendly way to create complex logic and time gates. It features 50 logical functions, 50 gates, 30 time elements, as well as numerous memory and input/output options, allowing for flexible programming and customization to meet individual needs. The integrated annual timer supports up to 15 daily routines and 800 switching times, ensuring precise control of electrical devices and systems. Additionally, up to 300 group members can be created in 30 groups, which can be activated by various triggers. The ability to copy and paste elements directly in the ETS user interface significantly simplifies handling and saves time during programming.
- Graphical user interface for easy programming
- 50 logical functions and 30 time elements available
- Annual timer with 800 switching times
- Supports up to 300 group members in 30 groups.

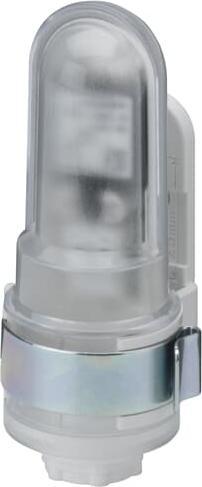

2. Busch-Jaeger Antenna DCF 77
The DCF 77 antenna from Busch-Jaeger is an innovative surface-mounted device specifically designed for use with the KNX 4-channel annual timer 6144/40. It enables precise time synchronization by receiving DCF77 signals, allowing the time and date to be automatically read into the timer. The antenna features an LED reception indicator that displays the reception status. It can be connected via a 2-wire shielded cable with a maximum range of 200 meters and allows for the parallel connection of up to 10 timers. The transition to daylight saving time is conveniently handled through the DCF telegram. Installation is straightforward, as the housing is rotatable in the mounting bracket and suitable for wall mounting.
- Easy installation with rotatable housing in the mounting bracket
- Automatic time and date setting via DCF77 signal
- Parallel connection of up to 10 timers possible
- LED reception indicator for checking reception status
- Compatible with KNX Smart Home systems.
3. Busch-Jaeger 6422 UJ-84
The Busch-Jaeger Jalousie-Compact-Timer 6422 UJ-84 is an innovative solution for controlling roller shutters and blinds. This complete set is suitable for drives with mechanical or electronic limit switches and offers user-friendly operation. The timer allows for both manual and time-controlled switching, enabling flexible adjustments to individual needs. With a runtime of 3 minutes and the ability to set two switching times per day for each weekday, the Jalousie-Compact-Timer is ideal for automating shading systems. Simple programming is done via a display with segment display and backlighting, ensuring intuitive use. Additionally, the memory function ensures that switching times are retained even in the event of a power failure. The automatic summer/winter time changeover and a reserve of over 10 years for time and date make this product particularly practical and reliable.
- Easy programming via a backlit display
- Memory function for storing switching times
- Automatic summer/winter time changeover
- Two individually adjustable switching times per day
- Manual operation possible at any time.
4. Busch-Jaeger Busch-Jäger central disc with rotary knob, with imprint 1770-914-102
The Busch-Jaeger central plate with rotary knob (model 1770-914-102) is a mechanical special switch specifically designed for use in Busch timers (model 1070 U). This central plate allows for easy and precise control of time functions with a duration of up to 15 minutes. It features a simple, alpine white design that harmoniously blends into various interiors. Installation is facilitated through a clamp, making it easy to set up. With an IP20 protection rating, the central plate is suitable for use in dry indoor environments. Its compact dimensions, with a width and height of 55 mm and a shallow depth of 11.8 mm, allow for flexible integration into existing installations.
- Designed for Busch timers (model 1070 U)
- Mechanical rotary knob for precise time control
- Duration of up to 15 minutes
- Easy installation via clamp.
Timers
Quantity discount
CHF12.50 per piece for 2 units
Busch-Jaeger Busch-Jäger central disc with rotary knob, with imprint 1770-914-102
5. Busch-Jaeger Jalousie-Compact-Timer
The Busch-Jaeger Jalousie Compact Timer is a digital timer specifically designed for indoor use. With its elegant white design, the device harmoniously integrates into various living environments. This timer allows for precise control of blinds and other electrical devices through a weekly program that includes two individual schedules. It is installed flush-mounted, enabling seamless integration into existing installations. The Jalousie Compact Timer operates via the power grid and is not suitable for smart home applications. Made in Germany, this product offers a reliable and user-friendly solution for automating lighting and shading systems. It is ideal for anyone looking for a simple and effective way to control their blinds and enhance living comfort.

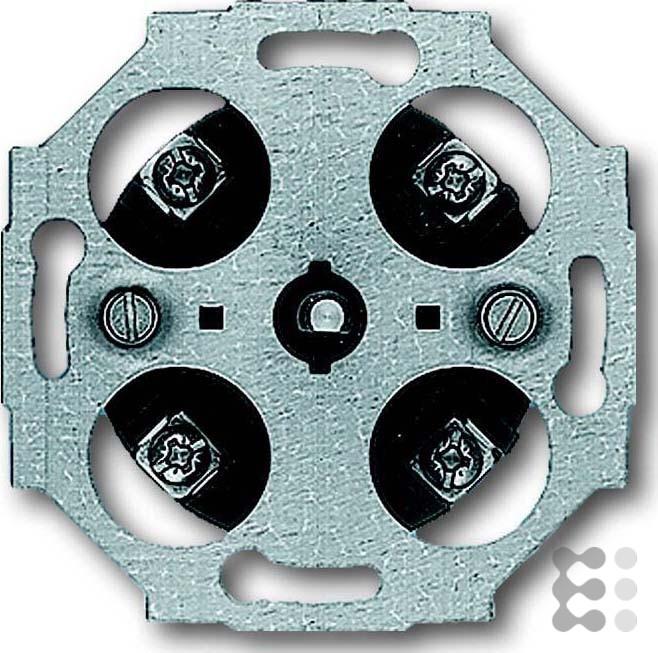

6. Busch-Jaeger Timer 15 min 1070U 1070U (1070U)
Busch-Jaeger Timer Module 1070 U
Manufacturer: Busch-Jaeger
Description: Timer Module 15 min
Type: 1070 U
Composition: Basic element
Number of contacts as switches: 2
Design: Mechanical
Time setting: 0 min
With semiconductor output: No
Mounting type: Other
Material: Other
Material quality: Other
Halogen-free: Yes
Surface protection: Untreated
Color: Other
Transparent: No
Suitable for protection class (IP): IP20
Nominal voltage: 250 V
Rated current: 16 A
Minimum depth of device box: 32 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
Busch-Jaeger Timer Module 1070 U: Additional details
Runtime: 15 min
For time-controlled switching of electrical consumers. Mechanical operation (rotary operation). Screw terminals for connection wires. After the set time has elapsed, the closed contacts will reopen. For screw mounting only. To be installed only in conjunction with commercially available flush-mounted device boxes according to DIN 49073. No expansion option, only screw mounting on the flush-mounted box through keyholes.
EAN: 4011395019405.
7. Busch-Jaeger BJ - Insert - Blind control
The Busch-Jaeger blind control is a mechanical timer designed for manual and time-controlled operation of roller shutters, blinds, awnings, and lighting. With a high-resolution display and backlighting, the control unit allows for easy programming and adjustment of switching times. The integrated Astro program function offers the ability to set individual astro shifts and lockout times to accommodate lighting conditions and personal needs. The control is power failure-proof, ensuring that all programmed switching times are retained even during power outages. Additionally, the blind control features a reserve of over 10 years for time and date, ensuring reliable use. When combined with other Busch-Jaeger products, it offers enhanced functionality, such as a temperature and brightness-dependent sun protection feature.
- Easy programming via high-resolution display with backlighting
- Customizable astro shift and astro lockout time
- Power failure-proof storage of switching times
- Over 10 years reserve for time and date
- Freely adjustable twilight and running times for shading and ventilation.
8. Busch-Jaeger Busch-Jäger 62731/UJ-914-WL Venetian blind flex, set, WL 62731/UJ-914-WL
The Busch-Jäger 62731/UJ-914-WL Jalousie flex is an innovative set for controlling roller shutters, blinds, and awnings. This product allows for both manual and automated control and offers a variety of features that enhance comfort and user-friendliness. With a built-in timer that includes an astronomical function, users can set individual schedules for controlling their blinds. Operation is conveniently done via a wireless push-button control element, allowing for easy integration into existing smart home systems. Remote control is facilitated through a smartphone or tablet app, enabling flexible control from anywhere. The set includes all necessary components for installation and is suitable for mounting in standard flush-mounted device boxes.
- Manual and automated control of blinds and roller shutters
- Integrated timer with astronomical function
- Remote control via Bluetooth using smartphone/tablet app
- Compatible with smart home systems like IFTTT and Google Assistant
- Easy installation in standard flush-mounted device boxes.
Timers
CHF139.–
Busch-Jaeger Busch-Jäger 62731/UJ-914-WL Venetian blind flex, set, WL 62731/UJ-914-WL

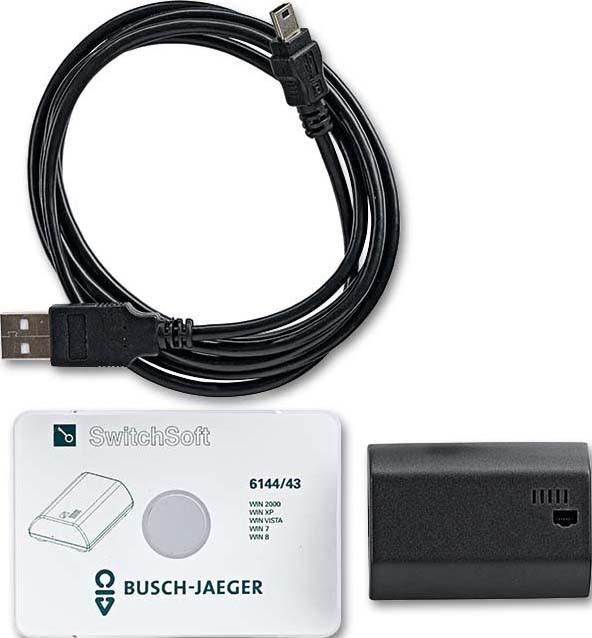

9. Busch-Jaeger Programming set
Busch-Jaeger Programming Set 6144/43
Manufacturer: Busch-Jaeger
Description: Programming Set
Type: 6144/43
PC Programming Set for Windows 95: no
PC Programming Set for Windows 98: no
PC Programming Set for Windows 2000: no
PC Programming Set for Windows NT: no
PC Programming Set for Windows XP: yes
PC Programming Set for Windows 7: yes
PC Programming Set for Windows 8: yes
Additional Details:
For programming the 4-channel annual timer 6144/40 via PC. The programming set includes a programming adapter, USB cable, and software. A memory card must be ordered separately. The software is compatible with Windows 2000 (Service Pack 4), XP, Vista, 7, and 8.
EAN: 4011395191910.

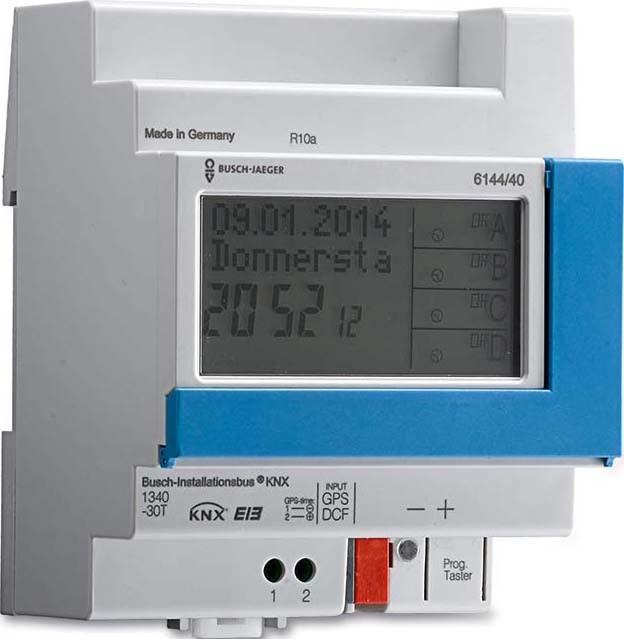

10. Busch-Jaeger KNX timer 4-K day/week/year, REG, 4HP
The radio-controlled timer transmits the current time and date over the bus. The time can optionally be received via a DCF or GPS antenna. Additionally, the radio-controlled timer is used for easy setting of time programs. KNX.
