Best selling Switch boxes from Delock
On this page you’ll find a ranking of the best Switch boxes from Delock. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Delock HDMI Audio 5.1 Extractor
With the Delock HDMI Stereo / 5.1 Channel Audio Extractor 4K Adapter, the audio signal can be extracted from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can simultaneously be output digitally (S/PDIF) and analog (Stereo) to other devices such as headphones or surround receivers.
2. Delock HDMI Switch 2 auf 1 bidirektional 8K
This HDMI switch by Delock is a manual bidirectional switch for connecting different devices with HDMI port. This switch offers two different applications. Up to 2 devices can be connected to a monitor, TV or projector. At the push of a button, the device that is displayed on the screen can be selected. An HDMI device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected at the touch of a button. Simultaneous output to multiple screens is not possible.
3. Delock Monitor splitter HDMI
This splitter from Delock receives an HDMI signal from a PC or notebook and distributes it to two connected screens. This allows two HDMI monitors to be operated from a single HDMI port.
4. Delock HDMI Switch
With this HDMI switch by Delock, up to four HDMI devices can be operated on one HDMI monitor, TV or projector. You can switch between the HDMI devices using the button on the device or the remote control.
USB power supply
The device is powered via a USB port, a suitable USB cable is supplied. If no free USB-A port is available, an optional external power supply unit is required.
Specifications
- Connections:
Input:
4 x HDMI-A socket
1 x USB type Micro-B socket (5 V power supply)
Output:
1 x HDMI-A socket
- HDMI port switching: Automatic, via button or infrared remote control
- LED indicators for active HDMI connection
- Ultra High Speed HDMI specification
- Supports HDCP 1.4 and 2.3
- Supports HDR
- Supports CEC
- Supports Game Mode VRR
- Supports Dolby TrueHD and DTS-HD Master Audio
- Resolution up to:
7680 x 4320 @ 60 Hz
3840 x 2160 @ 144 Hz
(depending on the system and the connected hardware)
- Video bandwidth up to 1200 MHz / 12 Gbps, max. 48 Gbps
- Power consumption: max. 5 W
- Robust metal housing
- Colour: black
- Dimensions (LxWxH): approx. 136 x 61 x 14 mm
System requirements
- HDMI cable
- Power source with a free USB type A socket
- 2 x AAA battery
Package contents
- HDMI switch
- Remote control
- USB power cable, length: approx. 0.75 m
- Operating instructions.
5. Delock 2Port 3.5mm jack Switchbox
This Delock 3.5 mm jack switch is a manual bidirectional switch for connecting various audio devices, offering two different usage options.
1. Up to two devices with a jack connection, such as headphones, can be connected to an audio source. With the press of a button, you can select which device should play the audio signal. Simultaneous output to multiple devices is not possible.
2. Up to two devices with a jack connection, such as a PC, laptop, or MP3 player, can be connected, and a headphone can be connected to the output. With the press of a button, you can choose which device's audio signal will be played through the headphones.
6. Delock HDMI Matrix Switch 4 x HDMI in to 2 x HDMI out 4K 60 Hz with Audio Extractor
With this HDMI switch from Delock, up to four HDMI devices can be connected to two HDMI monitors, TVs, or projectors. You can switch between the HDMI devices using the button on the device or the remote control.
Each input can be routed to any output, allowing you to select the desired source for each monitor. It is also possible to output a single source to two screens simultaneously.
If a monitor does not support high resolution, the integrated downscaler can scale the image from 4K to 1080p.
This function allows the audio signal from an HDMI transmission to be extracted. While the video signal is displayed on a TV or monitor, the audio signal can be output digitally (S/PDIF) or analog (stereo) to other devices, such as headphones or surround receivers.
ARC can be activated at the push of a button on the device or the remote control. Then, the audio signal from the connected TV is output to the S/PDIF ports of the switch.
Input connections:
- 4 x HDMI-A female
- 1 x DC 12 V power connection (screwable)
Output connections:
- 2 x HDMI-A female
- 1 x 3.5 mm 3-pin jack (audio)
- 1 x TOSLINK jack S/PDIF
HDMI port switching: Automatic, via button or infrared remote control
- LED indicators for active HDMI connection
- High speed HDMI specification
- Supports 3D displays
- Supports HDCP 1.4 and 2.2
- Supports HDR
- Supports EDID management
- Supports ARC (Audio Return Channel)
- Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and connected hardware)
- Video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gbps
- Power consumption: max. 4 W
- Metal housing
- Removable wall mount
- Color: black
- Dimensions (LxWxH): approx. 251 x 105 x 20 mm
Power supply specifications:
- Plug-in power supply
- Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
- Output: 12.0 V / 1.0 A / 12.0 W
- Outer dimensions, positive inside
- Dimensions: inside: approx. 2.1...
Switch box
CHF116.–
Delock HDMI Matrix Switch 4 x HDMI in to 2 x HDMI out 4K 60 Hz with Audio Extractor

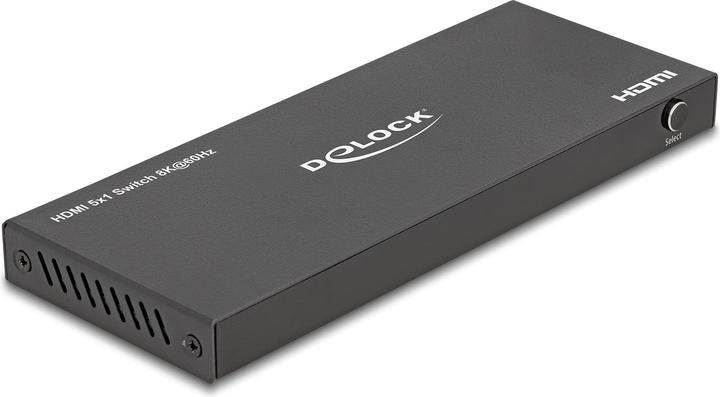

7. Delock 5 Port HDMI Switch, actively amplified
With this Delock HDMI switch, up to five HDMI devices can be connected to an HDMI monitor, TV, or projector. You can switch between the HDMI devices using the button on the device or the remote control.

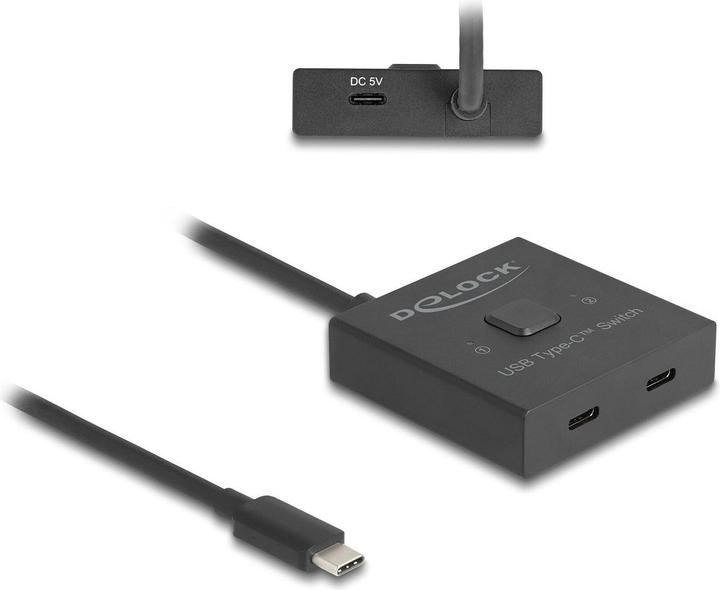

8. Delock Umschalter
The Delock USB 10 Gbps USB Type-C Switch is a versatile, bidirectional switch that offers two different usage options. It allows the connection of a USB Type-C device, such as a monitor or external storage, to two computers, or the connection of two USB Type-C devices to one computer. The switch supports an impressive resolution of up to 8K and a data transfer rate of up to 10 Gbps. Additionally, it provides Power Delivery of up to 100 W, making it a flexible solution for various applications.
Highlights:
- Supports 8K resolution at 60 Hz
- USB Type-C Power Delivery up to 100 W
- Manual bidirectional switch for flexible use.
9. Delock HDMI splitter
This splitter by Delock receives an HDMI signal from a PC or notebook and splits it to four connected screens. This means that four HDMI monitors can be operated on one HDMI connection.
Downscaler
If a monitor does not support the high resolution, the image can be scaled from 4K to 1080p using the integrated downscaler.
USB power supply
The device is powered via a USB port, a suitable USB cable is supplied. If no free USB-A port is available, an optional external power supply unit is required.
Specifications
- Connections:
Input:
1 x HDMI-A socket
1 x USB type Micro-B socket (5 V power supply)
Output:
4 x HDMI-A socket
- Supports EDID Management
- High Speed HDMI specification
- Supports 3D displays
- Supports HDR
- Supports HDCP 1.4 and 2.2
- Mirroring function
- Transmission of audio and video signals
- Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
- Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and connected hardware)
- Video bandwidth up to 600 MHz / 6 Gbps per channel, max. 18 Gbps
- Power consumption: max. 2.5 W
- Robust metal housing
- Colour: black.
System requirements:
- HDMI cable
- Power source with a free USB type A socket.
10. Delock 4K UHD HDMI Switch
With this Delock HDMI Switch, up to three HDMI devices can be connected to an HDMI monitor, TV, or projector. The button on the device allows you to switch between the HDMI devices.
