Best selling Server accessories from Corning
On this page you’ll find a ranking of the best Server accessories from Corning. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

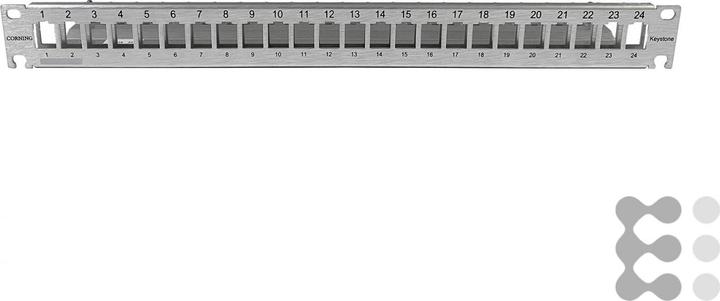

1. Corning Distribution panel f. 24Mod silver KAXCSV-02400-C001
Corning Distribution Field for 24 Modules KAXCSV-02400-C001
Manufacturer: Corning
Designation: Distribution field for 24 modules, silver
Type: KAXCSV-02400-C001
Number of sockets/couplings: 24
Connector type: RJ45 8(8)
Shielded: yes
Number of height units (HE): 1
Color: Silver
Mounting type: 482.6 mm (19 inch) rack mount
Height: 43.6 mm
Width: 50 mm
Depth: 99.5 mm
The modular Everon data network technology Keystone distribution field is universally applicable in all 19-inch distribution cabinets. This allows for a flexible, application-specific configuration of building and floor distributors. The front panel is designed to be conductive, with integrated grounding points and two grounding tabs located at the back.

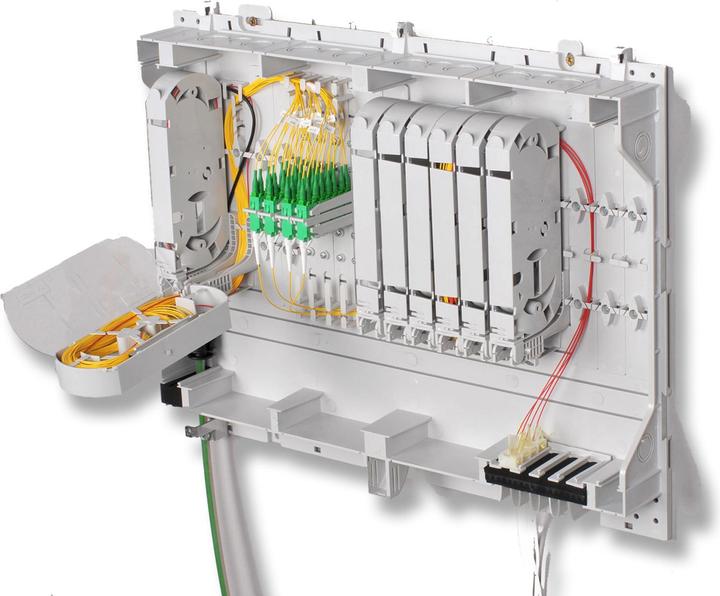

2. Corning BAT(X)Box empty grey with EMKA lock BAT-XGE-ST001
The Corning BAT(X)Box is a versatile and functional enclosure specifically designed for use in server accessories. With an elegant gray design and an EMKA lock, this enclosure not only offers security but also features a thoughtful construction for easy handling. The BAT(X)Box is designed in size XL and includes multiple sealing segments as well as numerous cable catchments that allow for flexible and tidy cable management. The removable lid facilitates access to the internal components, while the integrated cable channel significantly reduces installation effort. The modular configuration allows for customization to individual requirements, making the BAT(X)Box an ideal solution for various applications in the server sector.
- EMKA lock for enhanced security
- Modular expandable configuration
- Integrated cable channel to reduce installation effort
- Lid fully removable at any time
- Design of side walls for optimal access.
3. Corning Distribution box DE620004726
Internal distributor for surface mounting to accommodate LSA modules of series 1 with mounting dimension 170 mm (DIN strips) and SID strips.
Base plate of sheet steel, bonnet of powder-coated sheet metal with plastic caps with pre-cut contours, including cable routing brackets and earthing clamps.
Capacity:
Capacity LSA Series 1: 40 DA (2 strips) or SID CD 60 DA (3 strips).
Housing dimensions (WxHxD): 330 x 200 x 100 mm.
Protection class: IP 40.
Colour: light grey (similar to RAL 7035).
Material: sheet steel.
4. Corning Accessories LSA PLUS 2 Series
The LSA-Plus mounting tray from Corning is a high-quality solution for the installation of connection strips. It allows for the mounting of up to two LSA-Plus strips and provides a robust and reliable base for connecting electronic components. With a compact design and precise dimensions, this mounting tray is ideal for use in various electronic applications. The use of metal as the main material ensures durability and stability, while the thoughtful grid dimension of 25 mm allows for easy integration into existing systems. This mounting tray is not only functional but also designed to meet the demands of modern installations.
- Mounting of up to two LSA-Plus strips
- Robust metal construction
- 25 mm grid dimension for easy integration
- Compact dimensions for versatile applications.

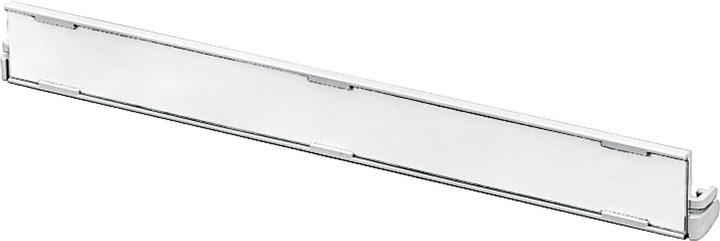

5. Corning LSA-PLUS 1 sign frame, 20 DA snap-in, 160 x 15 mm
The QSA family includes a wide variety of accessories for QSA DIN and QSA. This includes sign frames, laying tools, test cords, and specially developed protective magazines for QSA, as well as a grounding bar. Disclaimer: LSA-PLUS is a trademark of Commscope Technologies LLC, and there should be no impact on the sponsorship of the approval of QSA Connection modules by Commscope.
Server accessories
Quantity discount
CHF8.95 per piece for 2 units
Corning LSA-PLUS 1 sign frame, 20 DA snap-in, 160 x 15 mm

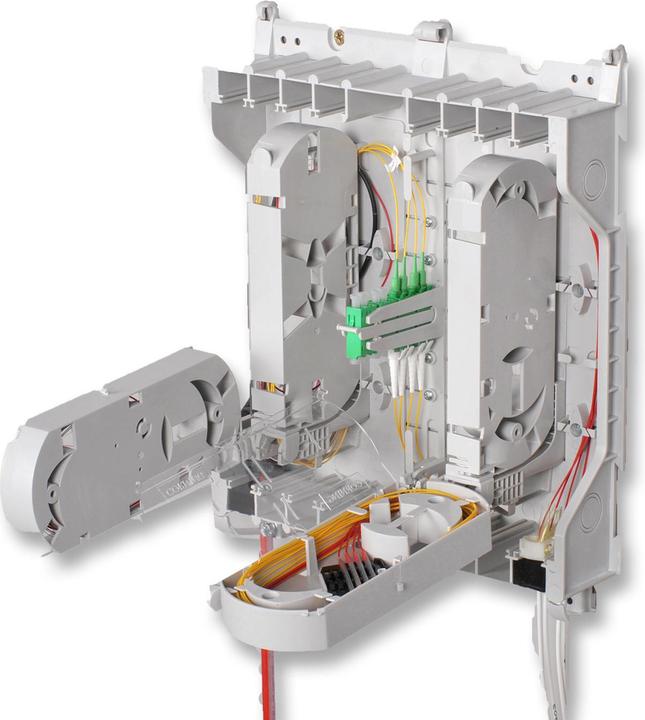

6. Corning BAT-MGE-ST001 BAT M Box empty grey with EMKA lock
The Corning BAT(M)Box is an empty box in gray color, specifically designed for use as server accessories. It provides a robust and secure solution for housing cables and other components. Equipped with an EMKA lock, the box ensures a high standard of security and protects its contents from unauthorized access. The box is suitable for wall mounting and features multiple cable entries that allow for flexible and tidy cabling. With a compact design that seamlessly integrates into various environments, the BAT(M)Box is a practical choice for professional applications.
- EMKA lock for enhanced security
- Neutral gray color for versatile applications
- Nine cable entries for flexible cabling
- Three foam seals to ensure protection and stability.
7. Corning BAT patch module
Corning BAT Patchmodul 4xLCD/APC BAT-PLN-22RT Hersteller :Corning Bezeichnung :BAT Patchmodul 4xLCD/APC ohne Anschlussfasern Typ :BAT-PLN-22RT Art des Zubehörs/Ersatzteils :Adapter Corning BAT Patchmodul 4xLCD/APC BAT-PLN-22RT: weitere Details Patchmodul für 4 LC-Duplex / APC, ohne Anschlussfasern , EAN: 4042673813194.

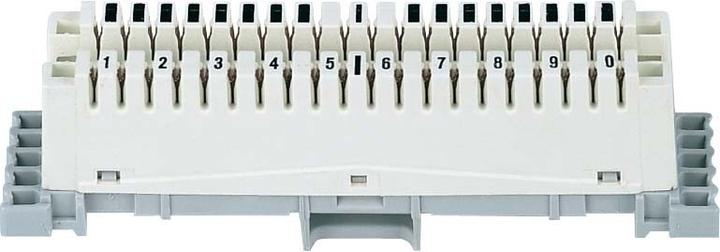

8. Corning 79103-510 00
Corning LSA-Plus2 disconnect strip DE620045729
Manufacturer: Corning
Designation: LSA-Plus2 disconnect strip for 10DA without colour code
Type: DE620045729
Version: Disconnect strip
Connection type: LSA-Plus
Installation option for overvoltage protection: No
With strip marking: Yes
Colour: White
Max. number of twin conductors (DA): 10
Further details: Disconnect strip for copper conductors with solid conductors 0.4-0.8 mm diameter (AWG 26-20) for plugging onto LSA-PLUS2 mounting trays.
9. Corning BAT-Box 9-12WE Gr.X 50 fibres BAT-XGE-050B3-022-WE
The Corning BAT-Box 9-12WE Gr.X 50 fibers (Type: BAT-XGE-050B3-022-WE) is a highly advanced server accessory specifically designed for the efficient management and termination of fiber optic connections in buildings. This BAT-Box is ideal for multi-family homes with up to 12 residential units and provides space for up to 50 fibers, which are connected via LC/APC connectors. The gray housing is designed for wall mounting, allowing for easy installation. The box features a removable lid with a screw lock that facilitates access to the internal components. Additionally, it includes entry and strain relief elements for cables and microtubes to ensure secure and tidy cabling. The BAT-Box is equipped with 10 cassette slots, allowing for flexible adaptation to various applications.
- Suitable for up to 12 residential units and 50 fibers
- Integrated entry and strain relief elements for cables and microtubes
- Removable lid with screw lock for easy access
- 10 cassette slots for flexible adaptation
- Compatible with LC/APC connectors.
Server accessories
−6%
CHF449.– was CHF479.–
Corning BAT-Box 9-12WE Gr.X 50 fibres BAT-XGE-050B3-022-WE
10. Corning Patchpanel 24 ports 1U with Cat6A PL modules 43018-801 26
Corning Patch Panel 24 Ports 1U UU001622826
Manufacturer: Corning
Description: Patch panel 24 ports 1U with Cat6A PL modules
Type: UU001622826
Number of sockets/couplings: 24
Shielded: yes
Category: 6
Number of rack units (U): 1
Mounting type: 482.6 mm (19 inch) installation
The patch panel features 24 tool-less, individually shielded RJ45 connection modules and occupies 1 rack unit (1U) in a 482.6 mm (19 inch) rack. Material: brushed aluminum. The RJ45 connection modules from 3M simply snap into the panel. The patch panel has a grounding point for defined potential equalization. 24 RJ45 connection modules CAT.6A ISO/IEC are included in the delivery. The patch panel is designed for transmissions up to 10 GBit/s at frequencies up to 500 MHz and can be combined with all components of the 3M cabling system.
