Schneider Electric XPSAC Safety Relay, 230Vac, 3NO 1SS
Best selling Relays from Schneider Electric
On this page you’ll find a ranking of the best Relays from Schneider Electric. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

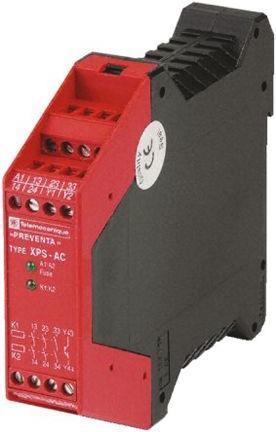

1. Schneider Electric XPSAC Safety Relay, 230Vac, 3NO 1SS
Supply voltage: 230 V AC
Number of channels: 1
Auxiliary switch: 1
Function: Emergency stop, safety switch/lock
Safety category ISO 13849-1: 4
SIL: 3
PL: E
Safety contacts: 3
Range: Preventa
Reset type: Monitored
Connection type: Screw fastening
Series: XPS AC
BG, UL, CSA. IEC 204-1; EN 292; EN 418; EN 60204-1; EN 1088. XPS AC, single-channel. The XPSAC safety relays are used for monitoring emergency stop circuits. They comply with the standards EN/ISO 13850 and EN/IEC 60204-1 as well as the requirements for the electrical monitoring of switches in protective devices according to the standard EN 1088/ISO 14119. They provide protection for both the machine operator and the machine by immediately stopping dangerous movements upon receiving a stop command from the operator or detecting a fault in the safety circuit. For better diagnostics, the modules are equipped with LEDs that provide information about the status of the monitoring circuit. It includes 3 safety relay outputs (normally open) and 1 semiconductor output for PLC signal transmission. Monitoring of the start button or the automatic start process. 24 V DC option available in each supply voltage version. Compact 22.5 mm housing.
2. Schneider Electric LC1D09B7
AC contact rating 24 AC.
3. Schneider Electric Contactor 18A 230VAC
The Schneider Electric LC1D18P7 contactor is a highly advanced electrical switching device designed for controlling electrical loads in industrial applications. With a rated current of 18 A at 400 V AC and a coil voltage of 230 V AC, this device offers a reliable and efficient solution for automation technology. The contactor is equipped with three main contacts, as well as an additional normally open and normally closed contact, allowing for flexible control. Its compact design, measuring 45 x 77 x 86 mm and weighing 0.33 kg, facilitates installation in various applications. The LC1D18P7 is suitable for safety applications, as it features mechanically linked contacts and mirror contacts that ensure high reliability. Additionally, the product meets numerous international certifications, underscoring its quality and safety.
- Suitable for safety applications due to mechanically linked contacts and mirror contacts
- Quick and easy setup thanks to the use of Everlink and spring terminals
- Certified according to UL, LROS, BV, CSA, GOST, GL, CCC, DNV, RINA
- Versatile use in various categories such as AC-1, AC-3, and AC-4
- Robust construction for long-lasting performance in industrial environments.
4. Schneider Electric Electron.
Schneider Electric Electronic Release Device C1645E160
Manufacturer: Schneider Electric
Designation: Electronic Release Device MicroLogic 5.2E
Type: C1645E160
Overload Release Current Setting: 63..160 A
Initial Value of the Undelayed Short-Circuit Release Setting Range: 240 A
Final Value of the Undelayed Short-Circuit Release Setting Range: 2400 A
Rated Continuous Current Iu: 160 A
Type of Voltage for Operation: AC
Rated Control Supply Voltage Us at AC 50 Hz: 690 V
Rated Control Supply Voltage Us at AC 60 Hz: 690 V
Number of Poles: 4
Short-Circuit Release Function: Delayed
With Earth Fault Protection Function: No
Type of Motor Protection: Electronic Release
Schneider Electric Electronic Release Device C1645E160: Additional Details
This electronic 4-pole 4d release device MicroLogic 5.2 E (Energy) is an electronic release device used in the ComPacT NSX 160/250 circuit breakers. This electronic release device with a rated current of 160 A is the best choice for all standard and special applications. It features customizable long-time overload protection. It also offers customizable short-time delayed short-circuit protection and undelayed short-circuit protection. MicroLogic 5.2 E indicates overloads with alarm LEDs. The green Ready LED blinks when the circuit breaker is ready to trip. MicroLogic 5.2 E is equipped with a display module that allows for energy measurements and fine adjustments. This product is part of our EcoStruxure Power architecture when combined with the base switch PowerTag NSX and ComPacT NSX. EAN: 3606482000117.
5. Schneider Electric CONT 25A 24V50/60HzLugtm
The TeSys LC1D contactor from Schneider Electric is a reliable and powerful device designed for various industrial applications. With a rated operational power of 11 kW at 400 V AC-3 and a maximum operating current of 25 A, this contactor provides an effective solution for controlling electrical loads. It features three main contacts and additional auxiliary contacts, consisting of a normally closed and a normally open contact, allowing for flexible applications. The coil operates with an input voltage of 24 V AC, making it ideal for modern control systems. Its compact design and lightweight of 0.37 kg facilitate installation and integration into existing systems. The contactor is suitable for safety applications, as it offers mechanically linked contacts and mirror contacts that ensure high reliability. Additionally, it meets various international certifications, underscoring its quality and safety.
- Mechanically linked contacts for increased safety
- Quick and easy setup thanks to innovative spring terminals
- Suitable for various categories: AC-1, AC-3, AC-4
- Certified according to international standards such as UL, CSA, and DNV
- Compact design for easy integration into control systems.
6. Schneider Electric Schütz 3P 9A Ac3
The Schütz 3P 9A AC3 from Schneider Electric is a powerful contactor designed for various industrial applications. With its robust construction and mechanically linked contacts, it provides a reliable and safe power connection. The contactor is three-pole and features three normally open contacts as well as additional auxiliary contacts, including one normally open and one normally closed. It is designed to operate at a rated operational power of 4 kW at 400 V AC-3 and can handle a rated operational current of up to 9 A. The SnapIN terminal allows for quick and maintenance-free installation, enhancing efficiency during assembly. With a compact design and a weight of only 0.32 kg, this contactor is ideal for applications where space and weight are critical. It is also suitable for safety applications, making it a versatile choice for various electrical systems.
- Three-pole contactor with three normally open contacts and additional auxiliary contacts
- Suitable for safety applications due to mechanically linked contacts
- SnapIN terminal for quick and maintenance-free installation
- Rated operational power of 4 kW at 400 V AC-3
- Compact design with a weight of only 0.32 kg.

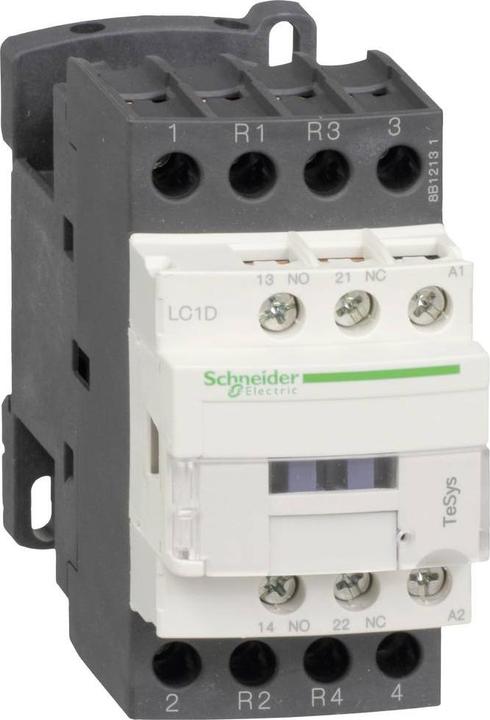

7. Schneider Electric Contactor,4P, 32A AC-1(2NO 2NC) Coil240Vac
Area: TeSys D
Series: LC1D
Number of poles: 4
Coil voltage: 240 Vac
Rated contact current: 32 A
Rated contact voltage: 690 Vac/dc
Number of auxiliary contacts: 2
Connection type: Screw terminal
Length: 105 mm
Depth: 99 mm
UL and CSA. 4-pole contactors, AC-controlled. Utilization category AC1. Auxiliary contact configuration: one normally closed, one normally open. The width of the LC1D contactors is 45 mm. The closing time of the LC1D series is 12–22 ms, and the opening time is 4–19 ms. These contactors must not be used with TeSys overload relays, connection units, or GV2 overload switches.
8. Schneider Electric Reversing contactor combination, 3p+1S+1NC, LC2D25ED
The reversing contactor combination from Schneider Electric is a highly developed accessory for drive technology, specifically designed for motor applications. With a rated value of 25 A and a rated operational power of 11 kW at 400 V AC-3, this product offers a reliable solution for motor control. The combination includes a 48 V DC coil as well as two normally open and two normally closed contacts, allowing for flexible and safe control. The mechanical locking mechanism provides additional operational safety. This reversing contactor combination is ideal for applications that require precise control and high performance.
- Mechanical locking for enhanced safety
- Two normally open and two normally closed contacts for flexible control
- Suitable for motor applications up to 11 kW at 400 V AC-3
- Robust design with protection class IP20
- Easy mounting on rails possible.
9. Schneider Electric 3 pole NO coil contactor,115A 24Vdc
Area: TeSys D
Series: LC1D
Number of Poles: 3
Coil Voltage: 12 V DC
Rated Contact Current: 25 A
Rated Contact Voltage: 690 V AC
Contact Configuration: 3 NO Contacts
Number of Auxiliary Contacts: 2
Power: 5.5 kW
Connection Type: Screw Mounting
Length: 77 mm
Width: 45 mm
Maximum Operating Temperature: +60 °C
UL and CSA certified. Contactors with the suffix BL accept auxiliary contact blocks for front mounting (only the 2-contact version) and do not accept side-mounted contacts. 3-pole contactors, DC-controlled. Integrated coil fault suppression. 3 NO poles. Auxiliary contact configuration: one NO, one NC. Closing switching time: 12 to 22 ms. Opening switching time: 4 to 19 ms.
10. Schneider Electric Reversible contactor combination
3-pole TeSys K contactor for simple motor applications with 2.2 kW at 400 V. Very compact and DIN rail compatible, it is mounted with a mechanical interlock and a pre-wired reversing circuit. It features a 24 V DC coil, 2 built-in normally open auxiliary contacts, and connections via spring terminals. It meets several standards (IEC, UL, CSA, CCC, EAC, Marine) and is Green Premium (RoHS/REACH) certified.
