Best Hager products in the Relays category
On this page you'll find a ranking of the best Hager products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Hager Staircase lighting timer
Staircase lighting time switch EMN001 is a staircase lighting timer with low switching noise. It is designed to switch on the lighting automatically, recognizing 3 or 4 wire connections for subsequent activation. The device features a hand switch for automatic or permanent lighting options.
2. Hager Remote switch EPS410B
The Hager remote switch EPS410B is an electronic step switch designed for controlling lighting circuits in various applications, including residential and commercial spaces. With an input voltage of 230 V and a maximum switching current of 16 A, this switch is ideal for impulse control of lighting circuits. The EPS410B features user-friendly manual operation via an integrated hand switch and is equipped with a status LED that indicates the current operating state. The automatic detection for 3- or 4-wire connections allows for flexible installation and adaptation to different electrical systems. The switch meets the relevant safety standards according to DIN EN 60669-2-1 and DIN EN 60669-2-2, underscoring its reliability and safety. With a compact design suitable for mounting on a DIN rail, the EPS410B can be easily integrated into existing installations.
- Suitable for impulse control of lighting circuits up to 16 A
- Integrated hand switch with status LED for easy operation
- Automatic detection for 3- or 4-wire connections
- Complies with safety standards according to DIN EN 60669-2-1 and DIN EN 60669-2-2
- Compact design for DIN rail mounting.
3. Hager Contactor 25A
Installation contactor 25A with 4 normally open contacts, 230V. This contactor features a compact design in accordance with EN 61095 and DIN VDE 0637-3, along with contact protection as per DIN VDE 0106 part 100. It includes a display window for contact position indication, an integrated labeling field, and is suitable for retrofitting additional equipment. Please note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to every second device.
4. Hager Installation contactor 25A 3S+1Ö 230V
Hager Contactor ESC428S
Manufacturer: Hager
Designation: Noise-free Contactor 25A 3NO+1NC
Type: ESC428S
Rated operational voltage: 400 V
Rated operational current: 25 A
Utilization category according to EN IEC 60947-4-1: AC-7a/AC-7b
Rated control voltage: 230 V
Type of operational voltage: AC
Type of control voltage: AC
Number of contacts as normally open: 3
Number of contacts as normally closed: 1
Max. incandescent lamp load: 1900 W
Max. fluorescent lamp load: 950 VA
Max. fluorescent lamp load (Duo circuit): 1990 VA
Max. fluorescent lamp load (parallel compensated): 810 VA
Manual control lever: no
Width in modular units: 2
Installation depth: 60 mm
Additional devices possible: yes
With day/night function: no
Noise-free: yes
Protection class (IP): IP2X
Hager Contactor ESC428S: additional details
Noise-free installation contactor 25A with 3 normally open and 1 normally closed contacts at 230V. Noise-free contactor according to DIN EN 61095 (VDE 0637-3) with contact position indication through a display window, integrated labeling field, and suitable for retrofitting additional devices. DC magnetic system with protection circuit against overvoltage and to limit disturbance voltage peaks, ensuring noise-free continuous operation and minimal switching noise. Note: When installing multiple devices directly, a spacer (1/2 PLE) must be installed next to every second device.

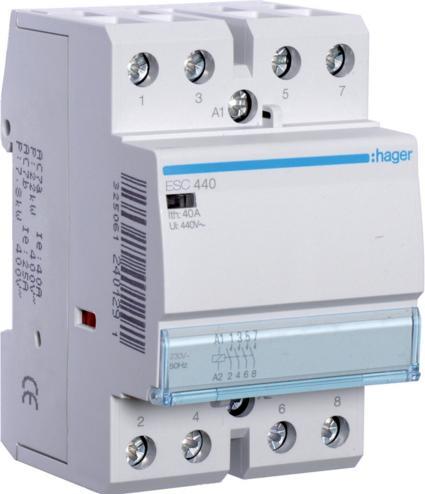

5. Hager Installation contactor 40A ESC440 4 NO contacts 230V
Installation contactor 40A normally closed 230V. Contactor in compact design according to DIN EN61095 VDE 0637-3 with contact position indication through a display window, integrated labeling field, and suitable for retrofitting additional devices. Note: When multiple devices are installed directly, a spacer 12 PLE must be installed next to every second device. ESC440.
6. Hager Installations Schütze
Installation contactor 25A 1S1Ö 230V. Contactor in compact design according to DIN EN 61095 VDE 0637-3 with contact position indication through a display window, integrated labeling field, and suitable for retrofitting additional devices. Note: When multiple devices are installed directly, a spacer 12 PLE must be installed next to every second device.
7. Hager HZ160R
Hager HZ160R.
8. Hager Contactor
Hager contactor ESC425S.
9. Hager Installation contactor
Installation contactors 25A 1S 230V. Contactor in compact design in accordance with DIN EN 61095 (VDE 0637-3) with contact position indicator via display window, integrated labelling field and suitable for retrofitting additional devices. Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to every second device.
10. Hager Sealing cap
Hager sealing cap ESC001 is a sealing cap designed for contactors. It is an accessory for installation relays or contactors. The product is not a spare part. EAN: 3250612401901.
