Best Chaservo products in the RC servos category
On this page you'll find a ranking of the best Chaservo products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

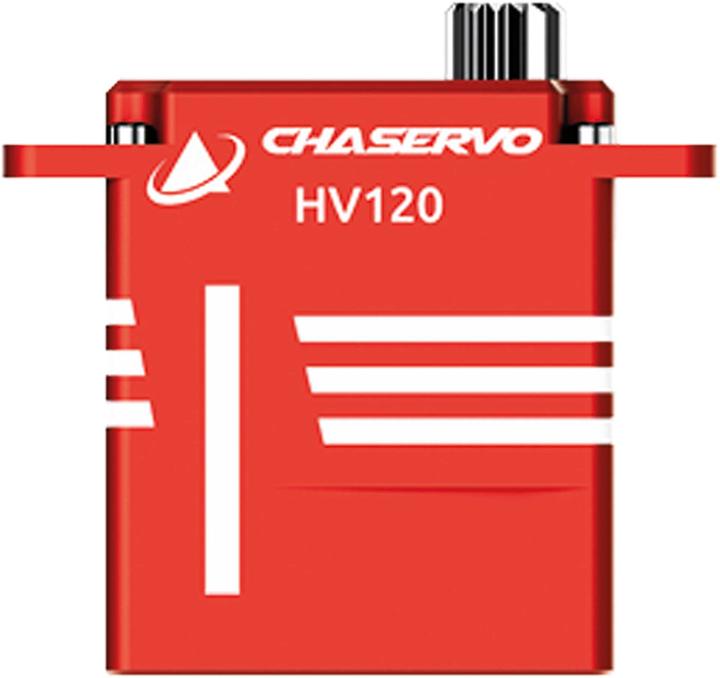

1. Chaservo HV120 12mm Servo HV 28kg Brushless Servo
Small, fast, great. The HV120 series offers a holding force of 25 kg and is available in two variants. It is compact enough to fit in thin spaces while being strong enough to play a significant role in larger projects.
Specifications:
- Version: HV120H or HV120
- Rated Voltage: DC 7.4V
- Voltage Range: DC 4.8 – 8.4V
- Position Sensor: Potentiometer
- Motor: 4 Pole Brushless
- Operating Frequency: 1520µs / 333Hz
- Pulse Width: 500 µs – 2500 µs
- Programmable: Yes
Material:
- Housing Material: Aluminum
- Gear Material: Metal Gears
Holding Torque:
- Holding Torque @ 4.8V: 18.0 kg·cm
- Holding Torque @ 6.0V: 22.0 kg·cm
- Holding Torque @ 7.4V: 25.0 kg·cm
- Holding Torque @ 8.4V: 28.0 kg·cm.

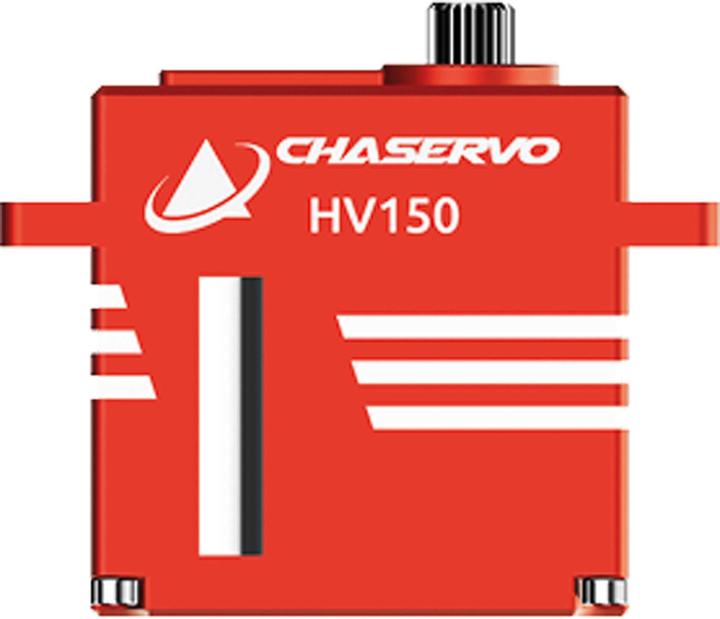

2. Chaservo HV150 15mm 24kg HV Brushless Servo
The Chaservo HV150 is a state-of-the-art brushless servo designed for use in various RC applications. With a holding force of up to 30 kg and an operating torque of 24 kg, this servo delivers impressive performance that can replace numerous standard servos. Its compact design and lightweight of only 51 g make it an ideal choice for applications where space and weight are critical. The servo is available in two versions and features a programmable function that allows customization to specific requirements. The use of high-quality materials such as aluminum for the housing and metal for the gears ensures durability and reliability in operation. With a wide voltage range of 4.8V to 8.4V, the HV150 is versatile and suitable for both hobbyists and professional applications.
- High-voltage servo with a holding force of up to 30 kg
- Programmable functions for individual adjustments
- Robust aluminum housing and metal gears
- Wide voltage range of 4.8V to 8.4V
- Digital servomotor with high precision and speed.

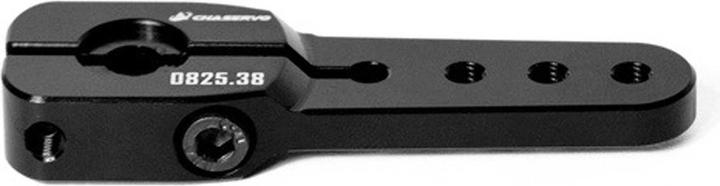

3. Chaservo Servo-Arm 0825.38 25T, 8mm, 38mm Länge
4. Chaservo HV85 (H) 8,5mm HV 10kg Servo Coreless horizontal mounting
The HV85 (H) 8.5mm HV Servo from Chaservo is a state-of-the-art digital RC servo known for its compact design and high performance. With a depth of only 8.5 mm, this servo is particularly well-suited for applications where space is limited, such as narrow wing profiles in gliders and high-performance jets. The robust construction featuring an aluminum housing, hardened steel gears, and dual ball bearings ensures a long lifespan and reliable performance. The servo offers a nominal voltage of 7.4 V and is designed for a voltage range of 6 V to 8.4 V. It is ideal for various applications in the RC field, including F3K, F5K, and RES gliders.
- Compact design with only 8.5 mm depth for improved aerodynamics
- Robust construction with aluminum housing and hardened steel gears
- Dual ball bearings for increased stability and durability
- High stalling torque of 6.5 kg·cm at 6.0 V
- Operating temperature range of -20°C to +65°C for versatile applications.
5. Chaservo HV95 9.5mm 11.5kg HV Servo
For the highest demands
The robust aluminium housing and double ball bearings make the HV95 series particularly durable and resistant. The wide voltage range of 4.8 - 8.4V, combined with the performance features typical of the HV series, make them the perfect choice for use in demanding environments.
Compact, powerful and
positioning accuracy
The HV95 series servos are the perfect choice for anyone looking for a reliable and versatile surface servo. With a weight of only 20g and a compact design (9.5 mm depth), they are suitable for a wide range of applications.
Performance:
Stalling Torque
7.5 kg-cm 6.0V
9.3 kg-cm 7.4V
10.2 kg-cm 8.4V
max. current @ holding torque
1.16A 6.0V
1.32A 7.4V
1.58A 8.4V
- Case material (housing): Aluminium
- Gear Set Material (Gearbox): Metal gearbox
- Position sensor: Potentiometer
- Motor: Coreless DC
Modulation
Operating frequency: 1520µs/333Hz
Pulse width: 900µs-2100µs
Programmable: yes
Connections
Orange / PWM / PWM control signal
Red / DC+ / supply voltage
Brown / DC / supply ground, signal ground
HV95.

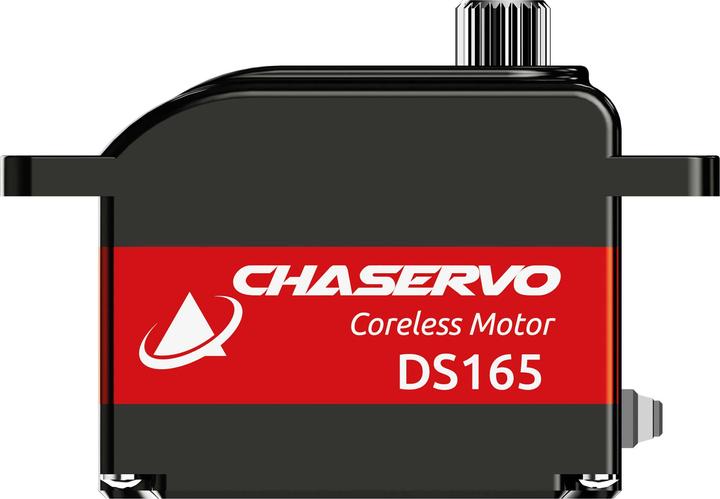

6. Chaservo DS165 16,5mm HV 9kg BB MG Servo Hall Sensor
