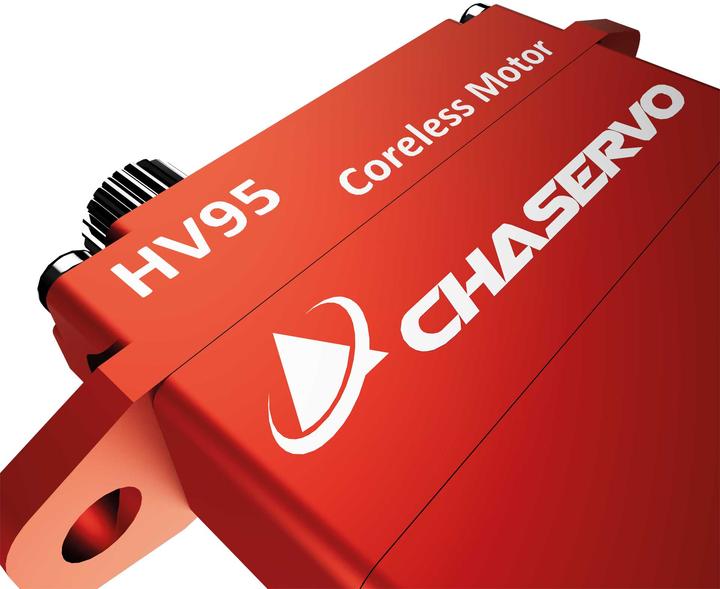

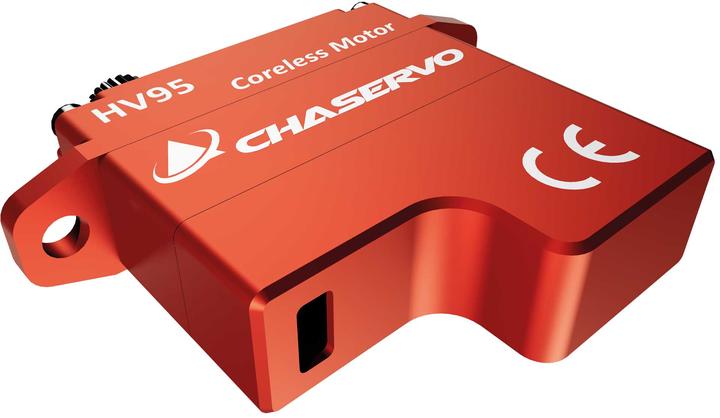

Chaservo HV95 9.5mm 11.5kg HV Servo

For the highest demands
The robust aluminium housing and double ball bearings make the HV95 series particularly durable and resistant. The wide voltage range of 4.8 - 8.4V, combined with the performance features typical of the HV series, make them the perfect choice for use in demanding environments.

Compact, powerful and
positioning accuracy
The HV95 series servos are the perfect choice for anyone looking for a reliable and versatile surface servo. With a weight of only 20g and a compact design (9.5 mm depth), they are suitable for a wide range of applications.

Performance:

Stalling Torque
7.5 kg-cm 6.0V
9.3 kg-cm 7.4V
10.2 kg-cm 8.4V

max. current @ holding torque
1.16A 6.0V
1.32A 7.4V
1.58A 8.4V

• Case material (housing): Aluminium

• Gear Set Material (Gearbox): Metal gearbox

• Position sensor: Potentiometer

• Motor: Coreless DC

Modulation
Operating frequency: 1520µs/333Hz
Pulse width: 900µs-2100µs
Programmable: yes

Connections
Orange / PWM / PWM control signal
Red / DC+ / supply voltage
Brown / DC / supply ground, signal ground

HV95.
