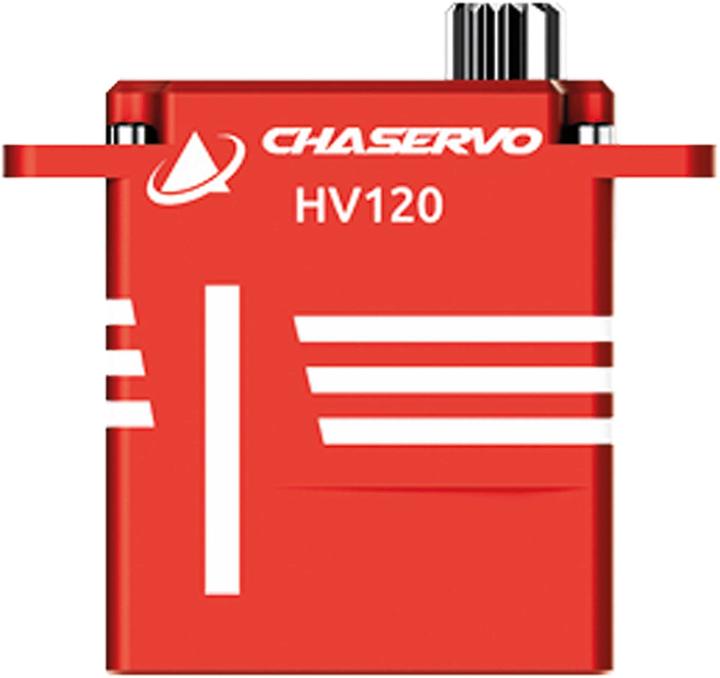

Chaservo HV120 12mm Servo HV 28kg Brushless Servo

Ratings
Delivered between Thu, 3.7. and Tue, 8.7.
10 items in stock at supplier
free shipping

Product details

Small, fast, great. The HV120 series offers a holding force of 25 kg and is available in two variants. It is compact enough to fit in thin spaces while being strong enough to play a significant role in larger projects.

Specifications:

  • Version: HV120H or HV120
  • Rated Voltage: DC 7.4V
  • Voltage Range: DC 4.8 – 8.4V
  • Position Sensor: Potentiometer
  • Motor: 4 Pole Brushless
  • Operating Frequency: 1520µs / 333Hz
  • Pulse Width: 500 µs – 2500 µs
  • Programmable: Yes

Material:

  • Housing Material: Aluminum
  • Gear Material: Metal Gears

Holding Torque:

  • Holding Torque @ 4.8V: 18.0 kg·cm
  • Holding Torque @ 6.0V: 22.0 kg·cm
  • Holding Torque @ 7.4V: 25.0 kg·cm
  • Holding Torque @ 8.4V: 28.0 kg·cm.

Key specifications

Servo Technology
Digital
Item number
54037043

General information

Manufacturer
Chaservo
Category
RC servos
Manufacturer no.
HV120
Release date
16.1.2025

Material

Material group
Metal
Material
Aluminium, Metal gearbox

RC servo properties

Servo Technology
Digital
Engine type
Servomotor
Bearing type
Slide bearing

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
3 cm
Width
1.20 cm
Height
3.50 cm
Weight
37 g
