Best MDT products in the Multimeter category
On this page you'll find a ranking of the best MDT products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

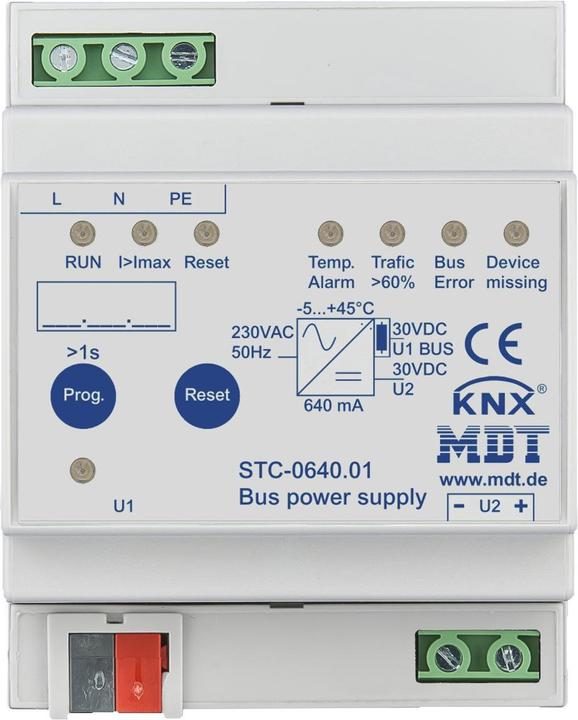

1. MDT Bus voltage supply Diagnostic funct. 640mA, 4TE
MDT technologies bus power supply STC-0640.01
Manufacturer: MDT technologies
Designation: Bus power supply 4TE, REG, 640mA
Type: STC-0640.01
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Mounting type: REG
Width in pitch units: 4
With LED display: Yes
Bus voltage can be buffered: No
Number of integrated chokes: 1
Number of lines that can be supplied: 1
Max. output current: 640 mA
Secondary voltage: 29 V
Further details:
Bus power supply with diagnostic function, 4HP, REG, 640mA. Rated current 640mA, continuous current 960mA, peak current 1200mA. KNX bus power supply with integrated choke. Supply voltage 230VAC. Short-circuit proof and overload-proof. Additional non-choked output. Integrated bus coupling unit with diagnostic functions: bus voltage, bus current, bus overload, and mains voltage failure/restoration. All events are stored in the ring memory with a time stamp. Readout of the ring memory via 14-byte telegram. Safety function for detection of a device failure in the line.
EAN: 4251916100001.
2. MDT technologies Bus power supply STC-1280.01
MDT technologies bus power supply STC-1280.01
Manufacturer: MDT technologies
Designation: Bus power supply 6TE, REG, 1280mA
Type: STC-1280.01
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Mounting type: REG
Width in pitch units: 6
With LED display: Yes
Bus voltage can be buffered: No
Number of integrated chokes: 1
Number of lines that can be supplied: 1
Max. output current: 1280 mA
Secondary voltage: 29 V
Further details:
Bus power supply with diagnostic function, 6HP, REG, 1280mA. Rated current 1280mA, continuous current 1600mA, peak current 1900mA. KNX bus power supply with integrated choke. Supply voltage 230VAC. Short-circuit proof and overload-proof. Additional non-choked output. Integrated bus coupling unit with diagnostic functions: bus voltage, bus current, bus overload, and mains voltage failure/restoration. All events are stored in the ring memory with a time stamp. Readout of the ring memory via 14-byte telegram. Safety function for detection of a device failure in the line.
3. MDT MDTtechno. Bus power supply 6TE, REG, 960m STC-0960.01
MDT STC-0960.01 Bus voltage supply.

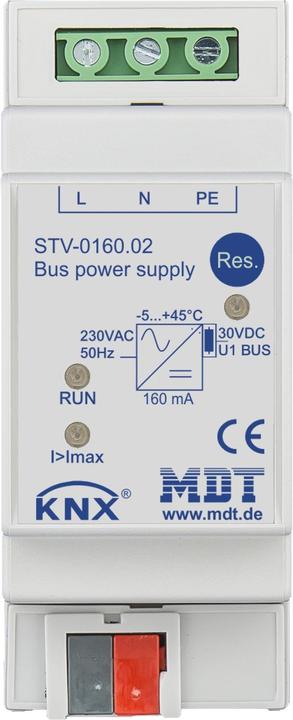

4. MDT STV-0160.02 Bus voltage supply
MDT technologies bus power supply STV-0160.02
Manufacturer: MDT technologies
Designation: Bus power supply REG, 160mA
Type: STV-0160.02
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Mounting type: REG
Width in pitch units: 2
With LED display: Yes
Bus voltage bufferable: No
Number of integrated chokes: 1
Number of lines that can be supplied: 1
Max. output current: 160 mA
Secondary voltage: 29 V
Further details:
Bus voltage supply, 2HP, REG, 160mA. Rated current 160mA, continuous current 240mA, peak current 320mA. KNX bus power supply with integrated choke. Supply voltage 230VAC. Short-circuit proof. Overload-proof. Temperature monitoring with switch-off in case of overtemperature. LED display for bus reset, normal operation, and overload. EAN: 4251916100056.
5. MDT technologies Bus voltage supply STV-0640.02
MDT technologies bus power supply STV-0640.02
Manufacturer: MDT technologies
Designation: Bus power supply REG, 640mA
Type: STV-0640.02
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Mounting type: REG
Width in pitch units: 4
With LED display: Yes
Bus voltage bufferable: No
Number of integrated chokes: 1
Number of lines that can be supplied: 1
Max. output current: 640 mA
Secondary voltage: 29 V
Further details:
Bus power supply, 4HP, REG, 640mA. Rated current 640mA, continuous current 960mA, peak current 1200mA. KNX bus power supply with integrated choke. Supply voltage 230VAC. Short-circuit proof. Overload-proof. Temperature monitoring with switch-off in case of overtemperature. LED display for bus reset, normal operation, and overload. With additional unchoked output.
EAN: 4251916100070.

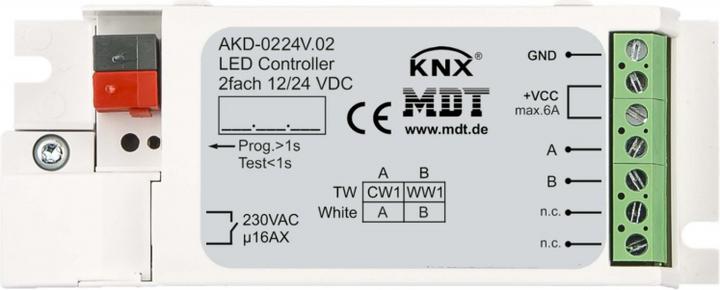

6. MDT LED controller
MDT technologies LED controller 2-channel AKD-0224V.02.
Manufacturer: MDT technologies
Name: LED controller 2-channel 3/6A
Type: AKD-0224V.02
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Design: Dimming actuator
Mounting type: Recessed installation
With bus coupling: Yes
Bus module removable: No
Extension input: No
On-site/manual operation: No
With LED display: No
Number of outputs: 2
Output power: 72 W
Power add-on usable: No
Voltage: 12-24 V
Parallel operation possible: No
Frequency: 1000 Hz
Protection class (IP): IP20
MDT technologies LED controller 2-channel AKD-0224V.02: more details
LED controller 2-channel 3/6A for 12/24V CV LED, 2 single channels or tunable white. Extensive application with absolute and relative dimming. Scene function and tunable white color temperature control. Selectable dimming curve and PWM frequency up to 1000 Hz. Global and individual dimming speeds with repeat sequences. For 12/24V CV LED, 3A per channel (common anode). Parallel operation of two channels with 6A. Operating modes: 2 x white, tunable white. Automatic color temperature control Dim2Warm. Dynamic daylight control HCL (biologically effective light). Automatic time-dependent dimming with day/night function. Overcurrent and temperature monitoring. Intelligent 16A C-load relay output for switching external LED power supply. Dimensions (W x H x D): 46mm x 25mm x 113mm. EAN: 4251916130039.
