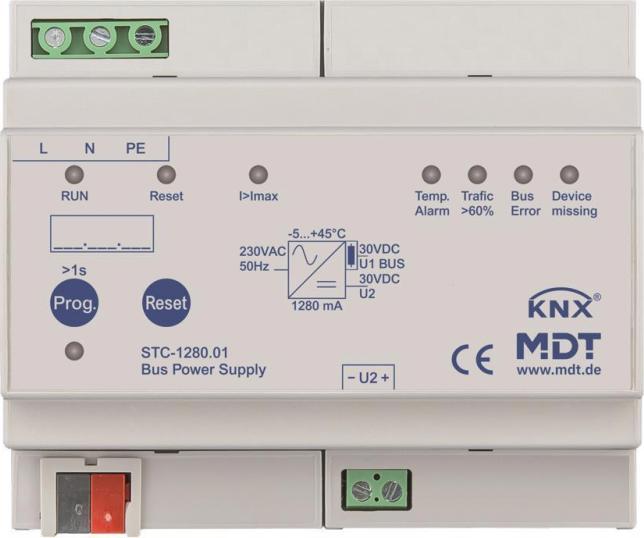

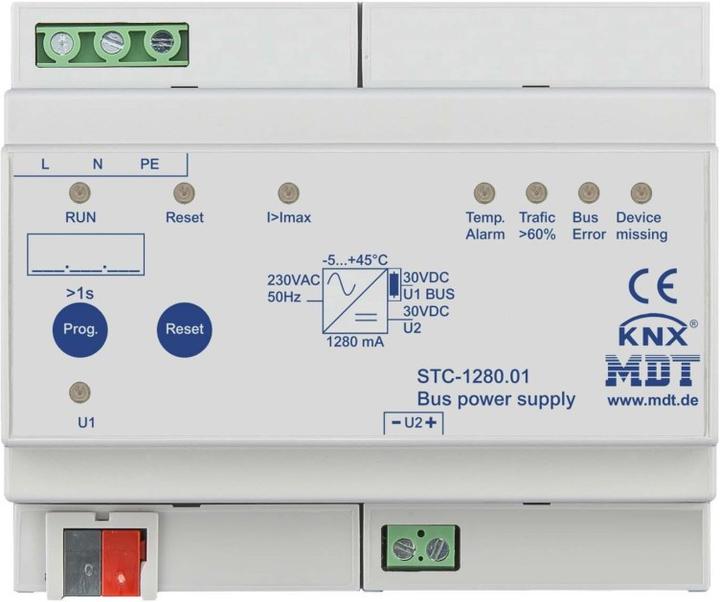

MDT technologies Bus power supply STC-1280.01

MDT technologies bus power supply STC-1280.01

Manufacturer: MDT technologies
Designation: Bus power supply 6TE, REG, 1280mA
Type: STC-1280.01
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Mounting type: REG
Width in pitch units: 6
With LED display: Yes
Bus voltage can be buffered: No
Number of integrated chokes: 1
Number of lines that can be supplied: 1
Max. output current: 1280 mA
Secondary voltage: 29 V

Further details:
Bus power supply with diagnostic function, 6HP, REG, 1280mA. Rated current 1280mA, continuous current 1600mA, peak current 1900mA. KNX bus power supply with integrated choke. Supply voltage 230VAC. Short-circuit proof and overload-proof. Additional non-choked output. Integrated bus coupling unit with diagnostic functions: bus voltage, bus current, bus overload, and mains voltage failure/restoration. All events are stored in the ring memory with a time stamp. Readout of the ring memory via 14-byte telegram. Safety function for detection of a device failure in the line.
