Metrology
CHF484.61
PCE Instruments Datenlogger für Temperatur rel. Feuchte mit Bluetooth Interface und Touchscreen
Best selling Metrology from PCE Instruments
On this page you'll find a ranking of the best PCE Instruments products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. PCE Instruments Datenlogger für Temperatur rel. Feuchte mit Bluetooth Interface und Touchscreen
The data logger for temperature and relative humidity with Bluetooth interface and touchscreen is a state-of-the-art measuring device designed for precise environmental monitoring. With its user-friendly touchscreen interface, it allows for easy operation and quick reading of measurement values. The logger is capable of measuring both temperature and humidity, making it ideal for applications in various fields such as storage, climate control, and research. Thanks to the integrated Bluetooth interface, the collected data can be conveniently transferred to mobile devices, enabling flexible analysis and documentation of measurement values. The compact and portable data logger comes with a sturdy carrying case that ensures safe transport and storage. Calibration is performed according to factory standards, guaranteeing reliable performance.
- Integrated Bluetooth interface for wireless data transmission
- User-friendly touchscreen for easy operation
- Compact design with a robust carrying case
- Factory-standard calibration for reliable measurements.

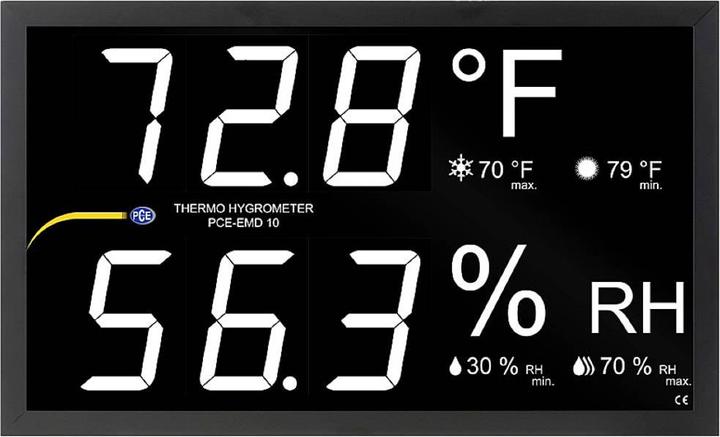

2. PCE Instruments PCE-EMD 10 Panelmeter 0 to 99.9 % rH
The built-in measuring instrument can be connected to up to four external temperature and humidity modules. The temperature measurement range for the sensors of the built-in measuring instrument is 32.0 - 122.0 °F, and the humidity measurement range is 0.0 - 99.9 % r. H. The power supply is provided via a mains connection of 110 - 220 V AC. The integrated sensor supply can power the connected sensors with 12 or 24 V DC. Once the sensors are connected, they are automatically recognized by the built-in measuring instrument. Communication between the sensor modules and the built-in measuring instrument occurs via an analog 4 - 20 mA signal. If multiple sensors are connected, the average measurement value of all sensors is displayed. Thus, the built-in measuring instrument is used in event halls, restaurants, or public buildings to monitor environmental conditions. The installation of the built-in measuring instrument and the sensor module is done on a wall. If necessary, the built-in measuring instrument can be mounted on a monitor bracket with mounting dimensions of 75 x 75 mm for optimal alignment. Optionally, the built-in measuring instrument can be equipped with an ISO calibration certificate.
3. PCE Instruments Einbauanzeige

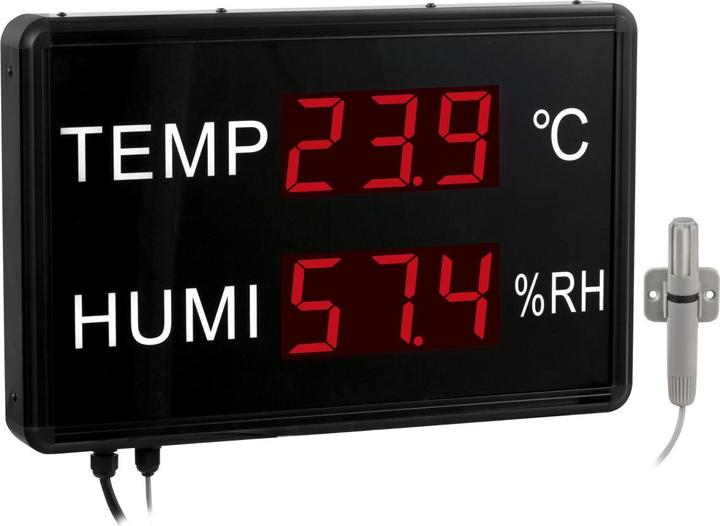

PCE Instruments LED Large Display PCE-G 2
Manufacturer: PCE Instruments
Designation: PCE Instruments LED Large Display PCE-G 2
Type: Measuring Devices
Country of Origin: CN
Relative Humidity
Measurement Range Min.: 0 % r.H.
Measurement Range Max.: 99 % r.H.
Resolution: 0.1 % r.H.
Accuracy: 3 % r.H.
Temperature
Measurement Range Min.: -40 °C
Measurement Range Max.: 85 °C
Resolution: 1 °C
Accuracy: 0.3 °C
Power Supply:
Primary: 100 - 240 V AC 50/60 Hz
Secondary: 12 V DC, 0.5 A
Plug Type: Protective contact plug
Operating Conditions: -20 to 70 °C, 0 to 85 % r.H.
Storage Conditions: -20 to 70 °C, 0 to 85 % r.H.
Dimensions (L x W x H): 395 x 255 x 50 mm
Weight: 2500 g
Item Type: for Relative Humidity/Temperature
The LED large display is used to measure environmental parameters such as temperature and air humidity. It is suitable for use in warehouses, open-plan offices, schools, etc. The LED large display features 55 mm high digits that show the temperature and humidity. Thanks to the large digit height, the display can be easily read from distances of up to 30 m. The temperature and humidity sensor is connected with an approximately 2 m long cable. The display operates on 230 V AC mains voltage. Alarm levels can be set using the buttons located on the side.
Highlights:
- Temperature and humidity measurement
- Wall mounting
- 230 V AC power supply
- 55 mm digit height
- Readable from up to 30 m
- External sensor (wired)
Scope of Delivery:
1 x LED Large Display PCE-G 2
1 x Wall mounting set (2 x dowels and screws)
1 x Power supply unit
1 x User manual
EAN: 4250348719577.

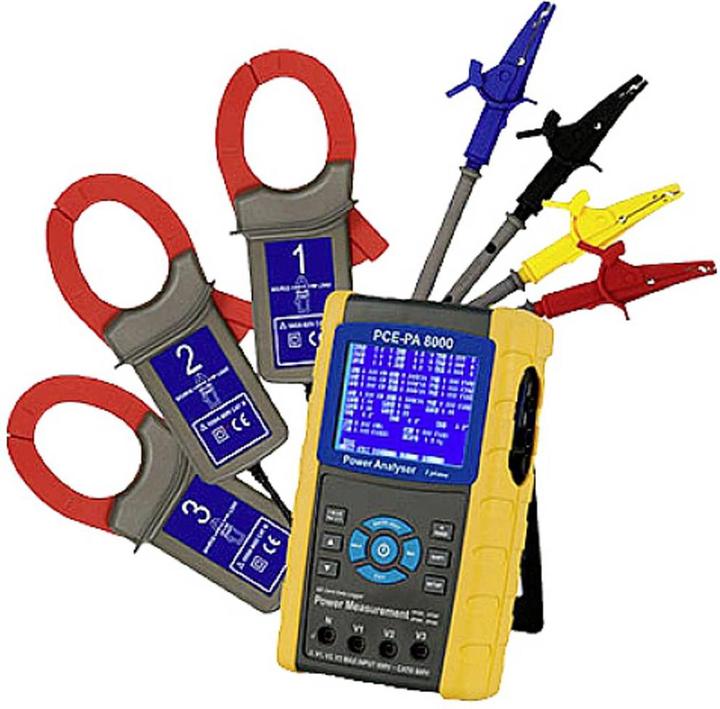

4. PCE Instruments PCE-PA 8000 Mains analyser
HVAC measuring device PCE-PA 8000 with data storage on SD card and PC interface. With the ammeter PCE-PA 8000, it is possible to measure and record power in single-phase and three-phase circuits. Long-term measurements can be conducted with the ammeter PCE-PA 8000. The measurement data is stored on a plug-in SD card in XLS format, allowing for convenient evaluation on a computer. The recording interval can be freely selected from 2 to 7200 seconds. The energy meter can perform energy measurements as well as determine the power factor and phase angle. The current clamps of the power analyzer PCE-PA 8000 are suitable for conductor diameters of up to 50 mm. Thus, the measuring device is optimal for use in the energy supply network. The large 3.7-inch display allows for reading all measurement values at a glance, providing a quick analysis of the current measurements and an overview of current, voltage, and the power consumed.
5. PCE Instruments Netz-Analysegerät
The power meter is a useful tool for the precise measurement of various electrical parameters. With a measurement range of 0 to 600 V for AC voltage and 0 to 1000 A for AC current, it offers sufficient flexibility for different applications. In addition to measuring active power, power factor, active energy, and frequency, the power meter also allows for monitoring of energy consumption and associated costs. With its compact dimensions of 220 x 195 x 105 mm, it is handy and easy to use. The device's internal memory can store up to 2000 data records, which can be conveniently accessed via the LCD display. However, to transfer the data to a PC, the installation of the included software is required, which enables both tabular and graphical visualization of the data. Additionally, the data can be exported to a text document. Continuous data recording, which can be initiated via the power meter, occurs at one-second intervals until the memory is full. This memory can only be accessed on the device itself. Furthermore, alarm functions for upper and lower limits for measured power, AC voltage, and AC current can be set. The integrated cost function allows the operator to set a cost factor to display the total consumption costs. A weight factor can also be set to determine, for example, gas consumption. Overall, the power meter offers a wide range of applications and functionality for measuring and monitoring electricity and energy consumption.
6. PCE Instruments Auslaufbecher zur Messung der Viskosität
The outflow cup for measuring viscosity is a precise instrument used in various industrial and scientific applications. Made in China, this cup features a robust construction with a height, length, and width of 85 millimeters each, and a weight of 353 grams. The cup is made from high-quality material and comes with a factory calibration certificate as well as an instruction manual to ensure easy handling and accurate measurements. The included glass plate enhances user-friendliness and provides a clear view of the measurement values. The outflow cup is suitable for use in a temperature range of 10° to 40° C, making it versatile. This measuring instrument is ideal for professionals who need to perform precise viscosity measurements and is suitable for both laboratory applications and industrial use.
7. PCE Instruments Strommessumformer
PCE Instruments Isolating Converter PCE-P17I
Manufacturer: PCE Instruments
Designation: PCE Instruments Isolating Converter PCE-P17I
Type: Measuring Devices
Country of Origin: PL
Operating Conditions: -20 ... 65 °C, 0 ... 95 % r. H.
Storage Conditions: -20 ... 65 °C, 0 ... 95 % r. H.
Dimensions: Mounting width 6.2 mm
Weight: 80 g
The isolating converter is used when signals need to be galvanically separated. For example, it separates connected grounds. Often, measuring converters or transducers without an isolating converter have their grounds connected, which can lead to measurement errors due to signal overlaps. The isolating converter prevents this issue from occurring. It is frequently used to utilize both current signals from the PCE-P18. In combination, the isolating converter can then transmit the measurement signals to the PCE-KD5, where the galvanically separated signals are processed cleanly.
Highlights:
- Galvanic isolation of 0 ... 20 mA signals
- Powered via current loop
- Compact installation width
- Mountable on DIN rail
- Filters high-frequency interference signals
- Simple design
Scope of Delivery:
1 x Isolating Converter PCE-PG17I
1 x User Manual
EAN: 4250348710574.
8. PCE Instruments Heizhaube
PCE Instruments Heating Hood PCE-HM 10000
Manufacturer: PCE Instruments
Designation: PCE Instruments Heating Hood PCE-HM 10000
Type: Measuring Devices
Country of Origin: CN
Power Supply: 230 V AC / 50 Hz
Plug Type: Protective Contact Plug
Operating Conditions: 5 ... 40 °C, 0 ... 90 % r. H.
Storage Conditions: 5 ... 40 °C, 0 ... 90 % r. H.
Dimensions (H x D): 310 x 395 mm
Additional Dimensions: Internal Dimensions Ø315 x 175 mm
Article Type: For 10000 ml Round Flask, max. 450 °C
A heating hood is used wherever samples or liquids need to be heated in the laboratory. The liquid for heating is placed in a round flask inside the heating hood and warmed using the heating elements. A heating hood is an auxiliary device used in laboratories. It helps you heat or temper various samples, liquids, or chemicals in the lab. The round flask, which holds 5000 ml, is placed in a crocheted net and heated using the heating elements below. The device has a power of 1200 watts and reaches a temperature of 450 °C. The simple fact that the heating hood accommodates a round flask with a capacity of 10000 ml shows that a relatively large amount of liquid can be heated. Despite the large volume, it is possible to heat the entire 10 liters as quickly as possible, as it only requires a short heating time to achieve the desired result. Temperature regulation on the heating hood is done via a continuously adjustable rotary switch.
Highlights:
- Power: 1200 W
- Operating Temperature: 0 ... 450 °C
- Short Heating Time
- For 10000 ml Round Flask
- With Rotary Switch
- With Built-in Controller
Scope of Delivery:
1x Heating Hood PCE-HM 10000
1x User Manual
EAN: 4250348718471.
9. PCE Instruments Ford Becher zur Messung der Viskosität
Ford flow cup / International standard ASTM D1200, D333, and D365. Machine-manufactured, anodized aluminum with a replaceable stainless steel nozzle. Ford flow cups are used for the easy and quick measurement of liquids to determine their viscosity. However, it should be noted that this is only effective for less viscous liquids. Thick pastes and other high-viscosity substances are not suitable for measurement with a flow cup.
The design of a flow cup is standardized according to a DIN norm, ensuring consistency. It consists of a cylindrical hollow body that usually ends in a replaceable nozzle. The openings of the nozzles, like the cup itself, are subject to a specific DIN standard.
Measurement is carried out as follows: First, cover the nozzle at the bottom and fill the substance to be measured into the cup. It is important to ensure that the cup is filled to the top. An overflow channel prevents the measurement from being distorted by liquid running down the sides. Then, a glass plate is slid over the edge of the cup to remove any excess material. You can then open the nozzle again. The resulting negative pressure keeps the material in the cup. When you pull the glass plate horizontally away from the cup, you must start the stopwatch. As soon as the outflowing stream breaks for the first time, you need to stop the time and record it.
When using a flow cup, it is particularly important to ensure that it is thoroughly cleaned after each measurement, as residues in the nozzle and cup can distort subsequent results. Additionally, deep scratches or multiple scratches in the cup can lead to measurement uncertainties, as the removed material alters the volume of the cup and thus does not comply with the specified DIN standard.
10. PCE Instruments Rund - Probenschneider
The round sample cutter impresses with its compact dimensions and robust steel housing. With the four internal blades of the round sample cutter, you can separate a 10 cm² sample (non-woven fabric, paper, leather, textile, cork) in just seconds. A quarter turn is enough to remove the sample and measure its surface weight.
