Lab power supply
CHF469.90
MeanWell Mean Well AC/DC power supply module, closed RSP-1500-5 5.5 V/DC 240 A 1200 W output voltage reg
Best MeanWell products in the Lab power supply category
On this page you'll find a ranking of the best MeanWell products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. MeanWell Mean Well AC/DC power supply module, closed RSP-1500-5 5.5 V/DC 240 A 1200 W output voltage reg
High-quality, closed switching power supplies with metal housing and screw terminals. Features:
- Enclosed design with fan
- Universal input
- Short-circuit, overload, and overvoltage protection
- Screw terminals
Technical data:.
2. MeanWell SMDDC/DC Converter Modules DETN02 Series SMD Case Dual Output 1
The Mean Well DETN02L-05 DC/DC converter module is a compact and powerful device designed for various applications in electronics. With an output power of 2 watts and an output current of 200 mA, this module provides a reliable power supply for devices that require a stable DC voltage. It is housed in an SMD package, making it easy to integrate into different circuits. The module operates over a wide temperature range of -40 °C to 100 °C, making it suitable for use in demanding environments. Its high humidity tolerance allows for versatile applications. Additionally, it meets RoHS and EN55032 certifications, highlighting its safety and environmental friendliness.
- Two outputs for flexible power supply
- Operating temperature range of -40 °C to 100 °C
- High humidity tolerance of 20% to 90%
- RoHS and EN55032 certified for safety and environmental friendliness.
3. MeanWell AC/DC power supply module, closed RSP-
Constant voltage power supply in metal housing with screw terminals. Active PFC filter, active cooling via fan, on/off control input, and remote sense connection for correct voltage at the load. Output voltage can be adjusted by external control voltage or resistor. Auxiliary voltage output (AUX) for parallel operation 1+1.
4. MeanWell Power Supply Switch Mode 15V 75W
Output voltage: 15 V dc
Output current: 5 A
Rated power: 75 W
Input voltage: 120 to 370 V dc, 85 to 264 V ac
Mounting type: Enclosed mounting
Enclosure type: Closed
Length: 159 mm
Width: 97 mm
Depth: 30 mm
Ripple and noise voltage: 120 mV ss
Load regulation: ±0.5 %
Line regulation: ±0.5 %
Min. temperature: -25 °C
Max. temperature: +70 °C
Operating time: 296.7 kh
UL60950-1, UL62368-1 / TÜV EN60950-1, EN61558-1, EN61558-2-16 / CCC GB4943 / CB IEC60950-1, IEC62368-1. UL / CUL / TUV / CCC / CB / CE. Mean Well, Series RSP-75, 75 W, encapsulated switch-mode power supplies. The Mean Well RSP-75 is a series of encapsulated 75 W AC/DC switch-mode power supplies with a low profile and single output. The RSP-75 features a modern high-performance circuit topology and power factor correction, achieving an efficiency of up to 89%. This enclosed power supply can operate from -30 °C to +40 °C with cooling by free air convection or up to +50 °C ambient temperature at full load, and even up to +70 °C with appropriate power derating. The RSP-75 offers an on/off control as well as protection against short circuit, overload, overvoltage, and overtemperature. This AC/DC power supply meets global requirements for UL, CUL, TÜV, CCC, CB, and CE regulations, as well as the TÜV EN61558-2-16 certification, fulfilling the requirements for electrical appliances. Applications include industrial automation systems, mechanical and electrical equipment, household appliances, measuring instruments, or any other systems requiring flat 1U installations. Flat design with a height of 30 mm, suitable for 1U mounting. Universal AC input range: 85 to 264 V. Integrated active power factor correction. High efficiency up to 89%. Fanless design, cooling by free air convection. Operating temperature range: -25 to +70 °C. Protection: Short circuit, overload, overvoltage. Integrated constant current limiting. Remote on/off control. LED indicator light for operational status.
5. MeanWell AC/DC power supply module closed
The AC/DC power supply module from MeanWell is a powerful and reliable laboratory power supply housed in a robust metal casing. With a total output of 151.2 watts and an output voltage of 27 volts at a maximum output current of 5.6 amperes, this switching power supply is ideal for various applications in electronics and technology. Its flat design of only 30 mm allows for space-saving installation, while cooling is achieved through simple air convection, making maintenance easier. The device is equipped with an active PFC filter that improves energy efficiency and enables operation over a wide voltage range of 85 to 264 V AC. Additionally, the power supply offers comprehensive safety features, including overvoltage, overheating, and short-circuit protection, ensuring reliable performance.
- Active PFC filter to improve energy efficiency
- Operating temperature range of 20 to 70 °C
- MTBF of 290,700 hours for high reliability
- LED indicators for status monitoring
- Certified according to UL60950-1 and EN61558-1 for safety.
6. MeanWell RSP-1600-24 Power Supply & Voltage Converter 1600 W
We have expanded our range to include the extremely compact 1600W power supplies from the Mean Well RxP-1600 series. These power supplies feature a high power density of 25 watts/inch³ and an efficiency of up to 93.5%. Both current and voltage are programmable. The Mean Well power supply is available as a stand-alone product (RSP-1600) as well as in a plug-in version for a 19'' rack with a 1U profile and a height of 41 mm (RCP-1600). As a battery charger, it is named RPB-1600, and the rack-mounted battery charger is called RCB-1600. Through the PM-Bus interface, the charging curves of the battery chargers can be precisely adjusted to the battery used. Control via the PM-Bus is also possible with the RCP-1600 power supply, while the interface is optional for the RSP-1600. Due to their high stability and good cost-benefit ratio, these Mean Well power supplies are used in a variety of systems. Each model in the RxP-1600 series has all the important safety certifications such as UL, CUL, TÜV, and CE. Additionally, Mean Well offers a warranty on the power supplies.

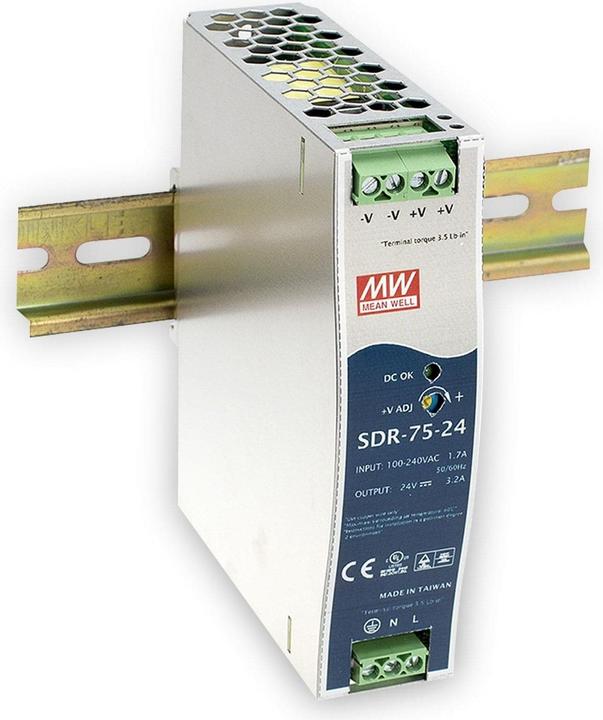

7. MeanWell DIN rail power supply (DINRail)
The Mean Well DIN-Rail power supply is a single-phase, primary-switched power supply designed for mounting on DIN rails. It offers a total output of 77 watts and is housed in a compact SLIM metal case. With a wide input voltage range of 88 to 264 VAC and a high efficiency of 90%, this power supply is ideal for various applications in industry and laboratories. The peak load function allows for a temporary power boost of up to 150%, providing additional flexibility in power supply. The device is equipped with comprehensive energy protection features, including overvoltage, overheating, and short-circuit protection, ensuring reliable and safe operation. The operating conditions are also robust, with a temperature range of -30 to 70 °C and a high mean time between failures (MTBF) of 481,900 hours.
- Input frequency of 47 - 63 Hz
- Hold-up time of 80 ms for stable output voltage
- Energy protection features: overvoltage, overheating, overloading, short circuit
- Operating temperature range of -30 to 70 °C
- Certified according to EN60950-1 and UL508.
8. MeanWell AC/DC Built-in power supply Switching power supply
We have expanded our range to include the extremely compact 1600W power supplies from the Mean Well RxP-1600 series. These power supplies feature a high power density of 25 watts/inch³ and an efficiency of up to 93.5%. Both current and voltage are programmable. The Mean Well power supply is available as a stand-alone product (RSP-1600) as well as in a plug-in version for a 19'' rack with a 1U profile and a height of 41 mm (RCP-1600). As a battery charger, it is named RPB-1600, and for rack-mounted battery charging, it is called RCB-1600. Through the PM-Bus interface, the charging curves of the battery chargers can be precisely adjusted to the battery used. Control via the PM-Bus is also possible with the RCP-1600 power supply, while it is optional for the RSP-1600. Due to their high stability and good cost-benefit ratio, these Mean Well power supplies are used in a variety of systems. Each model in the RxP-1600 series comes with all important safety certifications such as UL, CUL, TÜV, and CE. Additionally, Mean Well offers a warranty on the power supplies.

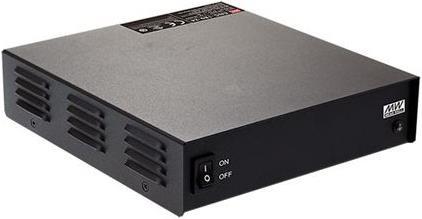

9. MeanWell Power Adapter Desk Top C14 55.2V 243W
Input voltage = 127 → 370 V dc, 90 → 264 V ac
Rated output voltage = 55.2V dc
Output current range = 0 → 4.4A
Rated output power = 243W
Number of outputs = 1
Controller type = Switching power supplies
Hum and interference voltage = 350mV ss
Network adjustment range = +0.5%.
Load regulation range = +0.5%.
Operating time = 170500h
Approved according to IEC60950-1, UL60950-1EMV emission: Complies with EN55022 (CISPR22) Class B, EN61000-3-2,-3, FCC PART 15 / CISPR22 Class BEMV immunity: Complies with EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, light industrial class, criterion A. Mean-Well ENP-240 Series Desktop Power Supplies The Mean-Well ENP-240 Series Desktop Power Supplies have a standard width of 7 inches for mobile phone use. With a rated power of 240W and a rugged design, this series also delivers the most commonly used voltages in communications applications. ENP-240 desktop power supplies can be operated in a temperature range between -30 °C and +70 °C and are cooled by free air convection. Characteristics and advantages:. Universal AC input and full range. Highly efficient circuit. Overload, overvoltage, overtemperature and short-circuit protection. Power consumption at zero load below 0.15 W. Integrated power factor correction. 125 % peak load capacity. Without fan. Energy Efficiency Level VI. Efficiency between 91% and 94% (depending on model). Conforms to EISA 2007/DoE, NRCan and EU ErP. Product applications:. These desktop power supplies were developed for communication-relevant applications. Suitable areas of application include TV antenna equipment, surveillance systems, electric scooter charging and mobile land radio service systems.

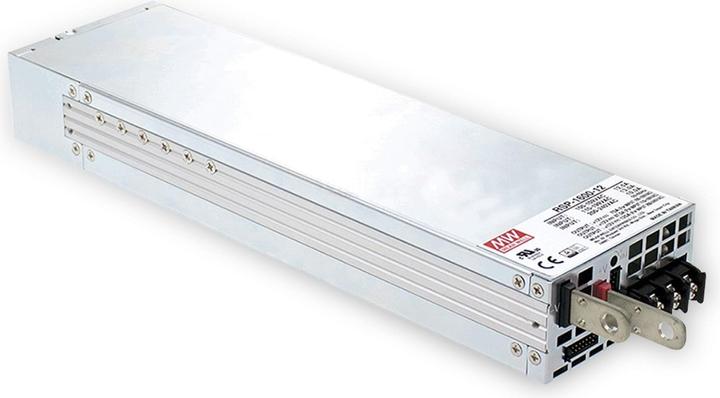

10. MeanWell Bloc d' à découpage RSP-160 0-12
We have expanded our range to include the extremely compact 1600W power supplies of the Mean Well RxP-1600 series. These power supplies feature a high power density of 25 watts/inch³ and an efficiency of up to 93.5%. Both current and voltage are programmable. The Mean Well power supply is available as a stand-alone product (RSP-1600) as well as in a plug-in version for a 19'' rack with a 1U profile and a height of 41 mm (RCP-1600). As a battery charger, it is named RPB-1600, and for rack-mounted battery charging, it is RCB-1600. Through the PM-Bus interface, the charging curves of the battery chargers can be precisely adjusted to the battery used. Control via the PM-Bus is also possible with the RCP-1600 power supply, while the interface is optional for the RSP-1600. Due to their high stability and good cost-effectiveness, these Mean Well power supplies are used in a variety of systems. Each model in the RxP-1600 series comes with all important safety certifications such as UL, CUL, TÜV, and CE. Additionally, Mean Well offers a warranty on the power supplies.
