MeanWell Power Supply Switch Mode 15V 75W

Output voltage: 15 V dc
Output current: 5 A
Rated power: 75 W
Input voltage: 120 to 370 V dc, 85 to 264 V ac
Mounting type: Enclosed mounting
Enclosure type: Closed

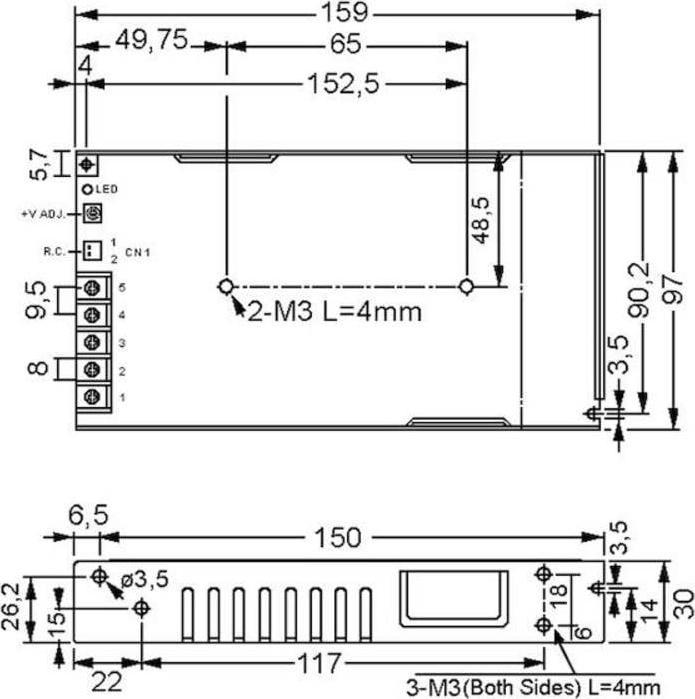

Length: 159 mm
Width: 97 mm
Depth: 30 mm
Ripple and noise voltage: 120 mV ss
Load regulation: ±0.5 %
Line regulation: ±0.5 %
Min. temperature: -25 °C
Max. temperature: +70 °C
Operating time: 296.7 kh

The Mean Well RSP-75 is a series of encapsulated 75 W AC/DC switch-mode power supplies with a low profile and single output. The RSP-75 features a modern high-performance circuit topology and power factor correction, achieving an efficiency of up to 89%. This enclosed power supply can operate from -30 °C to +40 °C with cooling by free air convection or up to +50 °C ambient temperature at full load, and even up to +70 °C with appropriate power derating. The RSP-75 offers an on/off control as well as protection against short circuit, overload, overvoltage, and overtemperature. This AC/DC power supply meets global requirements for UL, CUL, TÜV, CCC, CB, and CE regulations, as well as the TÜV EN61558-2-16 certification, fulfilling the requirements for electrical appliances. Applications include industrial automation systems, mechanical and electrical equipment, household appliances, measuring instruments, or any other systems requiring flat 1U installations. Flat design with a height of 30 mm, suitable for 1U mounting. Universal AC input range: 85 to 264 V. Integrated active power factor correction. High efficiency up to 89%. Fanless design, cooling by free air convection. Operating temperature range: -25 to +70 °C. Protection: Short circuit, overload, overvoltage. Integrated constant current limiting. Remote on/off control. LED indicator light for operational status.
