Best Exsys products in the Interface cable category
On this page you'll find a ranking of the best Exsys products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Exsys USB serial cable 1x RS232/422/485/TTL
The EX-13003 4-in-1 USB to serial cable with A and C connectors provides an RS-232/422/485 serial interface as well as RS-232 compatible TTL 5V or 3.3V logic levels. The serial connections are easily made on the integrated terminal block. Simple connection to the USB-A or USB-C port means there is no need to open the computer, and the EX-13003 can be installed while the system is running.
Interface: RS-232 V.24, RS-422/485 and TTL/CMOS
FIFO buffer: 16C550 with 128 Byte
TTL logic level: 5V / 3.3V
Data bits: 7 and 8 / Stop bits: 1, 2 / Parity: none, even, odd, space, mark
Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Signals RS-422: 4-wire (TXD+/-, RXD+/-)
Signals RS-485: 2-wire (Data+/-, Data +/-)
Powered by USB bus (bus power)
Chipset: FTDI.

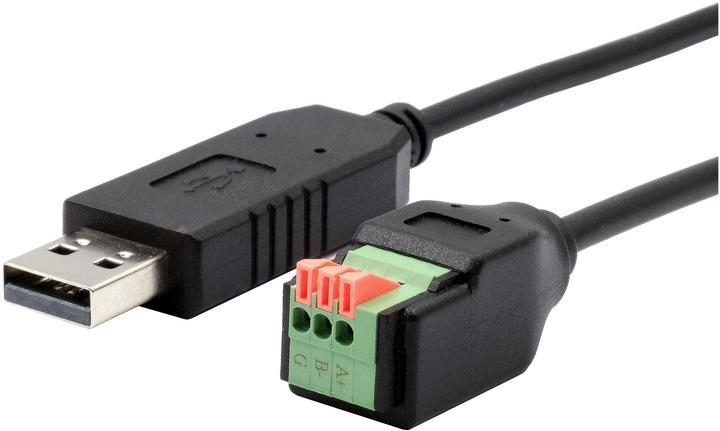

2. Exsys USB serial cable 1x RS485
The USB to RS-485 cable with A connector provides a serial RS-485 output for PC, workstation or server via the USB 1.1, 2.0 or 3.2 bus. Due to the simple installation, the computer does not have to be opened and the EX-13009 can be installed while the computer is running. This makes it ideal for short-term RS-485 installations and e.g. in the service case of system operators.
Interface: RS-485 via a tool-free 3-pin terminal block
Signals: T/R+, T/R-, GND
Transmission distance: up to 1.2 km (9600 bps)
Power supply from USB bus (bus power)
Chipset: FTDI.
3. Exsys USB serial cable 1x RS232
The USB 2.0 to RS-232 cable with A connector provides a serial RS-232 High Performance UART 16C550 output. It specifically supports an external voltage of +5V on pin 9 of the socket. With easy installation, the computer does not need to be opened, and the EX-1311-2F-5V can be installed while the system is running. The EX-1311-2F-5V features a 9-pin socket (DCE) and can be directly connected to the end device. Two nuts are included to replace the knurled screws when the connecting cable has screws.
Interface RS-232 V.24 with +5V on pin 9 of the socket
16C550 FIFO Buffer with 16 bytes
I/O addresses and interrupts are assigned by the operating system
Data Bits: 7 and 8
Stop Bits: 1, 1.5, and 2
Parity: none, even, odd, space, and mark
RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power supply from the USB bus (Bus Power)
LED indicators for RX and TX
Interchangeable screws with hex nuts
Chipset: FTDI
Package includes: EX-1311-2F-5V, driver CD, 2x hex nuts, manual.

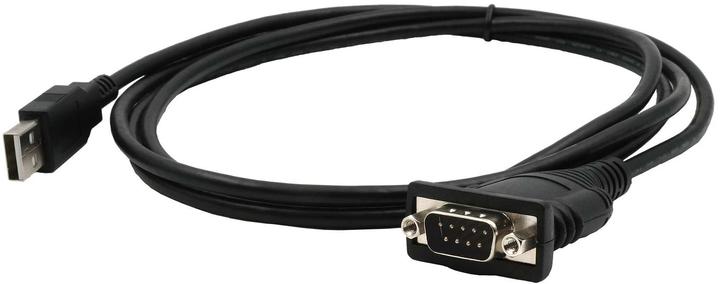

4. Exsys GmbH USB to 1S Serial RS-232 Port with 1.8 metre cable (FTDI chip set)
The USB to RS-232 cable with A connector provides a serial RS-232 high-performance UART 16C550 output. It is designed to extend an additional serial output for PCs, workstations, or servers via the USB 1.1, 2.0, or 3.2 bus. Thanks to its easy installation, the computer does not need to be opened, and the EX-13001 can be installed while the system is running.
Interface RS-232 V.24
16C550 FIFO buffer with 16 bytes
I/O addresses and interrupts are assigned by the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5, and 2
Parity: none, even, odd, space, and mark
RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power supply from the USB bus (Bus Power)
Chipset: FTDI
Package contents:
EX-13001, manual.
Interface cable
CHF28.90
Exsys GmbH USB to 1S Serial RS-232 Port with 1.8 metre cable (FTDI chip set)
1.80 m
5. Exsys USB 2..0 to 1S Serial RS-232 TTL/CMOS with 1.8 meter cable (FTDI chip set)
The USB 2.0 to RS-232 cable with A-connector provides one high-performance 16C550-type UART compatible RS-232 TTL/CMOS serial port. It is designed for PC, thin client, or server to provide instant COM port expansion via the USB 1.1 up to 3.2 Gen 1 Bus. The EX-1310-TTL provides a USB to RS-232 port with 5V, 3.3V, 2.5V, and 1.8V TTL/CMOS compatible logic levels. With easy installation, you do not need to open the computer system to install the EX-1310-TTL while the system is running.
Interface: RS-232 V.24 and TTL/CMOS
FIFO Buffer: 16C550 with 16 bytes
Logic Level: 5V, 3.3V, 2.5V, 1.8V (set with a dip switch)
Data Bits: 7 and 8 / Stop Bits: 1, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, GND
Power: from the USB bus (bus power)
Chipset: FTDI.
Interface cable
CHF45.70
Exsys USB 2..0 to 1S Serial RS-232 TTL/CMOS with 1.8 meter cable (FTDI chip set)
1.80 m
6. Exsys EX-1309-T
The USB 2.0 to RS-232 cable provides a serial RS-232/422/485 high-performance UART 16C550 output. It is designed to add an additional serial output for PCs, small workstations, notebooks, or servers via the USB 1.1 or 2.0 bus. With easy installation, the computer does not need to be opened, and the EX-1309-T can be installed while the system is running.

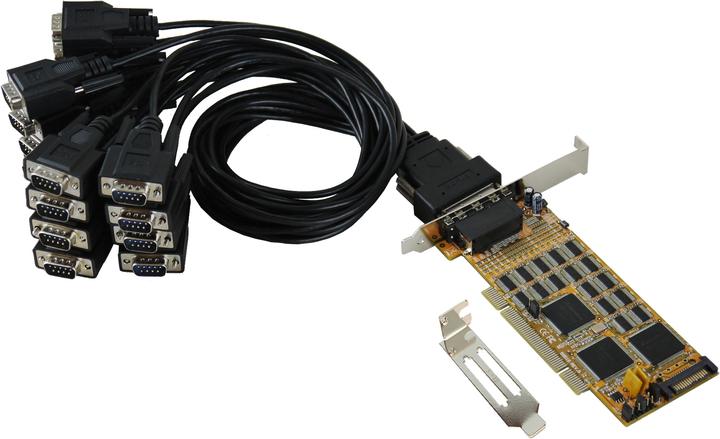

7. Exsys PCI 16S Serial RS232 card incl. LP bracket (SystemBase chip set)
The EX-41016-2 PCI I/O card provides sixteen serial RS232 High Performance UART 16C1050 outputs. It is designed to expand sixteen additional serial ports for PCs, workstations, or servers via the PCI or PCI-X bus. The card is fully Plug-and-Play compatible and supports Linux and SCO-Unix. The EX-41016-2 can also be installed in a low-profile computer case with a maximum height of 8 cm. Additionally, +5V or +12V can be configured on pin 9 of the serial connector for a POS system (Power over System).
Interface: RS232 V.24
FIFO Buffer: 16C1050 with 256 bytes
±15 kV IEC1000-4-2 ESD protection for RS232 I/Os
I/O addresses and interrupts are assigned by the system BIOS, IRQ sharing
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Flow Control RTS/CTS, XON/XOFF
Supports motherboards with 5V and 3.3V
+5V or +12V adjustable on pin 9 of all 16 connectors
Chipset: SystemBase 16C1054PCI
Package contents:
EX-41016-2, 2x Octopus cables, 32x nuts, low profile bracket, driver CD, manual.
8. Exsys EX-1344HMV USB 2.0 Type-B Metallic Interface Hub
The EX-1344HMV USB 2.0 to serial RS232/422/485 in a metal housing provides four serial RS232, 422, or 485 high-performance UART 16C550 combo outputs. It is designed to expand four additional serial outputs in a robust metal case for desktop computers, notebooks, or 48.30 cm (19") racks via the USB 2.0 bus. With easy installation, there is no need to open the computer. The included EX-K1542V cable with A-plug to B-plug can be attached to the EX-1344HMV using thumb screws, eliminating the need for a screwdriver. This ensures that the cable cannot come loose on its own. Optionally, the EX-1344HMV can be installed on a DIN rail in a 48.30 cm (19") rack using the EX-6099 (DIN-Rail Kit). The EX-1344HMV features LED indicators for operational functions and data transmissions. Interface: RS232 V.24, RS422, and RS485. FIFO Buffer: 16C550 with 16 bytes. Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark signals.
9. Exsys EX-1339HMV Serial Adapter
Exsys EX-1339HMV - Serial Adapter - USB 2.0 - RS-232, RS-422, RS-485 - 8 Ports
Product Description:
Exsys EX-1339HMV is a serial adapter featuring 8 ports. It is designed for DIN rail mounting and utilizes USB 2.0 as its interface type.
Dimensions:
- Width: 24.6 cm
- Depth: 8.5 cm
- Height: 2.3 cm
- Weight: 0.7 kg
Connectors:
- Number of Connectors: 8
Data Link Protocol:
- RS-232, RS-422, RS-485
Data Transfer Rate:
- 921.6 Kbps
Processor:
- FTDI
Product Certifications:
- USB 1.1, USB 2.0
System Requirements:
- Microsoft Windows CE
- Linux
- Microsoft Windows Server 2003
- Microsoft Windows 98SE/2000/ME/XP/Vista/7.
10. Exsys EX-1316HMV Serial adapter
The Exsys EX-1316HMV is a powerful serial adapter specifically designed to connect up to 16 RS-232 devices via a USB interface. This rack-mountable device provides a reliable solution for integrating older serial devices into modern computer systems. With a compact design and robust construction, the adapter is ideal for use in professional environments where space and efficiency are critical. The EX-1316HMV supports a variety of operating systems, including various versions of Microsoft Windows and Linux, making it a flexible choice for different applications. Power is conveniently supplied via USB, simplifying installation and operation. The adapter comes with an external USB cable and a mounting kit to ensure easy integration into existing systems.
- Supports up to 16 RS-232 connections via USB
- Rack-mountable design for space-saving installation
- USB-powered for easy handling
- Compatible with multiple operating systems, including Windows and Linux
- Includes external USB cable and mounting kit for easy installation.
