Best selling Energy monitors from NZR
On this page you'll find a ranking of the best NZR products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. NZR Electr.DIN rail meter
The NZR EcoCount SL 5//1A is a fully electronic energy meter designed for fixed installation in three-phase four-wire networks as well as single-phase two-wire networks. This meter allows for precise measurement of electrical active energy and can register up to two energy tariffs. With a compact design of only 4 modular units, the EcoCount SL 5//1A is ideal for DIN rail mounting indoors. It is designed for connection to current transformers with 5 A or 1 A secondary current in low-voltage networks and offers a variety of functions, including the display of active, reactive, and apparent power, as well as power factor, voltage, network frequency, and current, both total and per phase. The meter features an alarm functionality that supports configurable threshold values and allows for voltage-free reading as well as a reverse flow prevention. With its future-proof design through an expansion interface, the EcoCount SL 5//1A is a reliable choice for modern energy monitoring.
- Illuminated display with menu navigation via two control buttons
- Alarm functionality with configurable threshold values
- Resettable meter register and phase failure detection
- Future-proof with expansion interface for additional functions
- S0 pulse output, passive and potential-free according to DIN EN 62053-31.
2. NZR 63421315
Electronic three-phase meter, also approved as an alternating current meter via phase L3. The EasyM100 is a compact 3-phase, 4-wire active power meter that can also be used as a 1-phase, 2-wire meter (L3). It has a current range of 0.1-5(100) A, universal cage clamps, and a metal insert for a magnetic probe on the front.
Features include:
- 2 tariffs
- Bidirectional meter supply and consumption
- MID conformity assessed
- Meter cross mounting
- Two-line LC display in accordance with FNN specification EDL V1.2 with 6 digits for energy display in kWh
- Functionality in accordance with FNN specification EDL V1.2
- Expandable to intelligent metering system
- Suitable for photovoltaic systems
- Rolling info line
- Content partly configurable via MSB interface
- Operation for final consumers via optical display and optical call button with PIN protection and tacho-zero setting
- Instantaneous power (W)
- Historical energy values (kWh) for day, week, month, year
- Storage depth over two years
- Bidirectional MSB interface (D0)
- Protocol in accordance with SML 1.04
- Transmission of meter identification, meter readings, and all services every second (push telegram)
- Unidirectional INFO interface
- Expandable by plug-on modules as an extension to the intelligent measuring system according to the MsbG
- NFC/RFID interface and additional functions
Specifications:
- Voltage (U): 3x230/400V (4-wire), 1x 230 V (2-wire)
- Current (I): 0.1-5 (100) A
- Frequency (f): 50 Hz
- Accuracy (active): B
- Self-consumption voltage path: approx. 0.8 W (2.5 VA) per phase
- Self-consumption current path: approx. 0.005 W at 5 A, approx. 2 W at 100 A
- Temperature range (Tb): -40 to +70° C
- Protection class (housing): IP 51
- Weight: approx. 0.6 kg (without terminal cover)
- Dimensions (W x H x D): approx. 177 x 198 x 51 mm.
3. NZR Drehstromzähler

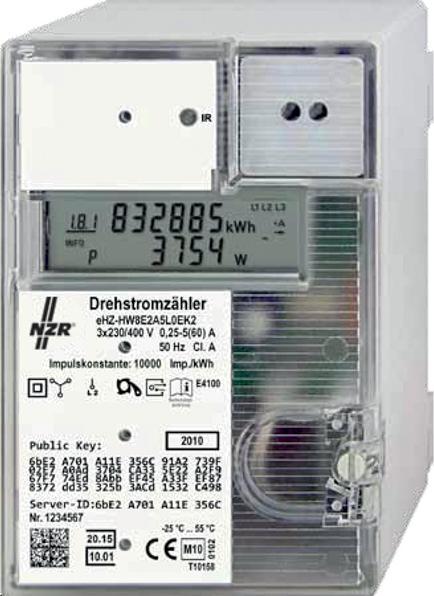

The three-phase meter from NZR is a sophisticated measuring device designed for the precise measurement of energy consumption in three-phase four-wire networks. With a maximum current rating of 100 A, this meter enables reliable measurement of active energy for both supply and demand. The meter is equipped with an SML interface and supports bidirectional measurement, making it ideal for modern applications. The permanent display of instantaneous power and the ability to call up historical consumption values over a period of up to two years provide comprehensive insights into energy consumption. The meter is also prepared for integration into smart metering systems, making it future-proof. The user-friendly operation is supported by a 2-line display and optional PIN-protected functionality. The three-phase meter has a robust design and is resistant to magnetic influences, which ensures its reliability in various environments.
4. NZR 43420418

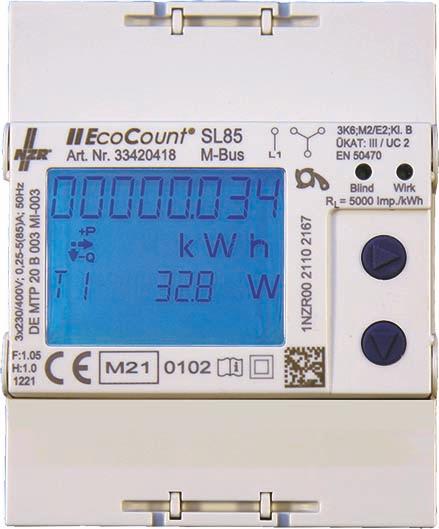

Three-phase meter EcoCount SL 85A, M-BUS, 0.25-585A, MID conformity assessed for delivery and consumption. The EcoCount SL meter in direct measurement design is a fully electronic electricity meter for permanent installation in three-phase four-wire networks or single-phase two-wire networks, intended to measure active electrical energy and register it in up to two energy tariffs. It is an indoor meter designed as a built-in device for mounting on DIN rails in a compact design of only one modular unit. The meter features a backlit display, menu navigation via two control buttons, and displays active, reactive, and apparent power, power factor, voltage, network frequency, and current for both total and per phase. Alarm functionality with parameterizable thresholds, tariff switching, reading, resettable meter register, phase failure detection, rotation field detection, reverse flow prevention, bidirectional meter, delivery and consumption, conformity assessment according to MID. The display capacity dynamically adjusts to consumption. Initially, it shows 5.3 for whole and decimal places. As consumption increases, the decimal point shifts up to the representation of 8.0, modular units, M-BUS, and S0 pulse output, future-proof with expansion interface and additional functions via EcoCount SL 85 MID M-Bus modules.
5. NZR DIN rail meter

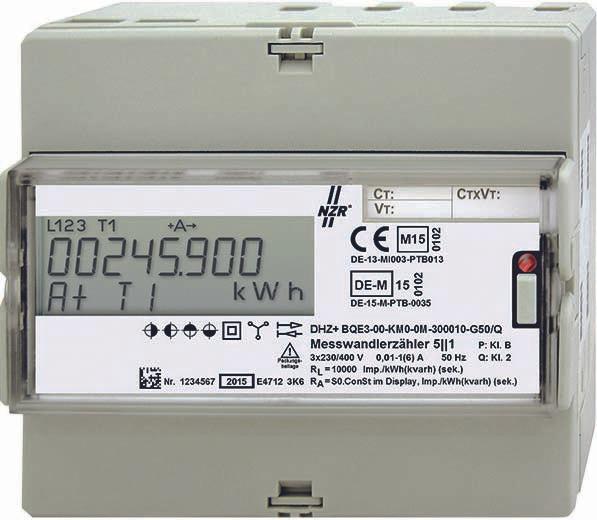

The NZR Hutschienenzähler DHZ+ M-Bus #57320418 is a highly advanced digital energy meter specifically designed for mounting on DIN rails. This electronic meter allows for precise measurement of active energy in 4-wire three-phase networks and supports a two-tariff billing option. With a nominal voltage of 230 V (N-L) and 400 V (L-L), as well as a maximum current of 80 A, it is suitable for a wide range of applications. The meter features a digital display that shows various measurement values such as energy value, voltage, current, and power factor. Additionally, it has integrated fault detection and allows for easy parameterization via a control button. The DHZ+ M-Bus is calibration-ready and complies with the Measuring Instruments Directive, making it a reliable choice for energy monitoring.
- Digital 2-tariff active energy meter for 4-wire three-phase networks
- Calibration-ready and compliant with the Measuring Instruments Directive
- Integrated fault detection and parameterization via control button
- Display of instantaneous values, power factor, and frequency
- M-Bus interface for easy data communication.
6. NZR Load profile

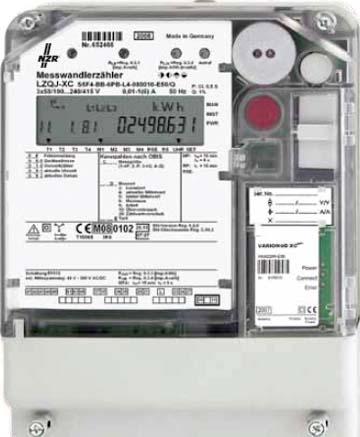

The Load Profile Multi-Tariff MID from NZR is a highly advanced energy measuring device specifically designed for the precise measurement of active and reactive energy in 3- and 4-wire networks. Equipped with a multi-power supply, it supports voltages from 3 x 58/100V to 3 x 240/412V and currents of 1(6)A. The digital three-phase meter offers comprehensive real-time measurement of current, voltage, power, frequency, and power factor. Internal control is managed by a real-time clock with battery backup, while external tariff controls are possible via an S0 input. The device features various communication interfaces, including D0, S0, and RS485 outputs, allowing for easy integration into existing systems. With a robust housing and an IP20 protection rating, the load profile is suitable for use in various environments.
- 4-quadrant meter for active and reactive energy measurement
- Real-time clock with battery backup for reliable timekeeping
- Expandable communication interfaces for flexible integration
- High accuracy: 1% for active energy, 2% for reactive energy
- Multi-tariff functionality for different billing models.
7. NZR SEM 16+ Energy Monitor
The NZR Standby Energy Monitor SEM 16+ is an electronic power meter specifically designed to monitor the energy consumption of individual electrical devices in households. With a maximum current of 16 amps and a nominal voltage of 230 volts, this device allows for precise measurement of electricity costs. The SEM 16+ is easy to use: after plugging in the device to be measured, it automatically begins a 24-hour measurement. Upon completion of the measurement, the results, including energy consumption and energy costs, are displayed on the digital screen. The measurement duration can be flexibly set to 1, 7, or 30 days, and the option to manually start and stop the measurement provides additional control. The monitor is designed as a plug-in device and has an IP20 protection rating, making it suitable for indoor use.
- Automatic 24-hour measurement of energy consumption
- Adjustable measurement duration of 1, 7, or 30 days
- Digital display of energy costs and consumption
- Easy handling due to plug-in design
- Suitable for use in households with a maximum power of 3680 watts.
8. NZR Alternating current meter
NZR Alternating current meter NORAX 1D+ Manufacturer: NZR Name: Alternating current meter mME WS max.60A Type: NORAX 1D+ Meter type: electronic Rated current (In): 5 A Maximum current (Imax): 60 A Frequency: 50 Hz Accuracy class: B Pole type: 1-phase Design: direct measurement Energy type: active power Suitable for: Purchase/delivery Tariff type: dual tariff Pulse rate: 10000 Imp/kWh (kvarh) Display type: digital Mounting type: surface-mounted Interface type: other Protection class (IP): IP51NZR Alternating current meter NORAX 1D+: more detailsMID, delivery and purchase, DT , EAN: 4048652103751.
9. NZR Communication module
The KNX bus is widely used in the control of home and building system technology. The SL-E KNX expansion module is used to connect the EcoCount SL energy meter to the KNX bus. The IR (infrared) interface located on the left side of the SL-E expansion module is intended for connecting the EcoCount SL generation electricity meters. All values available on the measuring device can be transmitted via the KNX bus. Power is supplied directly through the KNX bus, so only the bus cable (a standardized cable) needs to be connected. The interface features an ETS user program that allows for function configuration. For quick installation, the module can also be integrated without the ETS and is KNX quick capable. If needed, the device can also be operated with KNX SECURE. With the product database EcoCount SL-E_KNX.knxprod, it is possible to configure the EcoCount SL-E KNX expansion module.
10. NZR 23030627
The NZR electricity meter 23030627 is an electronic measuring device designed for the precise recording of energy consumption in three-phase networks. With a nominal voltage of 230/400 V and a maximum current of 60 A, this meter is suitable for both energy consumption and delivery. It features a digital display and allows measurement in two tariffs, making it particularly flexible for different billing models. The meter is intended for installation in switch panels and complies with the Measuring Instruments Directive (MID), underscoring its accuracy and reliability. The four-wire design and optical pulse output provide additional functionalities necessary for modern energy monitoring systems. Thus, the NZR electricity meter 23030627 is an appropriate choice for households and commercial applications that require precise and efficient energy monitoring.
- Calibrated and MID-compliant for reliable measurements
- Two-tariff design for flexible billing
- Optical pulse output for external data transmission
- Direct measurement for all three phases
- Digital display for easy readability.
