Best IFM products in the Electronics modules category
On this page you'll find a ranking of the best IFM products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

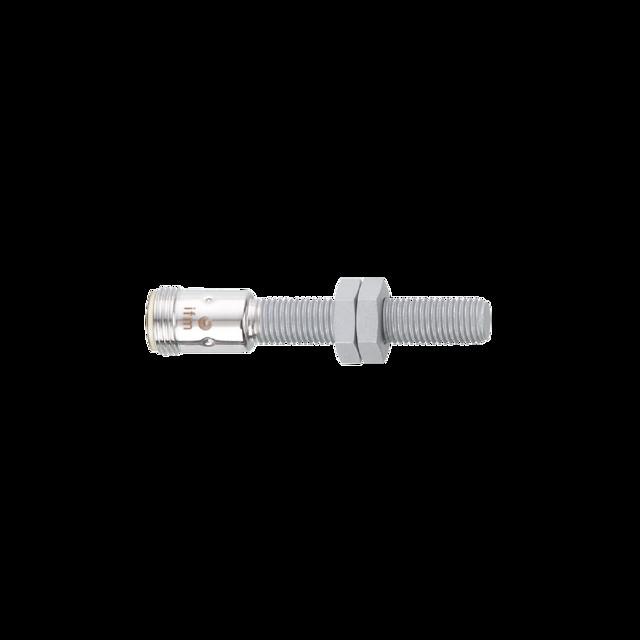

1. IFM IE5318
Ifm Electronic Sensor,ind.,M8x1,Plug IE5318 Manufacturer :Ifm Electronic Designation :Sensor,ind.,M8x1,Plug DC,pnp,no,sn=2mm,b Type :IE5318 Width of sensor :12 mm Height of sensor :62 mm Length of sensor :12 mm Switching distance :2 mm Type of switching output :PNP Housing design :Cylinder, thread Max. Max. output current at safe output :250 mA Supply voltage :10..36 V Rated control supply voltage Us at DC :10..36 V Voltage type :DC Material of housing :Metal Ifm Electronic Sensor,ind.,M8x1,Plug IE5318: more details Inductive sensors, Inductive sensor, M8 x 1, metal thread, Switching distance: 2 mm, flush mountable, 3-wire, DC PNP, Supply voltage: 10...36 V DC, Current consumption: 15 mA, Normally open contact, n.o., Plug connection, M12 connector, Material housing: Brass white bronze coated LCP , EAN: 4021179085052.

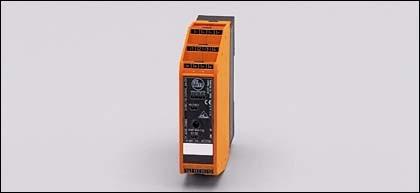

2. IFM AC2256

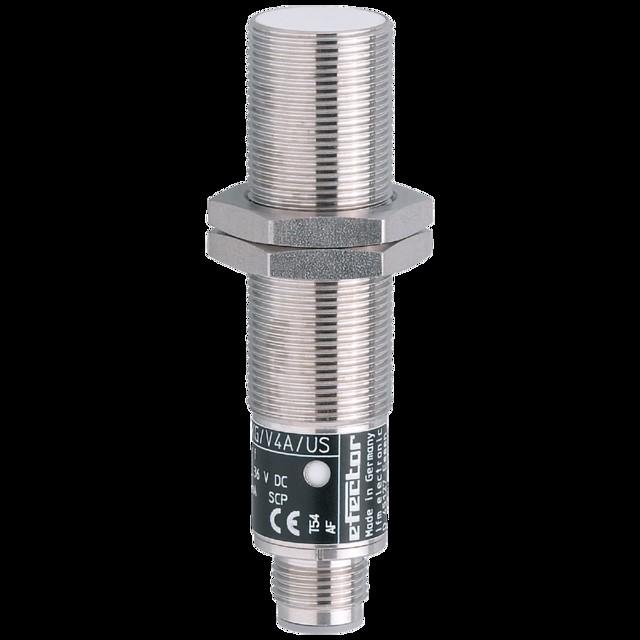

3. IFM IG5790
Inductive sensor
M18 x 1 / L = 76 mm
Switching distance 5 mm flush mountable
N/O contact
DC
PNP
M12 plug connection
IP 65
3-wire
Ambient temperature -25...100 °C
Switching frequency 700 Hz.

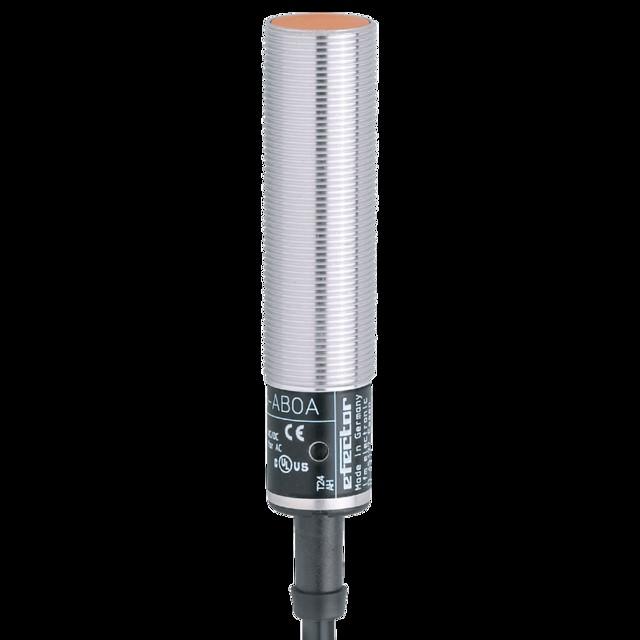

4. IFM IG5361
Ifm Electronic Sensor,ind. IGA3005-ANKG Manufacturer :Ifm Electronic Designation :Sensor,ind. 10-55 Type :IGA3005-ANKG Height of sensor :80 mm Mechanical installation condition for sensor :flush Switching distance :5 mm Design of electrical connection :Cable Housing design :Cylinder, thread Rated control supply voltage Us at DC :10..30 V Voltage type :DC Material of housing :Metal Ifm Electronic Sensor,ind. IGA3005-ANKG: more details Inductive sensors, Inductive sensor, M18 x 1, metal thread, switching distance: 5 mm, flush mountable, 3-wire, DC NPN, operating voltage: 10...36 V DC, current consumption: 15 mA, NO contact, n.o., connection cable, 2 m, PVC cable, 3 x 0.5 mm², material housing: brass white bronze coated PC (polycarbonate) , EAN: 4021179110181.

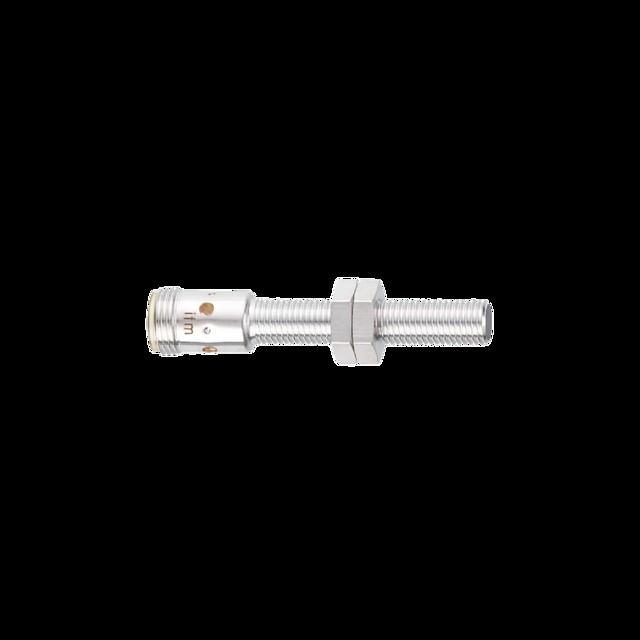

5. IFM IER200
Ifm Electronic Sensor IER200 Manufacturer :Ifm Electronic Designation :Sensor inductive Type :IER200 Ifm Electronic Sensor IER200: more details Inductive sensors, Inductive sensor, M8 x 1, Metal thread, Switching distance: 2 mm, Flush mountable, 3-wire, DC PNP, Operating voltage: 10...36 V DC, Current consumption: 20 mA, N/O contact, n.o., Plug connection, M12 plug connection, All-metal housing , Increased switching distance , Contacts gold-plated, Housing material: Housing: V4A (1.4404) non-stick coated active surface: V4A (1.4404) non-stick coated Fixing nuts: V4A (1.4404) non-stick coated , EAN: 4021179242271.

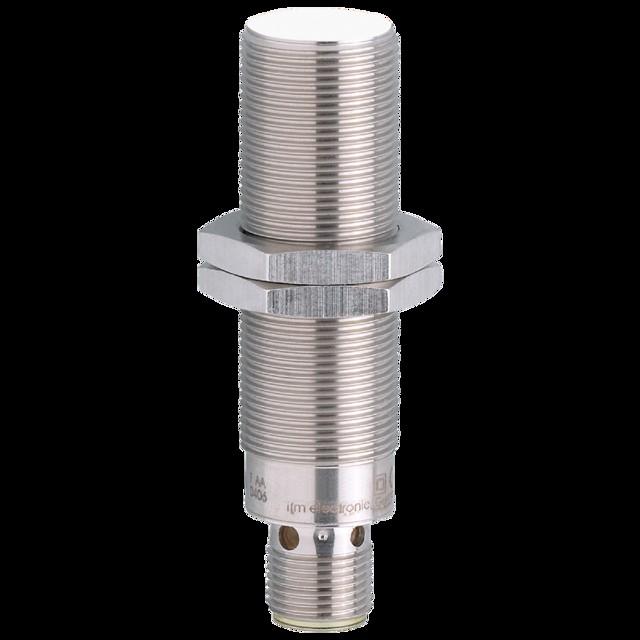

6. IFM IG6567
Inductive sensor
M18 x 1 / L = 70 mm
Switching distance 8 mm flush mountable
NC contact
DC
PNP/NPN
M12 plug connection
IP 67
IP 69K
2-wire
3-wire
Ambient temperature -40...85 °C
Switching frequency 200 Hz.

7. IFM IE5267
IFM IE5267 Inductive sensor M8x1 DC PNP.

8. IFM NI5012

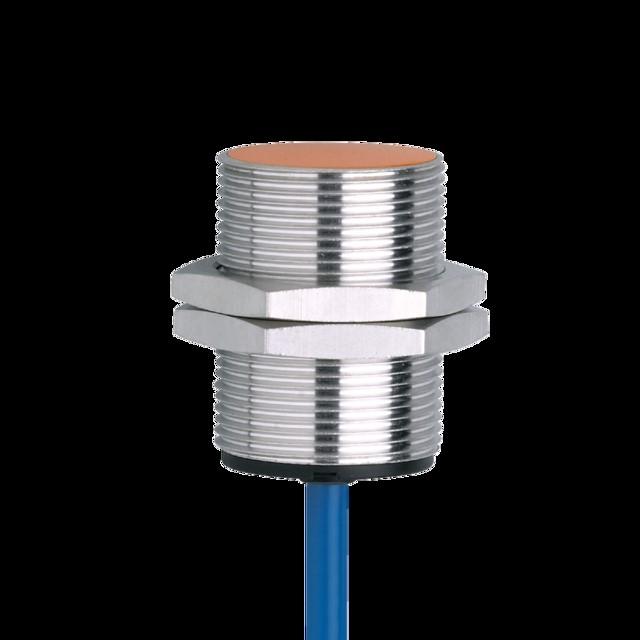

Inductive sensor
M30 x 1.5 / L = 41 mm
Switching distance 10 mm flush-mountable
NC contact
DC
NAMUR
10 m PVC cable
IP 67
2-wire
Ambient temperature -20...80 °C
Switching frequency 450 Hz.

9. IFM KF5015

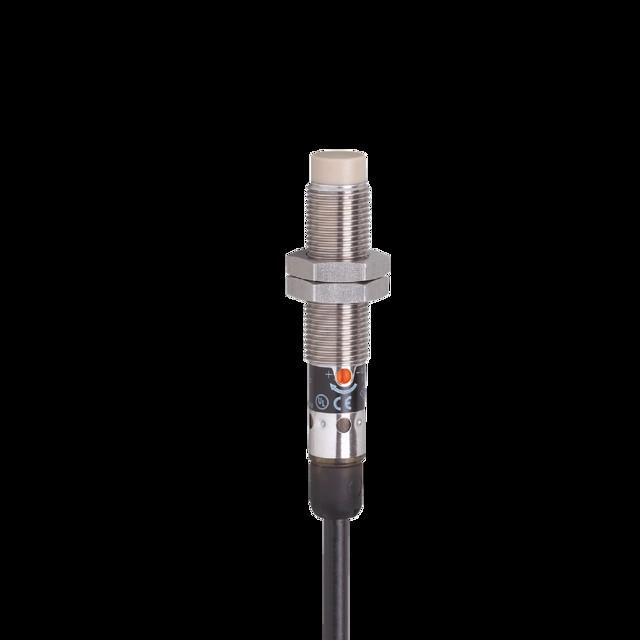

Capacitive sensor
M12 x 1 / L = 70 mm
Switching distance 8 mm not flush mountable
N/O contact
DC
PNP
2 m PUR cable
IP 65
3-wire
Ambient temperature -25...70 °C
Switching frequency 50 Hz.

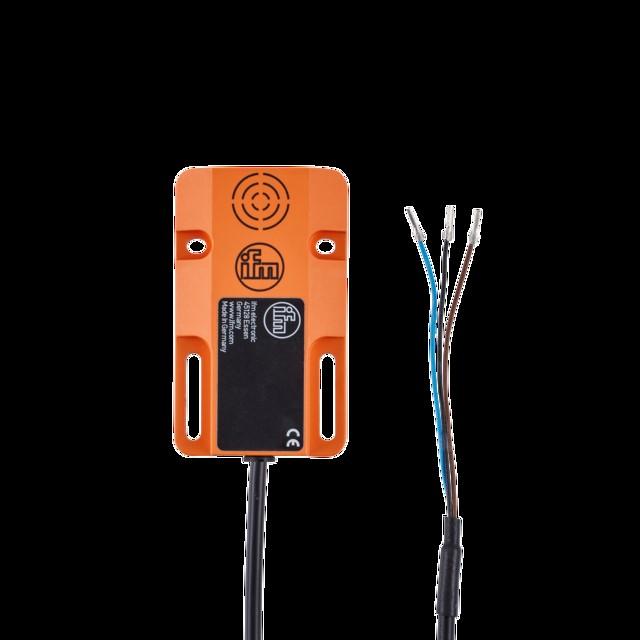

10. IFM IW5052
Inductive sensor
60 x 36 x 10 mm
Switching distance 5 mm flush mountable
N/O contact
DC
PNP
6 m PVC cable
IP 67
3-wire
Ambient temperature -25...80 °C
Switching frequency 400 Hz.
