Best selling Electronics modules from Arduino
On this page you'll find a ranking of the best Arduino products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Arduino MKR1000
The Arduino MKR1000 is an advanced electronics module specifically designed for the Internet of Things (IoT). It targets makers and developers who want to integrate cost-effective Wi-Fi connectivity into their projects without needing extensive knowledge in electronics. The module is based on the powerful Atmel ATSAMW25 System-on-Chip, which combines a 32-bit ARM Cortex-M0+ microcontroller, a Wi-Fi module, and a CryptoAuthentication chip. These components enable efficient and secure data transmission, making it ideal for IoT applications. The MKR1000 supports operation with a LiPo battery as well as an external 5V power source, with the battery automatically charging when an external power source is connected. With its strong processing power and numerous I/O interfaces, the MKR1000 is an excellent choice for developing battery-powered projects in a compact format.
- Based on the Atmel ATSAMW25 System-on-Chip for IoT applications
- Integrated Wi-Fi module for cost-effective wireless connectivity
- Supports LiPo battery operation with automatic charging feature
- High processing power with 32-bit ARM Cortex-M0+ microcontroller
- Easy programming and development via the Arduino IDE.
2. Arduino A000052 - Leonardo without Headers
Arduino Leonardo without Headers
The Arduino Leonardo is a microcontroller board based on the ATmega32u4. It features 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB port, a power jack, an ICSP header, and a reset button. It includes everything needed to support the microcontroller. Simply connect it to a computer using a USB cable or power it with an AC/DC adapter or battery to get started.
The Leonardo differs from all previous boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as both a mouse and keyboard in addition to a virtual serial/COM port. It also has other effects on the behavior of the board.
3. Arduino Mkr Proto Large Shield
This shield offers a larger prototyping area with over 300 solder points and makes it easier to connect components to your board.
Electronics modules
Quantity discount
CHF13.70 per piece for 2 units
Arduino Mkr Proto Large Shield
Shield
4. Arduino MKR WAN 1310 W/O ANTENNA
5. Arduino Mkr Env Shield
Connect an Arduino MKR board with an Ethernet cable instead of using WiFi.
6. Arduino A000080 - Mega Proto Shield Rev3 (PCB)
Arduino Mega Proto Shield Rev3
With the Arduino Prototyping Shield, you can easily design custom circuits. You can solder components to the prototyping area to create your project, or use it with a small breadboard to quickly test circuit ideas without the need for soldering. It features additional connections for all Arduino Mega I/O pins and provides space for both through-hole and surface-mount integrated circuits. It is a convenient way to turn your custom Arduino circuit into a single module.
- PCB size: 101.5 x 53.3 mm
- Weight: 0.013 kg.
Electronics modules
Quantity discount
CHF11.30 per piece for 2 units
Arduino A000080 - Mega Proto Shield Rev3 (PCB)
Shield

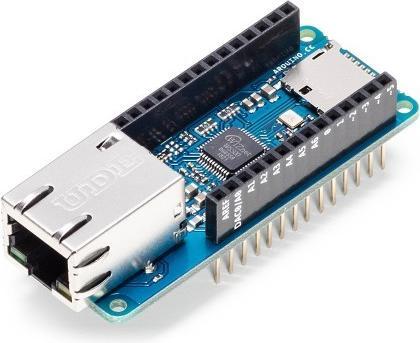

7. Arduino ASX00006 - MKR ETH Shield
Arduino MKR ETH Shield
Are you developing a project for an environment where wireless connections are unavailable or inefficient? The MKR ETH Shield enables a wired Ethernet connection between your MKR board and your network or the internet. This is especially useful for devices where electromagnetic interference is a concern or where special security requirements exist.
- Connectivity: Ethernet
- Connection: RJ45 socket
- SPI SD card slot: Yes
- Operating voltage of the circuit: 3.3 V
- Compatibility: MKR boards.

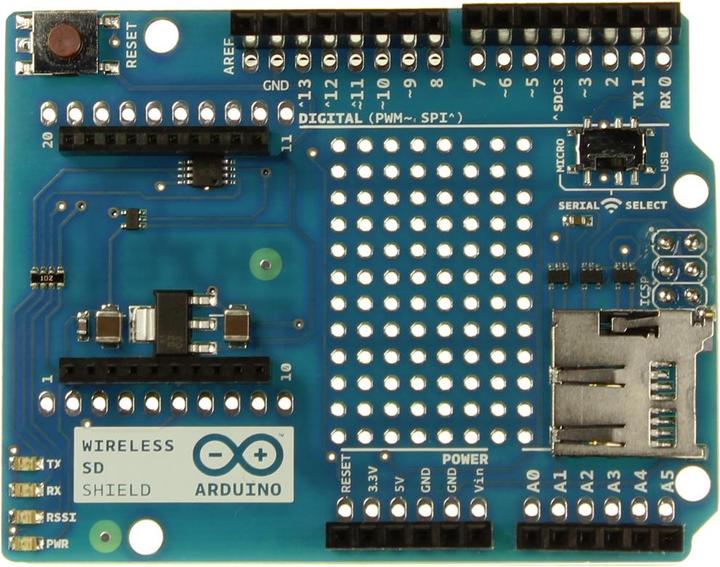

8. Arduino Wireless Protoshield SD
The Arduino Wireless Protoshield SD is a versatile electronics module that enables wireless communication for Arduino boards. It is specifically designed for use with Xbee modules but also offers the flexibility to integrate other modules with a similar footprint. The shield is equipped with a 3.3V regulator that ensures a reliable power supply for the Xbee modules. An integrated microSD card reader with a level converter allows for easy data storage and access. The range of wireless communication extends up to 100 feet indoors and up to 300 feet outdoors, making it ideal for various applications. The shield also provides a straightforward way to utilize the pins of the Xbee module through through-holes and allows for control via USB or microcontroller.
- Integrated microSD card reader with level converter
- Compatible with various wireless modules with a similar footprint
- Range of up to 100 feet indoors and 300 feet outdoors
- Easy pin layout for flexible connection options.
9. Arduino 4 Relay Shield
The Arduino 4 Relay Shield allows your Arduino to control high-power loads.

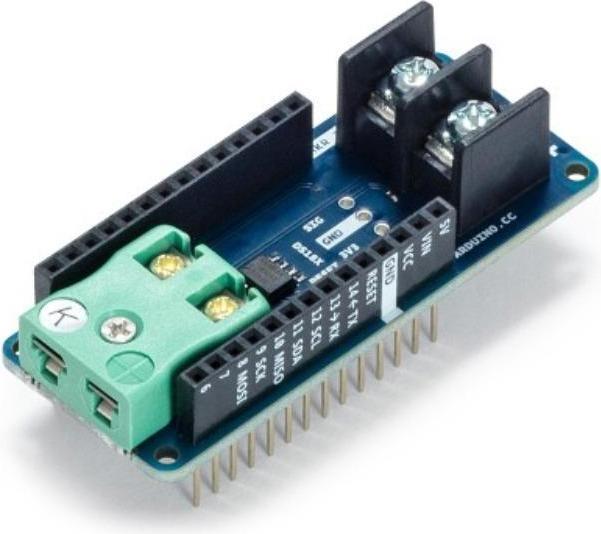

10. Arduino ASX00012 - MKR Therm Shield
Arduino MKR Therm Shield
With the MKR THERM Shield, a board from the MKR family can measure temperatures from a type K thermocouple and a digital one-wire sensor DS18Bxx. The thermocouple is a type of temperature sensor that offers high accuracy and a wide range of measured temperatures. Due to its analog properties, special interfaces are required, and this shield is based on the digital interface of the MAX31855 thermocouple.
The two connections of the MKR THERM Shield allow for the use of type K thermocouples with or without connectors on the metal wires.
The MKR THERM Shield has its own library for reading the temperature measured by the thermocouple.
- Connections: K-type, Dallas DS18S20 (for soldering), screw terminal block
- Input Voltage: 3.3 V
- Operating Voltage: 3.3 V
- Operating Temperature: -20 °C to +70 °C
- Communication: SPI/1Wire
- IC: MAX31855
- Length: 61 mm
- Width: 25 mm
- Weight: 32 g.
