Best MDT products in the Buttons + Switches category
On this page you'll find a ranking of the best MDT products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. MDT BE-TAL5504.01 Push-button Light 55 4gang
MDT Technologies Taster Light 55 4-fold BE-TAL5504.01
Manufacturer: MDT Technologies
Designation: Taster Light 55 4-fold RGBW, pure white glossy, neutral
Type: BE-TAL5504.01
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: no
With Bus Coupling: yes
Number of Activation Points: 4
Number of Buttons: 4
Power Consumption: 0.3 W
With LED Display: yes
With Labeling Field: no
With Display: no
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: other
Surface Finish: glossy
Color: white
RAL Number (similar): 9010
Transparent: no
With Room Thermostat: no
With Infrared Sensor: no
Protection Class (IP): IP20
Min. Depth of Device Box: 35 mm
MDT Technologies Taster Light 55 4-fold BE-TAL5504.01: additional details
KNX Taster Light 55 4-fold, RGBW, pure white glossy, neutral. Neutral design with 4 button surfaces. Suitable for 55 mm switch programs such as MDT range 55 or GIRA Standard 55, E2, E22, Event, or BERKER S1, B3, B7 or JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure. Multi-tap function sends up to 4 values to the same or different objects. Innovative group control with long/extra long button press. Single button operation for switching, dimming, blinds, values. Switching between up to four values or scenes. Short/Long button press with 2 objects. Four RGBW status LEDs. LED brightness controllable via day/night or brightness object. Integrated bus coupler.

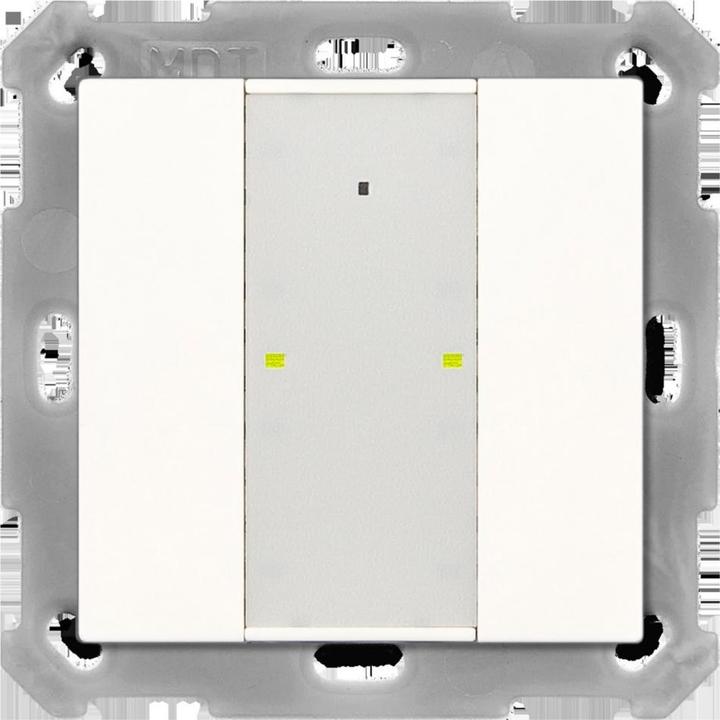

2. MDT BE-TA55P2.G2
MDT technologies Taster Plus 55 BE-TA55P2.G2
Manufacturer: MDT technologies
Description: Taster Plus 55 double, glossy pure white
Type: BE-TA55P2.G2
KNX bus system: yes
KNX wireless system: no
Wireless bus system: no
LON bus system: no
Powernet bus system: no
Other bus systems: none
Bidirectional wireless: no
Mounting type: flush-mounted
With theft/dismantling protection: no
With bus coupling: yes
Number of operating points: 2
Number of buttons: 2
Power consumption: 0.3 W
With LED display: yes
With labeling field: yes
With display: no
Material: plastic
Material quality: thermoplastic
Surface finish: glossy
Color: white
RAL number (similar): 9010
Transparent: no
With room thermostat: no
With infrared sensor: no
Protection class (IP): IP20
Minimum depth of device box: 35 mm
MDT technologies Taster Plus 55 BE-TA55P2.G2: additional details
KNX Taster Plus 55 double, glossy pure white. Version with 2 buttons and LEDs for operation/status indication and orientation light. Suitable for 55 mm switch programs, e.g., MDT range 55 or GIRA Standard 55, E2, E22, Event, or BERKER S1, B3, B7 or JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure. Central labeling field with cover film for individual labeling. The buttons can be freely configured as a pair or single buttons. Single and double button operation for switching, dimming, blinds, values. Innovative group control with long/extra-long button press. Switching between up to four values or scenes. Short/long button press with 2 objects. 4 logic blocks. 2 operation/status LEDs (Red/Green) and orientation light can be controlled independently. Switching object for controlling LED priority. Installation in switch box with supplied mounting ring. Integrated bus coupler. EAN: 4251916112394.
3. MDT Glass button
MDT technologies Glass Touch Panel Plus 8-fold BE-GTT8S.01
Manufacturer: MDT technologies
Designation: Glass Touch Panel Plus 8-fold black, with temperature sensor
Bus system KNX: yes
Bus system KNX wireless: no
Bus system wireless bus: no
Bus system LON: no
Bus system Powernet: no
Other bus systems: none
Bidirectional wireless: no
Mounting type: flush-mounted
With theft/dismantling protection: no
With bus coupling: yes
Number of control points: 8
Number of buttons: 8
Power consumption: 0.3 W
With LED display: yes
With labeling field: yes
With display: no
Material: glass
Material quality: other
Surface protection: other
Surface finish: glossy
Color: black
Transparent: no
With room thermostat: no
With infrared sensor: no
Protection class (IP): IP20
Minimum depth of device box: 35 mm
Further details: KNX Glass Touch Panel Plus 8-fold, black, with temperature sensor. Version with 8 sensor surfaces, temperature sensor, and LEDs for operation/status indication. Equipped with a temperature sensor to measure room temperature. The buttons can be freely configured as button pairs or individual buttons. Values can be sent, forced control and switching commands can be set. Short/long button press with 2 objects. Surrounding orientation light. White/red LED per sensor surface. LED brightness adjustable in 5 levels via day/night object. Single and double button operation for dimmer/blind functions. Labeling film to be inserted under the glass surface. Installation in switch box, delivery includes labeling film. Dimensions (H x W): 163 x 92 mm. Integrated bus coupler.
4. MDT BE-GTL20W.01 Glass push-button II Light
MDT technologies Glastaster II Light 2-fold BE-GTL20W.01
Manufacturer: MDT technologies
Designation: Glastaster II Light 2-fold RGBW, white, neutral
Type: BE-GTL20W.01
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: no
With Bus Coupling: yes
Number of Activation Points: 4
Number of Buttons: 2
Power Consumption: 0.3 W
With LED Display: yes
With Labeling Field: no
With Display: no
Material: Glass
Material Quality: other
Surface Protection: other
Surface Finish: glossy
Color: white
Transparent: no
With Room Thermostat: no
With Infrared Sensor: no
Protection Class (IP): IP20
Min. Depth of Device Box: 35 mm
MDT technologies Glastaster II Light 2-fold BE-GTL20W.01: additional details
KNX Glastaster II Light 2-fold, RGBW, White, Neutral.
Neutral version with 2 pairs of buttons / 4 sensor surfaces. Extensive application. The buttons can be freely configured as pairs or single buttons. Single and double button operation for switching, dimming, blinds, values. Switching between up to four values or scenes. Short/Long button press with 2 objects. Multi-tap function sends up to 4 values to the same or different objects. Innovative group control with long/extra long button press. Patched function with an additional switching channel. Four RGBW status LEDs. LED brightness controllable via day/night or brightness object. 4 logic blocks. Installation in switch box with supplied mounting ring. Dimensions (H x W): 92 x 92 mm. Integrated bus coupler. EAN: 4251916110451.
5. MDT Button
MDT technologies push-button 55 4-gang, pure white BE-TA5504.G2
Manufacturer: MDT technologies
Designation: Push-button 55 4-gang, pure white glossy
Type: BE-TA5504.G2
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without radio
Bidirectional: No
Mounting type: Flush-mounted
With anti-theft/disassembly protection: No
With bus coupling: Yes
Number of actuation points: 4
Number of buttons: 4
With LED display: No
With labelling field: Yes
With display: No
Material: Plastic
Material quality: Thermoplastic
Surface finish: Glossy
Colour: White
RAL number (similar): 9010
Transparent: No
With room thermostat: No
With infrared sensor: No
Protection class (IP): IP20
Min. depth of appliance box: 35 mm
Further details: Push-button 55 4-gang, pure white glossy. Version with 4 buttons. Suitable for 55 mm switch ranges such as GIRA Standard 55, E2, E22, Event, or BERKER S1, B3, B7, or JUNG A 500, A PLUS, A Creation, AS 500, A550, A FLOW, or MERTEN 1M, M-Smart, M-Plan, M-Pure. Centre title block with cover foil for individual labelling. The buttons can be customised as button pairs or individual buttons. One- and two-button operation for switching, dimming, blinds, values. Innovative group control with long/extra-long button press. Switch values/scenes with up to 4 values. Short/long button press with 2 objects. 4 logic blocks. Installation in switch box with supplied support ring. Integrated bus coupling unit.
6. MDT BE-TA55P4.G2
MDT Technologies Push-button Plus 55 Plus BE-TA55P4.G2
Manufacturer: MDT Technologies
Designation: Push-button Plus 55 Plus 4-gang, pure white glossy
Type: BE-TA55P4.G2
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without radio
Bidirectional: No
Mounting type: Flush-mounted
With anti-theft/disassembly protection: No
With bus coupling: Yes
Number of actuation points: 4
Number of buttons: 4
With LED display: Yes
With labelling field: Yes
With display: No
Material: Plastic
Material quality: Thermoplastic
Surface finish: Glossy
Colour: White
RAL number (similar): 9010
Transparent: No
With room thermostat: No
With infrared sensor: No
Protection class (IP): IP20
Min. depth of appliance box: 35 mm
Further details: Push-button Plus 55 4-gang, pure white glossy. Version with 4 buttons and LED for operation/status and orientation light. Suitable for 55 mm switch ranges such as GIRA Standard 55, E2, E22, Event, or BERKER S1, B3, B7, or JUNG A 500, A PLUS, A Creation, AS 500, A550, A FLOW, or MERTEN 1M, M-Smart, M-Plan, M-Pure. Centre title block with cover foil for individual labelling. The buttons can be customised as button pairs or individual buttons. One- and two-button operation for switching, dimming, blinds, and values. Innovative group control with long/extra-long button press. Switch values/scenes with up to 4 values. Short/long button press with 2 objects. 4 logic blocks. 4 operation/status LEDs (red/green) and orientation light can be controlled independently. Switch object for controlling the LED priority. Installation in switch box with supplied support ring. Integrated bus coupling unit.

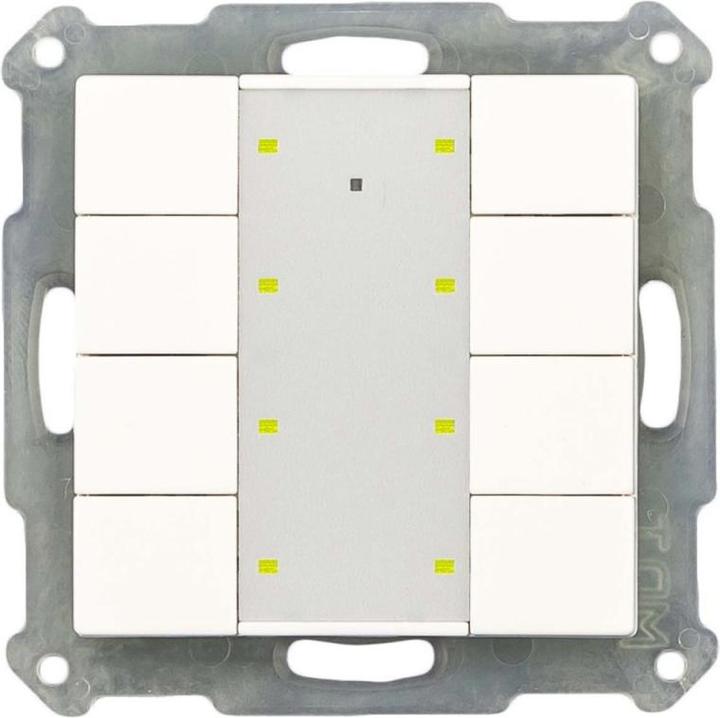

7. MDT BE-TA55P8.G2
MDT technologies Taster Plus 55 BE-TA55P8.G2
Manufacturer: MDT technologies
Description: Taster Plus 55 8-fold, Glossy Pure White
Type: BE-TA55P8.G2
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: no
With Bus Coupling: yes
Number of Actuation Points: 8
Number of Buttons: 8
Power Consumption: 0.3 W
With LED Display: yes
With Labeling Field: yes
With Display: no
Material: Plastic
Material Quality: Thermoplastic
Surface Finish: Glossy
Color: White
RAL Number (similar): 9010
Transparent: no
With Room Thermostat: no
With Infrared Sensor: no
Protection Class (IP): IP20
Minimum Depth of Device Box: 35 mm
MDT technologies Taster Plus 55 BE-TA55P8.G2: additional details
KNX Taster Plus 55 8-fold, Glossy Pure White. Version with 8 buttons and LEDs for operation/status and orientation light. Suitable for 55 mm switch programs, e.g., MDT Range 55 or GIRA Standard 55, E2, E22, Event, or BERKER S1, B3, B7 or JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure. Central labeling field with cover film for individual labeling. The buttons can be freely configured as button pairs or single buttons. Single and double button operation for switching, dimming, blinds, values. Innovative group control with long/extra-long button press. Switching between up to four values or scenes. Short/Long button press with 2 objects. 4 logic blocks. 8 operation/status LEDs (Red/Green) and orientation light can be controlled independently. Switching object to control LED priority. Installation in switch box with included mounting ring. Integrated bus coupler.
8. MDT RF-TA55A2.01 KNX RF+ radio push-button
MDT technologies KNX RF+ Wireless Switch Plus RF-TA55A2.01
Manufacturer: MDT technologies
Description: KNX RF+ Wireless Switch Plus 2-fold with actuator, pure white/glossy
Type: RF-TA55A2.01
Bus system KNX: no
Bus system KNX-RF: yes
Bus system Wireless Bus: no
Bus system LON: no
Bus system Powernet: no
Other bus systems: none
Bidirectional wireless: no
Mounting type: Flush-mounted
With theft/dismantling protection: no
With bus coupling: yes
Number of activation points: 2
Number of buttons: 2
Power consumption: 0.3 W
With LED display: yes
With labeling field: yes
With display: no
Material: Plastic
Material quality: Thermoplastic
Surface protection: other
Surface finish: glossy
Color: white
RAL number (similar): 9010
Transparent: no
With room thermostat: no
With infrared sensor: no
Protection class (IP): IP20
Min. depth of device box: 49 mm
Further details:
KNX RF+ Wireless Switch Plus 2-fold with actuator, 55 mm, pure white glossy. Version with 2 buttons and LEDs for operation/status indication and orientation light. Current max. 10 A at resistive load, 10 A at 14 µF / 2 electronic ballasts. For operation within the EU, 868 MHz. KNX RF+ protocol in system mode. Commissioning from ETS 5. Suitable for 55 mm switch programs. The buttons can be freely configured as a pair or individual buttons. Normally open and normally closed operation, adjustable button press duration. Values can be sent, forced guidance and switching commands adjustable. Short/long button press with 2 objects. Single and double button operation for dimmer/blind functions. Operates as a 2-fold switching actuator or 1-fold blind actuator. Connection via MDT KNX RF+ wireless line coupler. Central labeling field with cover film for individual labeling. As a replacement for conventional series switches. For modernization without laying KNX bus cables. Power supply 230 V AC. Installation in switch box with supplied mounting ring.
9. MDT MDTtechno. Push-button Light 55 2-fold RGBW,rws/glä BE-TAL5502.01
MDT technologies pushbutton light 55 2-fold BE-TAL5502.01
Manufacturer: MDT technologies
Designation: Pushbutton light 55 2-fold RGBW, pure white glossy, neutral
Type: BE-TAL5502.01
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Mounting type: Flush-mounted
With theft/dismantling protection: No
With bus coupling: Yes
Number of actuating points: 4
Number of push-buttons: 2
With LED display: Yes
With labelling field: No
With display: No
Material: Plastic
Material quality: Thermoplastic
Surface protection: Other
Surface finish: Glossy
Colour: White
RAL number (similar): 9010
Transparent: No
With room thermostat: No
With infrared sensor: No
Protection class (IP): IP20
Min. depth of device box: 35 mm
Further details:
Pushbutton light 55 2-fold, RGBW, pure white glossy, neutral. Neutral version with 2 push-button pairs / 4 push-button surfaces. Integrated bus coupling unit. Suitable for 55mm switch ranges such as GIRA Standard 55, E2, E22, Event, Esprit, BERKER S1, B3, B7, JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW, MERTEN 1M, M-Smart, M-Plan, M-Pure. The push-buttons are freely adjustable as push-button pairs or single push-buttons. One- and two-button operation for switching, dimming, blinds, and values. Switching values/scenes with up to 4 values. Short/long push-button operation with 2 objects. Innovative group control with long/extra long push-button action. New multiple tap function sends up to 4 values/DPTs to the same or different objects. Two RGBW status LEDs per button pair. LED brightness controllable via day/night or brightness object. 4 logic blocks. Integrated bus coupler. EAN: 4251916111045.

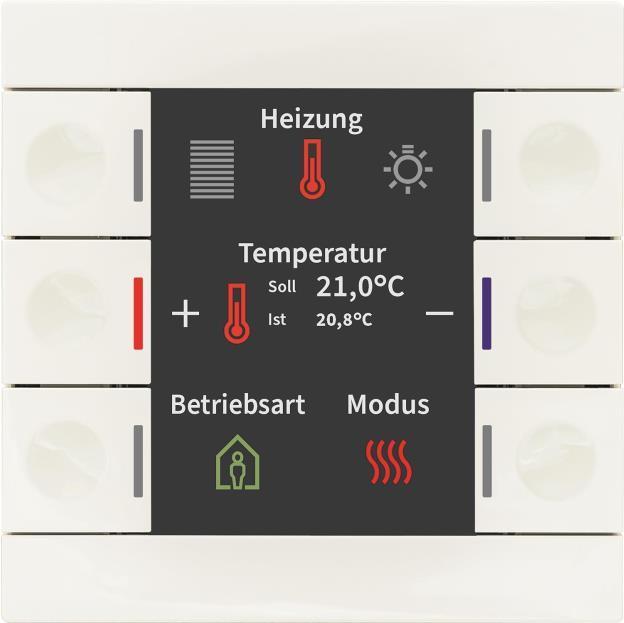

10. MDT BE-TAS86.02
KNX Smart 86 Push Button with Color Display, Plastic, Pure White Glossy. Design features mechanical buttons with finger grooves, a color display, and RGB status indicators. Usable as a 46812 multiple push button. Large active color display for function and status indication. Supports up to 12 functions or levels of 2x6 or 3x4 functions. Up to functions without level switching. Mapping function for easy function assignment. Touch function with an extended range of features. Innovative group control with long and extra-long button presses. Extended information display with up to values in rows. The buttons can be freely configured as button pairs or single buttons. Adjustable symbols and texts for each button/function. Display of status information in 1 Bit and messages in 14 Bytes. Single and double button operation for switching, dimming, blinds, and values. RGB status LEDs can be controlled individually per level. Displays indoor and outdoor temperature as well as time. Display brightness is automatically adjusted via a light sensor and day-night object. No additional power supply required. Recommended mounting height: 1.10 ... 1.25 m as a push button. Frameless installation in switch boxes. Dimensions H x W: 86 x 86 mm. Integrated bus coupler.
