Best Micropower products in the Battery charger category
On this page you'll find a ranking of the best Micropower products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Micropower PAC1600 24/60
Important features:
- Very compact design
- High efficiency
- Low weight
- Temperature- and power-controlled fan
- 4 adjustable charging curves
- Adjustable charging currents
- Fully automatic operation
- Reverse polarity protection
- Wide input voltage range
- LED status display
- Built-in PFC (Power Factor Corrector)
Technical data:
Input voltage: 50 to 255VAC
Input current: Max. 9A
Power factor: 1
Efficiency: >88%
Input current peak: <30A, cold start
Isolation: input to housing 1500VAC, input to output 3750VAC, output to housing 500VAC
Standards: EN55022B, EN60335-2-29+A2
Protection class: IP20
Dimensions: 267x135x85mm (with rubber protection)
Weight: 1.9kg (without cable)
Humidity: 0 to 95% non-condensing
Ambient temperature: -25°C to +40°C full power, +40°C to +70°C power reduction
Thanks to its high power density (high power with low weight), this charger is suitable for mounting on vehicles or other mobile equipment.
2. Micropower Robusto 24/80 CAN
The Robusto 24/80 CAN battery charger from Micropower is a powerful and reliable solution for charging 24V batteries. With a charging current of 80A, it offers efficient charging performance suitable for various applications. The robust design and high protection class IP65 ensure that the device is both dustproof and waterproof, making it ideal for use in demanding environments. The CAN interface allows for integration into a battery management system, facilitating the monitoring and control of the charging process. The charger comes with a CAN-Bus cable included and offers a variety of options for customization to meet specific requirements.
- High protection class IP65 for dust and water resistance
- CAN interface for integration into battery management systems
- Efficient efficiency of up to 93%
- Robust design for use in demanding environments
- Versatile customization options such as temperature compensation and digital inputs and outputs.
3. Micropower Robusto 36/53 IP54
Advantages: High protection class against dust and water, large number of adjustable charging curves, robust construction.
Technical data:

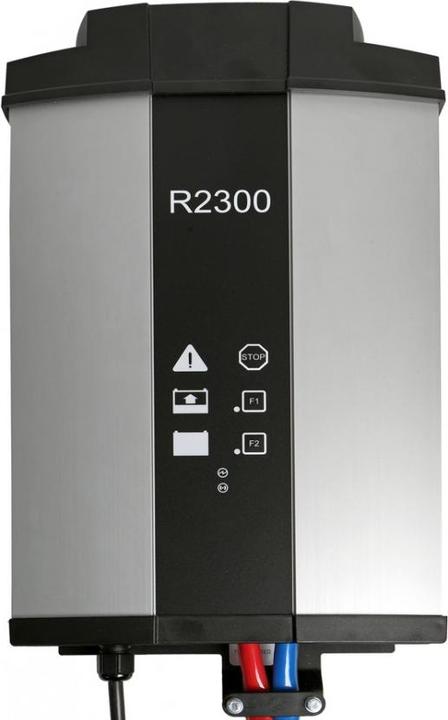

- Type: R2300
- Rated battery voltage: 36V
- Charging current: 53A
- Input voltage: 195 - 264VAC
- Input current: 0.99
- Protection factor: IP54 (optional IP65)
- Cooling: Fan
- Ambient temperature: -35 to +40°C full power; from +40 to 55°C power reduction
- Dimensions (LxWxH): 367 x 230 x 83mm
- Recommended battery capacity: 260Ah to 740Ah (C5)
Options:
- IP66 protection class
- Temperature and battery cable compensation
- CAN bus cable
- External LED
- Various digital inputs and outputs
- Immobiliser relay
- Water cooling
Operating instructions in English.
4. Micropower PAC800 12/50 AGM
Important features:
- Very compact design
- High efficiency
- Low weight
- Temperature and power-controlled fan
- Fully automatic operation
- Reverse polarity protected
- Wide input voltage range
- LED status display
- Built-in PFC (Power Factor Corrector)
Technical data:
- Rated battery voltage: 12V
- Output current: 50A
- Input voltage: 50 to 255VAC
- Input current: 4.5A
- Power: 800W
- Power factor: >0.98
- Efficiency: >86%
- Input current peak: <30A, cold start
- Protection class: IP20 (optional IP44)
- Dimensions: 220x112x73mm
- Weight: 1.5kg (without cable)
- Humidity: 0 to 95% non-condensing
- Ambient temperature: -25°C to +40°C full power, +40°C to +70°C power reduction
- Cooling fan: temperature controlled
- End of charge voltage:
- Full charge: 14.7V
- Voltage trickle charge: 13.8V
Thanks to its high power density (large power with small weight), this charger is suitable for mounting on vehicles or other mobile equipment.
5. Micropower Robusto 48/40 IP54
Advantages: High protection class against dust and water, large number of adjustable charging curves, robust construction.
Technical data:
- Type: R2300
- Rated battery voltage: 48V
- Charging current: 40A
- Input voltage: 195 - 264VAC
- Input current: 0.99
- Protection factor: IP54 (optional IP66)
- Cooling: Fan
- Ambient temperature: -35 to +40°C full power; from +40 to 55°C power reduction
- Dimensions (LxWxH): 367x230x83mm
- Recommended battery capacity: 200Ah to 560Ah (C5)
Options:
- IP66 protection class
- Temperature and battery cable compensation
- CAN bus cable
- External LED
- Various digital inputs and outputs
- Immobiliser relay
- Water cooling
Operating instructions in English.
6. Micropower Robusto 48/20 IP54
Advantages: High protection class against dust and water, fanless operation at high power, large number of adjustable charging curves, robust construction.
Technical data:
- Type: R1100
- Rated battery voltage: 48V
- Charging current: 20A
- Input voltage: 195 - 264VAC
- Input current: 0.99
- Protection factor: IP54 (optional IP66)
- Cooling: Convection
- Ambient temperature: -35 to +40°C full power, from +40 to 55°C power reduction
- Dimensions (LxWxH): 300x230x107mm
- Recommended battery capacity: 100Ah to 280Ah (C5)
Options:
- IP66 protection class
- Temperature and battery cable compensation
- CAN bus cable
- External LED
- Various digital inputs and outputs
- Immobiliser relay
- Water cooling
Operating instructions in English.
7. Micropower Robusto 36/22
The Robusto 36/22 battery charger from Micropower is a powerful and reliable solution for charging 36V batteries. With a charging current of 22A, it offers efficient charging performance suitable for various applications. Its robust design and high protection class IP54 (optional IP65) ensure strong resistance to dust and water, making the device ideal for use in demanding environments. The fanless operation ensures silent functioning, while the variety of adjustable charging curves allows for flexible adaptation to different battery types. The charger is designed for an ambient temperature range of -35 to +40°C and can operate at higher temperatures with reduced power output. With high efficiency of up to 93% and a low standby consumption of 4W, the Robusto 36/22 is an environmentally friendly choice.
- High protection class IP54 (optional IP65) for dust and water resistance
- Fanless operation for silent use
- Adjustable charging curves for various battery types
- Robust design for use in demanding environments
- High efficiency of up to 93% under optimal conditions.
