Best selling Actuators from Theben
On this page you’ll find a ranking of the best Actuators from Theben. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Theben DM 8-2 T KNX
The DM 8-2 T KNX from Theben is a versatile 8-channel dimming actuator designed for use in KNX-based smart home systems. With a maximum load of 8x200 W/VA, it allows for continuous dimming of various types of lamps, including incandescent bulbs, low-voltage and high-voltage halogen lamps, as well as dimmable energy-saving and LED retrofit lamps. The dimming actuator is housed in a compact rail-mounted enclosure, making it suitable for installation on a DIN rail. Thanks to different dimming curves, it can be tailored to the specific requirements of the connected lights. Additionally, it offers manual operation with preset dimming levels of 0, 25, 50, 75, and 100%, as well as a test function. The automatic load detection ensures optimal adaptation to the connected loads, simplifying installation and operation.
- Continuous dimming for various lamp types
- Automatic load detection for optimal adaptation
- Manual operation with preset dimming levels
- Suitable for controlling fans
- Compatible with KNX bus systems.
2. Theben Jm 8 T Knx
The Theben JM 8 T KNX is a highly advanced blind actuator specifically designed to control up to eight drives. This modular device allows for precise control of blinds, roller shutters, and awnings, and offers manual operation directly at the device. With a width of 8 TE, the actuator is suitable for mounting on a DIN rail and meets the requirements of modern building automation. The integrated slip correction ensures optimal adjustment of the drives, while the freely parameterizable functions allow for individual customization for various applications. The JM 8 T KNX is not only user-friendly but also robust, with an IP20 protection rating that qualifies it for indoor use.
- 8-fold drive control for blinds, roller shutters, and awnings
- Manual operation with push buttons and LEDs
- Freely parameterizable drives for individual adjustments
- Integrated slip correction for optimal performance
- Suitable for mounting on DIN rails.
3. Theben HM 12 T KNX
The Theben HM 12 T KNX heating actuator is a highly advanced modular device specifically designed for the efficient control of heating systems. With its 12 channels, it provides a flexible solution for regulating heating circuits in modern buildings. The actuator is equipped with 12 potential-free triac outputs that support an operating voltage of up to 250 V AC. This enables precise control for both continuous and switching actuators. The HM 12 T KNX is also capable of integrating boiler control and offers the option to control a circulation pump. In the event of a bus or telegram failure, the device features an emergency program that ensures reliable operation. The LED switching status indicator and the manual switch provide user-friendly operation and monitoring of the system.
- 12 channels for flexible heating control
- Potential-free triac outputs for versatile applications
- Integrated boiler control and circulation pump control
- Emergency program in case of bus or telegram failure
- LED switching status indicator for easy monitoring.
4. Theben RM 16 T KNX
Reg, 16/8-gang combi actuator 16 A 140 µF, KNX TP, flexible channel function selection as switching or blind actuator, inrush current max. 800 A/200 µs, max. 600 W LED/channel, LED switching status display for each channel, manual operation on the device (also without bus voltage), adjustable properties: e.g. switching, delay switching, pulse function, logic operations, contact type (normally closed/normally open) and participation in central commands such as permanent on, permanent off, central switching and save/recall scene, switching functions: e.g. on/off, pulse, on/off delay, staircase lighting with pre-warning, logical operations: e.g. disable, AND, enable, OR.
5. Theben LUXORliving D4
The LUXORliving D4 from Theben is a versatile 4-channel dimmer actuator specifically designed for smart home systems. With a maximum load of 4x 200 W/VA, it allows for the dimming of various types of lamps, including incandescent bulbs, low-voltage and high-voltage halogen lamps, as well as dimmable LED retrofit lamps. The dimmer actuator offers a dimming range of 0-100% and supports different dimming curves that enable stepless dimming. The automatic load detection can be optionally activated, making it easier to handle and adapt to various lighting scenarios. Additionally, the LUXORliving D4 provides manual operation with preset dimming levels of 0, 25, 50, 75, and 100%, as well as a test function that allows for easy installation verification. With its mounting on a DIN rail and an IP20 protection rating, it is ideal for use in residential and commercial spaces.
- Versatile compatibility with various lamp types
- Stepless dimming through different dimming curves
- Automatic load detection for easy handling
- Manual dimming levels for individual customization
- Easy mounting on DIN rail.

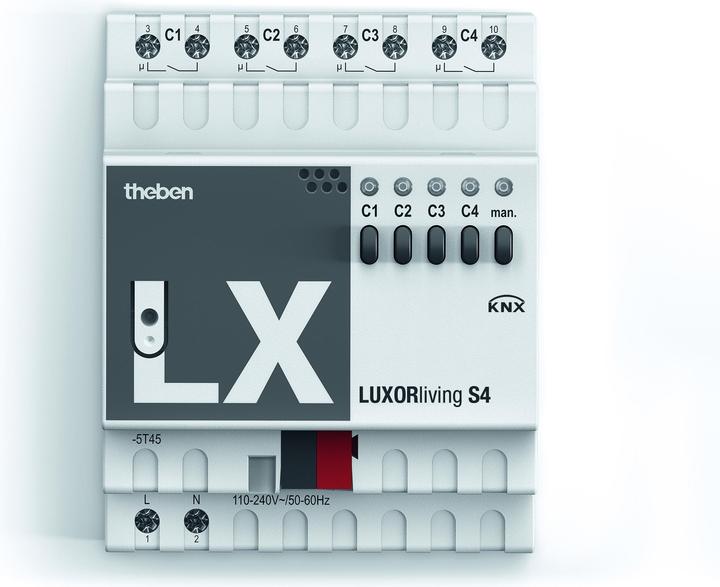

6. Theben LUXORliving S4
The LUXORliving S4 switching actuator from Theben is an innovative solution for modern smart home systems. Equipped with four switching channels, this actuator allows for precise control of electrical devices and lighting. The LED switching status indicator for each channel provides clear visual feedback on the current switching state. The manual switch with status display can also be used without bus voltage, enhancing flexibility and user-friendliness. The switching actuator supports various switching functions, including on/off and stair lighting with pre-warning, and allows participation in central commands such as permanent on and central switching. With a robust design for rail mounting and a high switching capacity of up to 2000 watts, the LUXORliving S4 is suitable for both private and commercial applications.
- LED switching status indicator for each channel
- Manual switch with status display also without bus voltage
- Supports central switching commands such as permanent on and central switching
- Maximum switching capacity of 2000 watts.

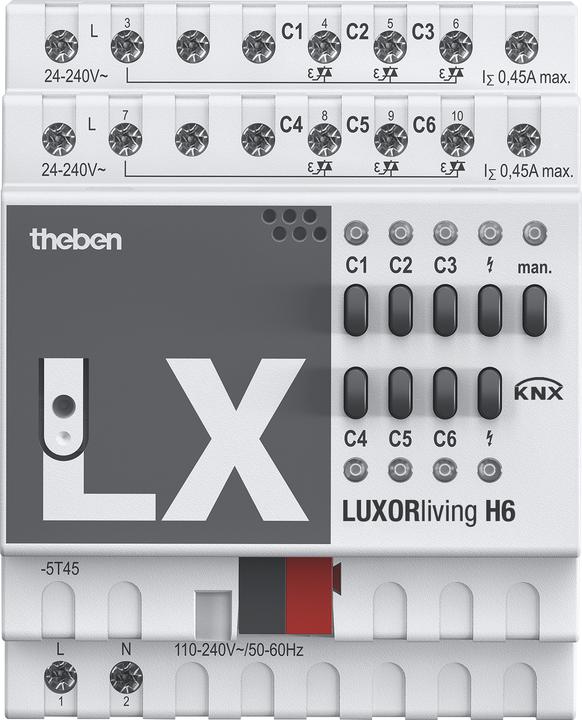

7. Theben LUXORliving H6
The LUXORliving H6 heating actuator from Theben is an advanced solution for heating control in modern smart home systems. With the ability to control up to six channels, this heating actuator offers a flexible and efficient way to manage the heating system. The potential-free triac outputs allow operation with a variety of heating systems, while the integrated emergency mode provides additional safety in case of bus or telegram failures. The LUXORliving H6 is easy to install and can be mounted effortlessly on a DIN rail. The LED switching status indicator and manual switch provide a user-friendly interface for monitoring and controlling the heating system. With its high operating voltage of up to 250 volts and a rated current of 0.45 amperes, this heating actuator is both powerful and reliable.
- Compatible with the LUXORliving smart home system
- Emergency mode in case of bus or telegram failure
- Summer operation and valve protection integrated
- Easy installation on DIN rail.

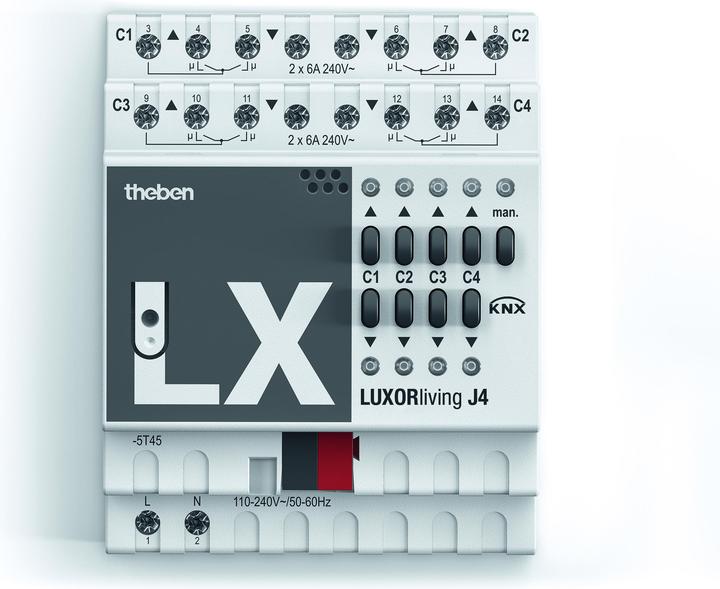

8. Theben LUXORliving J4
Jalousie actuator for the LUXORliving smart home system, 4-channel drive control, relay outputs for drives, e.g., for blinds, roller shutters, awnings, manual operation at the device, slip correction, drive freely parameterizable, hand switch AUFAB and LEDs, LUXORliving J4 contact.
9. Theben LUXORliving J8
Jalousie actuator for the LUXORliving smart home system, 8-channel drive control, relay outputs for drives, e.g., for blinds, roller shutters, awnings, manual operation at the device, slip correction, drive freely parameterizable, hand switch AUFAB and LEDs, LUXORliving J8 contact.
10. Theben Du 1 Dali Knx
Flush-mounted 1-fold DALI actuator, KNX TP, Data Secure, DALI-2-certified, Interface between the DALI and KNX bus systems, Simple commissioning of up to 30 ECGs in broadcast mode, Control of RGB, RGBW, Tunable White or conventional luminaires, Support of DT-8 luminaires, Simple replacement of ECGs in the event of a fault, Universal installation thanks to particularly compact housing, 2 binary inputs for potential-free contacts such as push-buttons, switches, window contacts, temperature sensor (input I2), The binary input I1 is assigned to the output at the factory (function test without programming).2 binary inputs for potential-free contacts such as push-buttons, switches, window contacts, temperature sensor (input I2), Binary input I1 is assigned to the output ex works (function test and operation even without programming), Integrated temperature monitoring.
