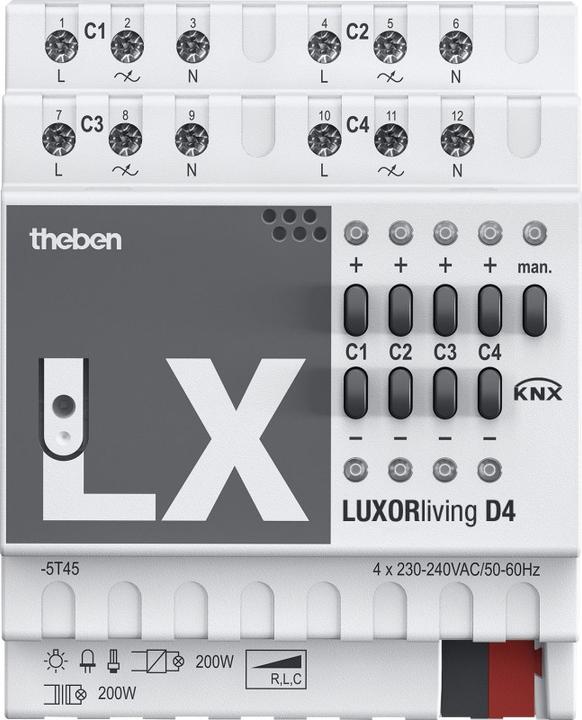

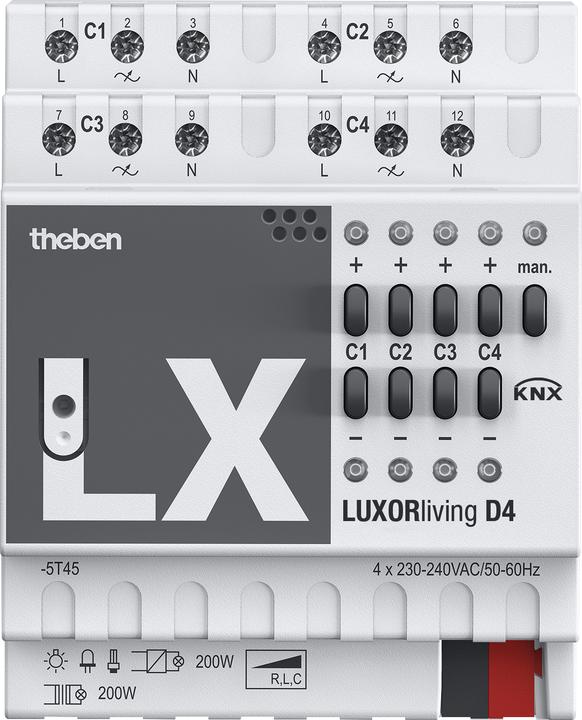

The LUXORliving D4 from Theben is a versatile 4-channel dimmer actuator specifically designed for smart home systems. With a maximum load of 4x 200 W/VA, it allows for dimming a variety of lamp types, including incandescent bulbs, low-voltage and high-voltage halogen lamps, as well as dimmable LED retrofit lamps. The dimmer actuator offers a dimming range of 0-100% and supports different dimming curves, enabling smooth dimming. The automatic load detection can be optionally activated, making it easier to handle and adapt to various lighting scenarios. Additionally, the LUXORliving D4 provides manual operation with preset dimming levels of 0, 25, 50, 75, and 100%, as well as a test function for easy installation verification. With its mounting on a DIN rail and an IP20 protection rating, it is ideal for use in residential and commercial spaces.
Actuator type | Dimming actuator |
Items per sales unit | 1 x |
Mounting type | Top-hat rail |
Documents | |
Item number | 17933810 |
Actuator type | Dimming actuator |
Max. Switching capacity | 200 W |
Operating voltage | 230 V |
Number of switching outputs | 4 x |
Mounting type | Top-hat rail |
Protection type (IP code) | IP20 |
Smart Home | Compatible |
Radio frequency | 50 Hz |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Width | 4 mm |
Length | 10.50 cm |
Width | 8.30 cm |
Height | 8.20 cm |
Weight | 264 g |
