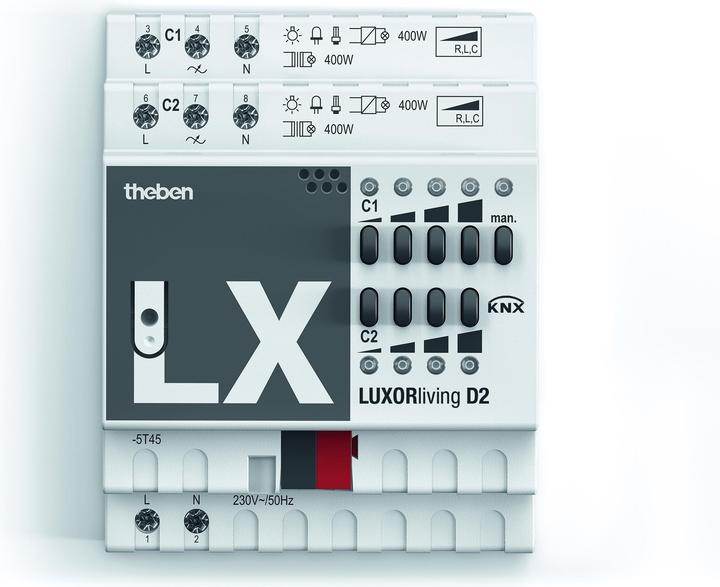

Theben LUXORliving D2
Dimming actuatorDelivered between Thu, 30.4. and Tue, 12.5.
free shipping
Number of switching outputs2
Product details
The LUXORliving D2 from Theben is a versatile universal dimmer actuator specifically designed for smart home systems. With the ability to control two separate lighting circuits, this dimmer actuator offers a maximum load of 2x 400 W/VA. It allows for dimming a variety of lamp types, including incandescent bulbs, low-voltage and high-voltage halogen lamps, as well as dimmable energy-saving and LED retrofit lamps. The dimmer supports a dimming range of 0-100% and offers different dimming curves that enable seamless dimming of all types of lamps. The automatic load detection ensures user-friendly handling, while manual operation is available in four steps (0, 25, 50, 75, and 100%) along with a test function for added flexibility.
- Compatible with various lamp types, including LED and halogen
- Automatic load detection for easy use
- Manual dimming levels from 0 to 100% available
- Mountable on DIN rail for easy installation
- Protection class IP20 for indoor use.
Actuator type | Dimming actuator |
Operating voltage | 230 V |
Mounting type | Top-hat rail |
Smart Home Protocol | KNX |
Items per sales unit | 1x |
Documents | Technical data sheet.pdf |
Item number | 32453682 |
Manufacturer | Theben |
Category | Actuator |
Manufacturer no. | 4800470 |
Release date | 16.1.2023 |
Actuator type | Dimming actuator |
Max. Switching capacity | 400 W |
Operating voltage | 230 V |
Number of switching outputs | 2x |
Mounting type | Top-hat rail |
Protection type (IP code) | IP20 |
Smart home | Compatible |
Smart Home Protocol | KNX |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂ emissions | 16.89 kg |
Climate contribution | CHF 0.40 |
Items per sales unit | 1x |
