Theben DM 8-2 T KNX
Dimming actuatorOnly 2 items in stock at supplier
Product details

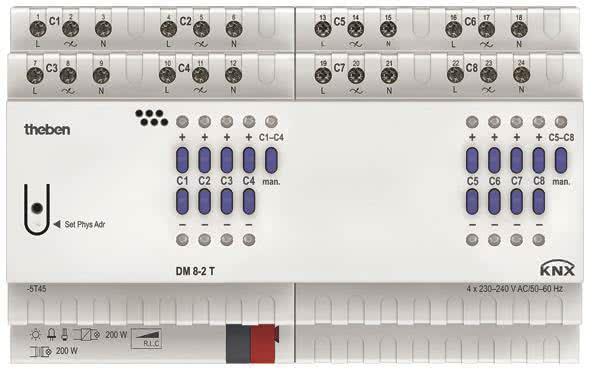

The DM 8-2 T KNX from Theben is a versatile 8-channel dimming actuator designed for use in KNX-based smart home systems. With a maximum load of 8x200 W/VA, it allows for continuous dimming of various types of lamps, including incandescent bulbs, low-voltage and high-voltage halogen lamps, as well as dimmable energy-saving and LED retrofit lamps. The dimming actuator is housed in a compact rail-mounted enclosure, making it suitable for installation on a DIN rail. Thanks to different dimming curves, it can be tailored to the specific requirements of the connected lights. Additionally, it offers manual operation with preset dimming levels of 0, 25, 50, 75, and 100%, as well as a test function. The automatic load detection ensures optimal adaptation to the connected loads, simplifying installation and operation.
- Continuous dimming for various lamp types
- Automatic load detection for optimal adaptation
- Manual operation with preset dimming levels
- Suitable for controlling fans
- Compatible with KNX bus systems.
Actuator type | Dimming actuator |
mounting style | Top-hat rail |
Items per sales unit | 1 x |
Documents | |
Item number | 21519810 |
Actuator type | Dimming actuator |
Max. Switching capacity | 200 W |
Operating voltage | 240 V |
Number of switching outputs | 8 x |
mounting style | Top-hat rail |
Protection type (IP code) | IP20 |
Smart Home | Not compatible |
Radio frequency | 60 Hz |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 0.16 m |
Width | 0.11 m |
Height | 0.08 m |
Weight | 480 g |
Length | 16 cm |
Width | 10 cm |
Height | 8 cm |
Weight | 100 g |
