Best BEG products in the Actuator category
On this page you'll find a ranking of the best BEG products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

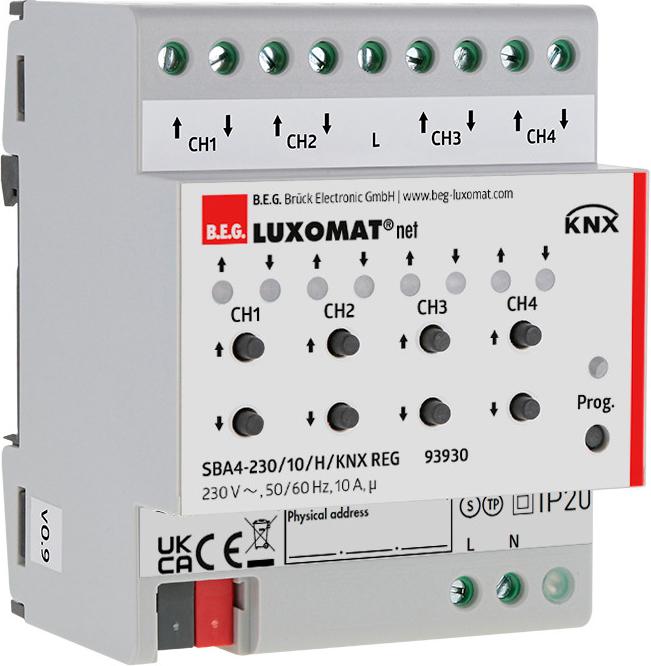

1. BEG SBA4-230/10/H/KNX REG Series installation-
BEG Brück Electronic Blinds Actuator SBA4-230/10HKNXREGws
Manufacturer: BEG Brück Electronic
Designation: Blinds Actuator
Type: SBA4-230/10HKNXREGws
Bus System KNX: yes
Mounting Type: REG
Max. Number of Blind Outputs: 4
Power Type: AC
The KNX SBA blinds actuators receive KNX/EIB telegrams and control multiple blind drives with end position switches independently. Each channel is switched via two monostable relays and can also be manually operated using buttons on the actuator. Each channel is individually programmable via ETS 3 and 4. Options include status feedback, blocking functions, central switching functions, as well as extensive calibration and positioning functions. The relay switching positions can be individually programmed for each channel in the event of a bus voltage failure or recovery. The device is designed for fixed installation on a DIN rail in high voltage distributions. Installation must be carried out in dry indoor environments.

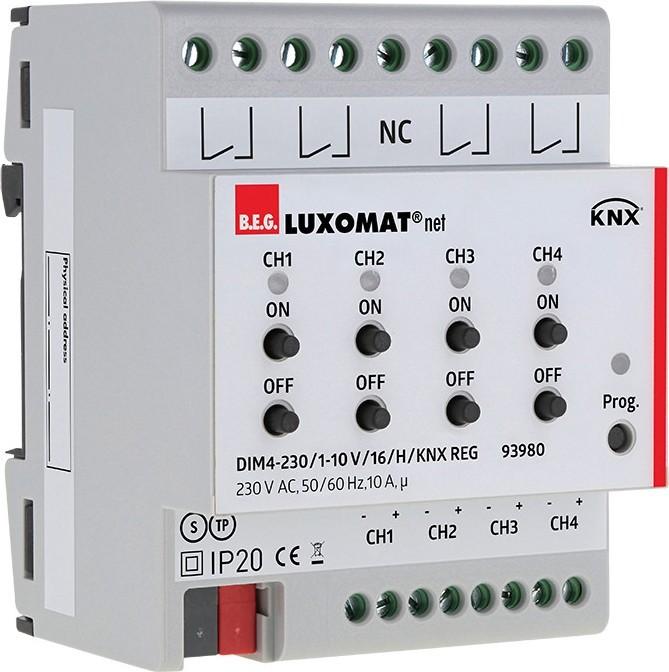

2. BEG B.E.G. DIM4-230/1-10V16HKNX
BEG Brück Electronic Dimmer Actuator 93980
Manufacturer: BEG Brück Electronic
Designation: Dimmer Actuator
Type: 93980
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 4
With Bus Coupling: yes
Substation Input: no
Local/Manual Operation: yes
With LED Display: yes
1-10 V Interface: yes
Max. Switching Current (resistive load): 16 A
Max. Switching Power: 2700 W
Number of Outputs: 4
Max. Control Current: 30 mA
Protection Class (IP): IP20
Min. Depth of Device Box: 0 mm
The KNX CD-4C dimmer actuator is designed for switching and dimming fluorescent lamps with 1-10V electronic ballasts. The voltage is applied to the electronic ballasts via the device's relays. The control of the lights is achieved through the 1-10V voltage supplied by the electronic ballasts. The device is equipped with short-circuit and temperature protection, as well as a lamp-friendly soft start. It is intended for fixed installation on a DIN rail in high-voltage distributions. Installation must be carried out in dry indoor environments.
3. BEG B.E.G. SA4 - 230 / 16 / H / Switch actuator for switching loads SA423016H
The B.E.G. SA4 - 230 / 16 / H switching actuator is a highly developed KNX rail-mounted device specifically designed for controlling consumers. With a width of 4 TE, it is ideal for installation on a DIN rail (TH 35 according to EN 60715) in the distribution board. The switching actuator offers four independent, potential-free relay contacts optimized for capacitive loads, enabling reliable control of electrical devices. A standout feature is the ability to use manual switches to perform manual switching even without bus voltage. The actuator is powered directly via the KNX bus, eliminating the need for an additional power supply. The connection of the outputs is made via screw terminals, ensuring easy installation and maintenance.
- Optimized for capacitive loads
- Manual switching possible without bus voltage
- Direct power supply via the KNX bus
- Easy installation with screw terminal connections.
Actuator
CHF309.–
BEG B.E.G. SA4 - 230 / 16 / H / Switch actuator for switching loads SA423016H
Switch actuator
