BEG SBA4-230/10/H/KNX REG Series installation-

BEG Brück Electronic Blinds Actuator SBA4-230/10HKNXREGws

Manufacturer: BEG Brück Electronic
Designation: Blinds Actuator
Type: SBA4-230/10HKNXREGws
Bus System KNX: yes
Mounting Type: REG
Max. Number of Blind Outputs: 4
Power Type: AC

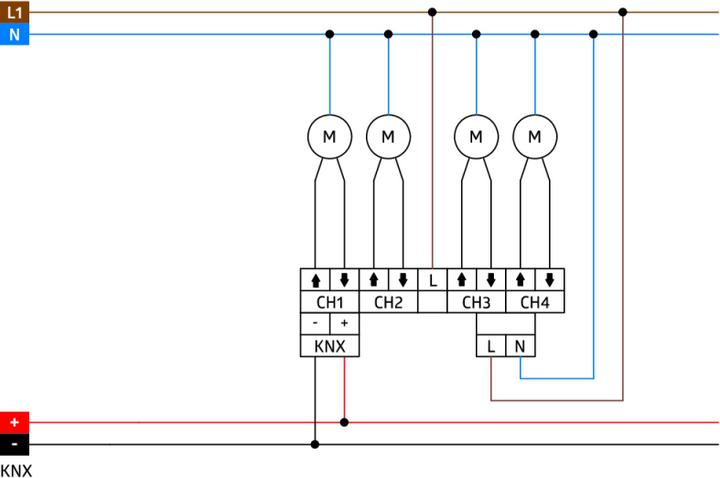

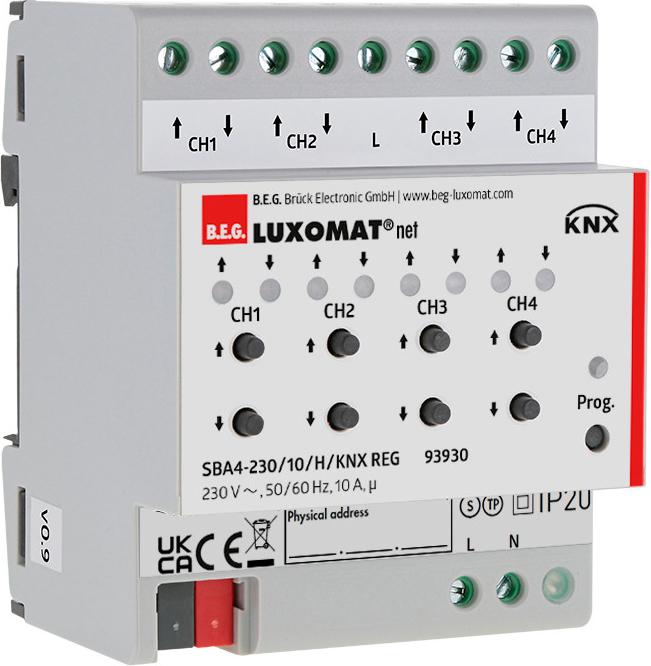

The KNX SBA blinds actuators receive KNX/EIB telegrams and control multiple blind drives with end position switches independently. Each channel is switched via two monostable relays and can also be manually operated using buttons on the actuator. Each channel is individually programmable via ETS 3 and 4. Options include status feedback, blocking functions, central switching functions, as well as extensive calibration and positioning functions. The relay switching positions can be individually programmed for each channel in the event of a bus voltage failure or recovery. The device is designed for fixed installation on a DIN rail in high voltage distributions. Installation must be carried out in dry indoor environments.
