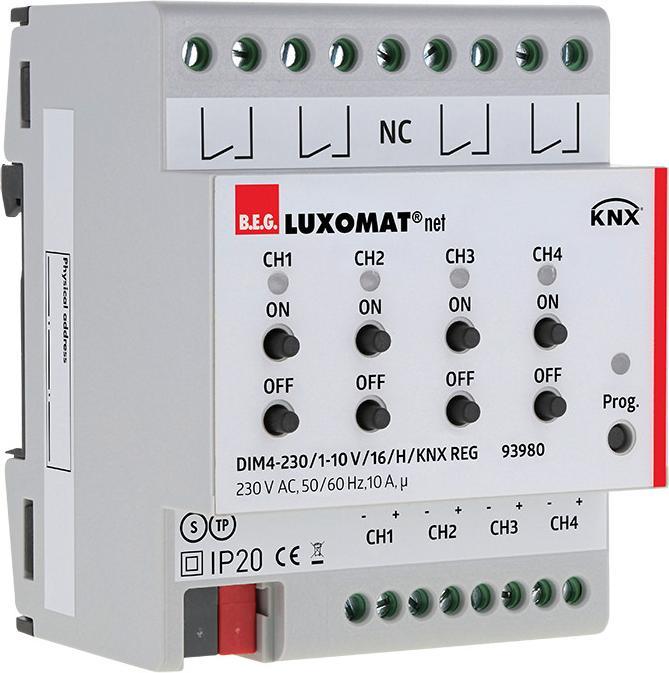

BEG B.E.G. DIM4-230/1-10V16HKNX

BEG Brück Electronic Dimmer Actuator 93980

Manufacturer: BEG Brück Electronic
Designation: Dimmer Actuator
Type: 93980
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 4
With Bus Coupling: yes
Substation Input: no
Local/Manual Operation: yes
With LED Display: yes
1-10 V Interface: yes
Max. Switching Current (resistive load): 16 A
Max. Switching Power: 2700 W
Number of Outputs: 4
Max. Control Current: 30 mA
Protection Class (IP): IP20
Min. Depth of Device Box: 0 mm

The KNX CD-4C dimmer actuator is designed for switching and dimming fluorescent lamps with 1-10V electronic ballasts. The voltage is applied to the electronic ballasts via the device's relays. The control of the lights is achieved through the 1-10V voltage supplied by the electronic ballasts. The device is equipped with short-circuit and temperature protection, as well as a lamp-friendly soft start. It is intended for fixed installation on a DIN rail in high-voltage distributions. Installation must be carried out in dry indoor environments.
